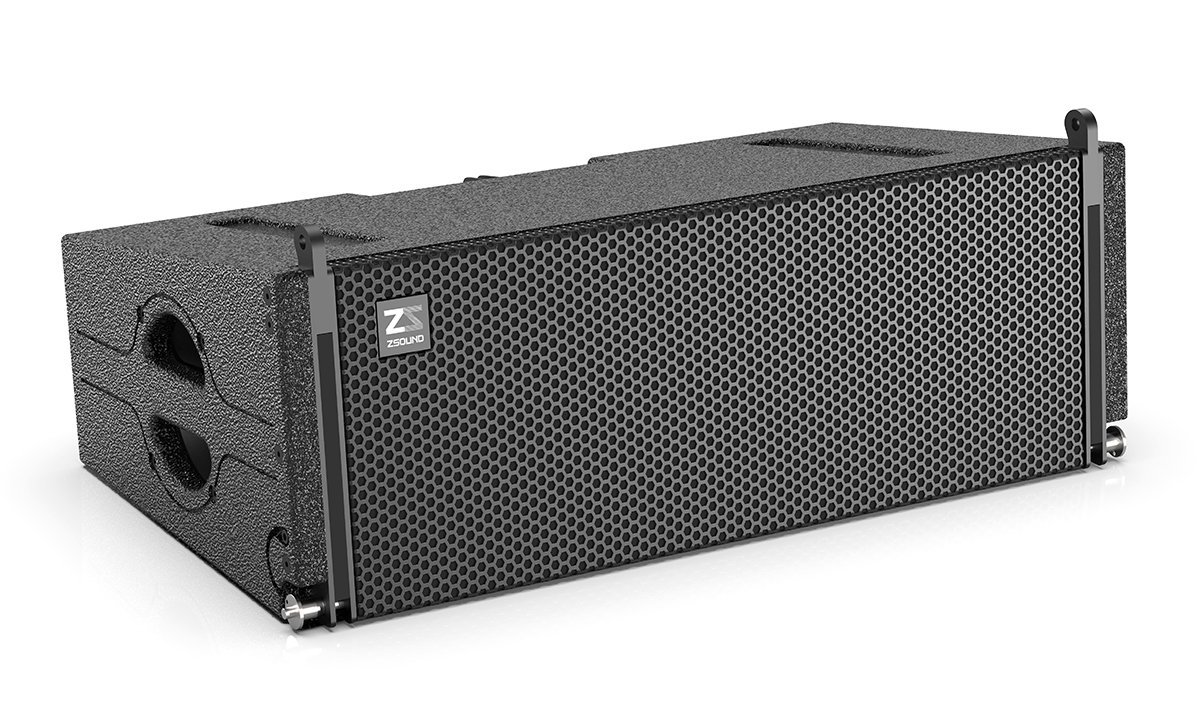

ZSOUND LA208P-III: The Ultimate Precise Active Line Array Speaker for Touring Excellence

In the fast-paced world of Professional Line Array Speaker, the time between “load-in” and “sound check” is often razor-thin. For many rental companies and venue managers, the complexity of matching external power amplifiers to speakers is a hurdle they can no longer afford. The ZSOUND LA208P-III is engineered as a definitive Active line array speaker (a vertical stack of loudspeaker modules with built-in power amplifiers designed to project sound consistently over long distances), providing a surgical balance between high-pressure output and “plug-and-play” simplicity.

Following ZSOUND’s “listening and thinking” philosophy, the LA208P-III is designed to provide an intimate listening experience even in large, reverberant spaces like theaters and house of worship installations. By integrating the power and processing directly into the cabinet, this active line array speaker ensures that every seat in the house receives a pristine tonal balance without the need for massive racks of external gear.

Integrated 1000W Power and Intelligent DSP Control

The core advantage of an active line array speaker is its self-contained efficiency. Think of it like a modern laptop where the processor, screen, and keyboard are perfectly matched, rather than an old desktop computer with separate towers and tangled cables. The LA208P-III features a built-in Class D amplifier delivering 2x500W at 4 ohms. This internal power engine is paired with advanced DSP (Digital Signal Processing—a computer chip that fine-tunes the audio signal for the specific speaker model), allowing technicians to optimize the frequency response for different venue architectures.

This level of control allows the system to achieve a Maximum SPL (Sound Pressure Level—the technical measurement of how loud a speaker can get) of 135dB peak. This ensures that your audio remains natural and uncompressed even during high-energy musical peaks. When these speakers are synchronized with professional venue visual solutions, the resulting environment is auditorily and visually stunning, keeping the audience’s attention exactly where it belongs: on the stage.

Professional Driver Engineering and Baltic Birch Durability

What sets this active line array speaker apart from entry-level self-powered gear is the quality of its components. The cabinet houses two 8-inch LF (low-frequency—the driver responsible for “thump” and mid-bass) ferrite woofers with 50mm voice coils and one 3-inch HF (high-frequency—the unit that produces crisp treble and vocal clarity) compression driver. These drivers are mounted in a rugged enclosure constructed from 15mm and 18mm Baltic birch plywood (a high-density, multi-layered wood preferred by acoustic engineers for its extreme structural strength and lack of unwanted resonance).

To protect the investment during the rigors of the road, the cabinet is finished with Black Polyurea paintings (a rugged, waterproof protective coating that is virtually indestructible). The inclusion of a black epoxy mesh grille with acoustically reticulated cloth (a specialized foam that allows sound through while blocking dust and humidity) ensures the internal electronics and drivers remain safe during outdoor festivals or humid indoor events. Choosing this active line array speaker means investing in a solution that values long-term reliability as much as immediate acoustic power.

Precise Three-Point Rigging and System Integration

The success of any professional audio deployment depends on how accurately the sound can be directed toward the listeners. The LA208P-III utilizes a three-points rigging (the mechanical hardware used to hang and angle speakers in the air) system, allowing for fast and secure installation. Sound engineers can adjust the splay angles (the specific angle between each speaker box in the stack) to “contour” the sound beam to match the raked seating of a theater or the flat floor of a ballroom, preventing energy from being wasted on the ceiling.

Despite its built-in amplification, this active line array speaker remains remarkably manageable at 27kg. For a complete full-range experience, we recommend pairing the LA208P-III with our dedicated subwoofers. Because the system is self-powered, it utilizes NEUTRIK POWERCON and XLR connections for seamless signal and power linking between modules. By choosing ZSOUND, you are opting for an active line array speaker system that prioritizes technician safety, logistical efficiency, and listener intimacy in every configuration.

Frequently Asked Questions About the LA208P-III

What is the benefit of an active system over a passive one? An active line array speaker like the LA208P-III has the amplifier and DSP built-in. This eliminates the need for external amplifier racks, reduces cable clutter, and ensures the drivers are always protected by factory-tuned limiters and crossovers.

How many LA208P-III modules can I fly in a single array? For most medium-sized theaters, a cluster of 4 to 8 modules per side is recommended. Our technical team can provide EASE focus simulations to determine the exact quantity and angles needed for your specific room.

Can I use the LA208P-III outdoors? While the Black Polyurea finish and reticulated cloth provide excellent humidity resistance, active speakers contain sensitive electronics. We recommend using weather-protection covers or a roofed stage for permanent outdoor use in direct rain.
