Powerful Dual 15-Inch Professional Speaker
V215 Dual 15 inch point source speaker
Applications
- Theatre
- Outdoor
- Small show
Feature
- 75mm Large-size HF driver
- High power and short loss crossover
- Powerful low-frequency
Technical Specification
| Parameter Name | Parameter Value |
|---|---|
| FREQUENCY RESPONSE | 45Hz-16kHz (±3dB), 35Hz-18kHz (-10dB) |
| NOMINAL COVERAGE | 60°(H) x 90°(V) |
| SENSITIVITY (@1W/1M) | 98 dB |
| POWER RATING (AES) | 980W |
| NOMINAL IMPEDANCE | 8 ohm |
| MAXIMUM SPL | 133 dB SPL (peak) |
| DRIVERS | HF: 1×3″ (75mm voice coil) compression driverLF: 2×15″ (75mm voice coil) subwoofer |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| Dimensions (H×W×D) | 1200 x 506 x 470 mm / 47”x20”x19” |
| WEIGHT | 46 kg / 101 lbs |
| CONNECTORS | 2 x Neutrik NL4MP connectors |
| SPEAKER CABLES | 1+1- |
| MATERIALS | 15mm, 18mm oaken plywood |
| FINISH | Black polyurea paintings |
| GRILLE | Black epoxy mesh grille |

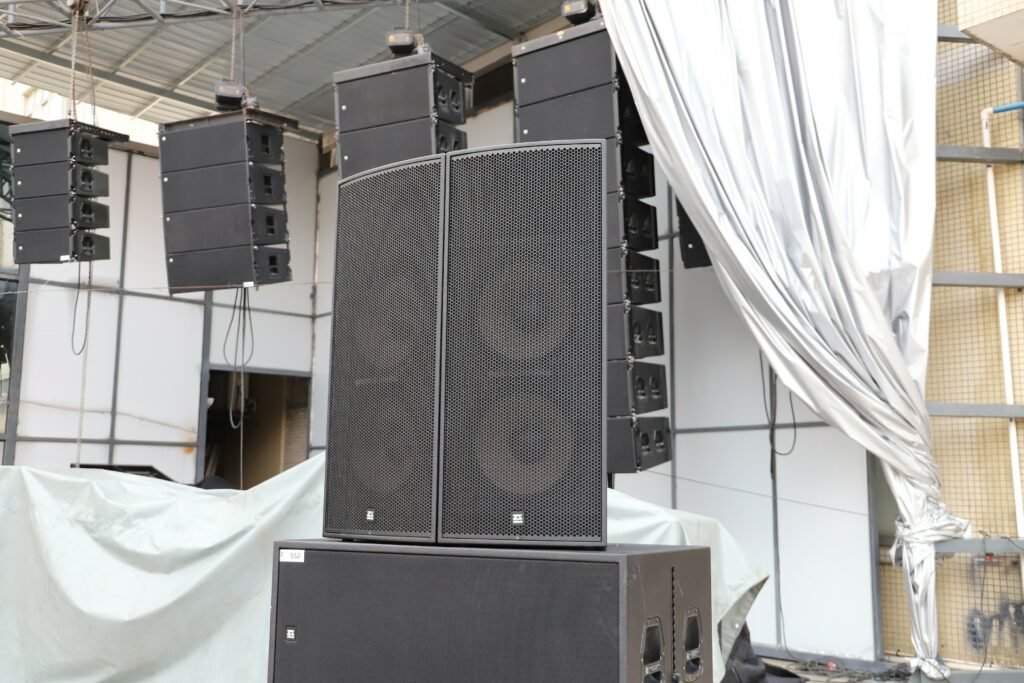

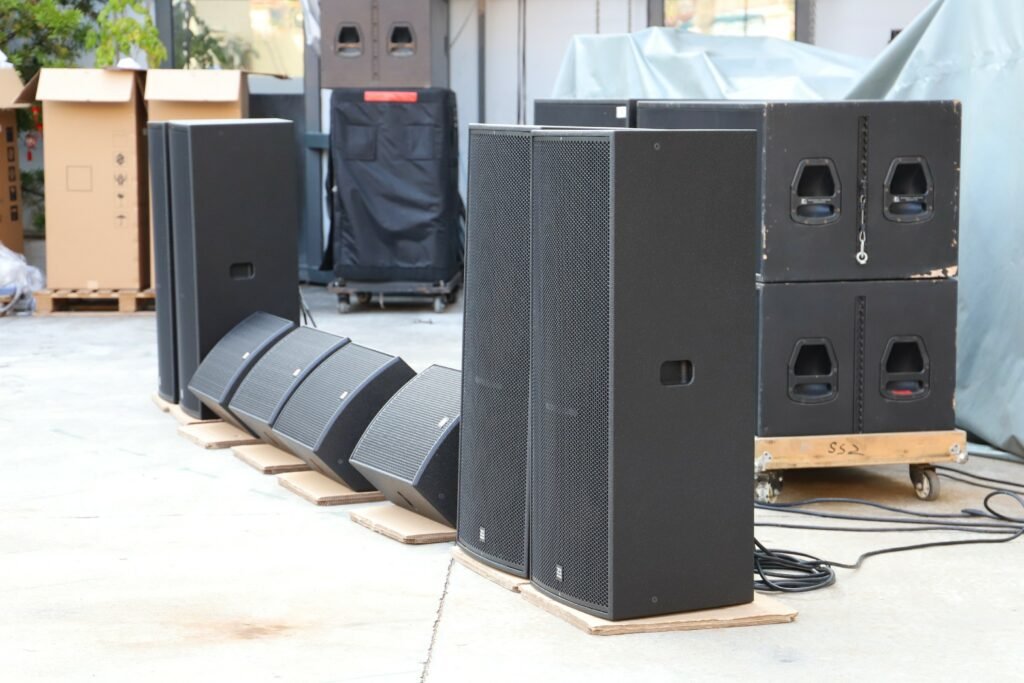

V215 SS2 sound check
ZSOUND V215 | The Definitive Powerful Dual 15-Inch Professional Speaker
When managing a large-scale entertainment venue, such as a high-end nightclub, a concert hall, or a massive multi-function ballroom, the demand for “Sound Pressure Level” (SPL, a scientific measurement of how loud and impactful the sound is at a specific distance) is immense. The ZSOUND V215 is engineered to meet these extreme requirements, serving as a Powerful Dual 15-Inch Professional Speaker (a large-format loudspeaker featuring two 15-inch drivers in a single cabinet for maximum output). This system provides the raw energy needed to fill expansive spaces without the complexity of a full-scale touring rig.
Massive LF Drivers for Deep, Impactful Bass
The defining characteristic of this Powerful Dual 15-Inch Professional Speaker is its “Low-Frequency (LF) Driver” configuration. By housing two 15-inch woofers with 3-inch “Voice Coils” (the wire coils that receive the electrical signal and move the speaker cone to create sound), the V215 can move a significant volume of air. This results in a “Frequency Response” (the specific range of sounds from deep bass to high treble that a speaker can accurately reproduce) that extends down to 45Hz.
In many mid-to-large venues, this natural low-end extension allows the V215 to provide a full, rich musical foundation even before adding subwoofers. The dual-driver design essentially doubles the surface area of a standard speaker, creating a “Punch” that can be felt by the audience, making it ideal for bass-heavy music genres or high-impact corporate presentations. To complement this intense sonic energy, many installers pair our systems with expert stage effect lighting to create a fully immersive sensory environment.
Precision Highs and Wide Dispersion
While the dual 15-inch drivers handle the heavy lifting of the low end, the high frequencies are managed by a 3-inch “Compression Driver” (a specialized component that produces high-pitched sounds and pushes them through a horn with extreme efficiency). This driver is mounted to a large horn that ensures a consistent “Coverage Pattern” (the specific area where the sound is heard most clearly), allowing the audio to reach the back of the room with “Acoustic Intelligence” (the clarity and understandability of speech and music).
With a “Sensitivity” of 102dB (a measure of how effectively the speaker converts amplifier power into volume), the V215 remains bright and clear even at extreme volumes. While many smaller venues might opt for a standard point source speaker, the V215 is the go-to choice for designers who need massive output and wide-angle coverage from a single, stationary unit. This combination of dual-woofer power and high-frequency precision ensures that every seat in the house receives a balanced audio experience.
Touring-Grade Construction for Permanent Installation
A Powerful Dual 15-Inch Professional Speaker must be as durable as it is loud. The V215 cabinet is constructed from high-quality 15mm and 18mm “Multi-Plywood” (a high-grade wood material favored for its superior strength and natural “Damping” properties, which prevent the cabinet from vibrating and adding unwanted noise to the music). This heavy-duty construction ensures the cabinet remains rigid even when the system is reaching its continuous “Maximum SPL” of 128dB.
The exterior is finished with “Black Polyurea Painting,” an industrial-grade coating that protects the wood from humidity, scratches, and impact. For installation flexibility, the V215 includes multiple “Rigging” points (reinforced threaded holes used for safely hanging the speaker from a ceiling or a metal truss). Whether it is being flown above a dance floor or used as a primary “Front-of-House” system (the main speakers that face the audience), the ZSOUND V215 is the Powerful Dual 15-Inch Professional Speaker built for professionals who refuse to compromise on power, reliability, and sonic detail.
-

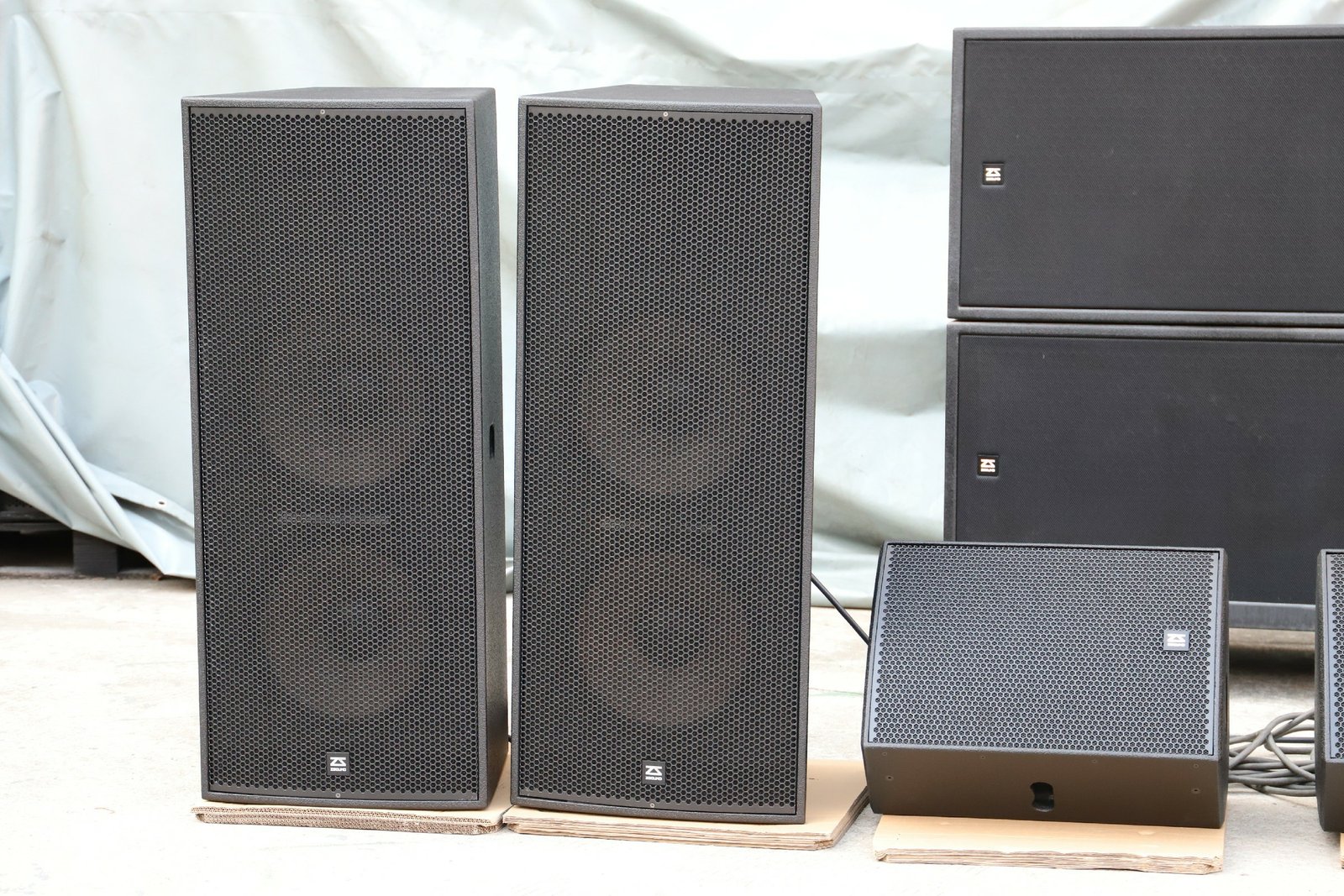

V215 Dual 15 inch point source speaker
Powerful Dual 15-Inch Professional Speaker Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 45Hz-16kHz (±3dB), 35Hz-18kHz (-10dB) NOMINAL COVERAGE 60°(H) x 90°(V) SENSITIVITY (@1W/1M) 98 dB POWER RATING (AES) 980W NOMINAL IMPEDANCE 8 ohm MAXIMUM SPL 133 dB SPL (peak) DRIVERS HF: 1×3″ (75mm voice coil) compression driverLF: 2×15″ (75mm voice coil) subwoofer […]
-

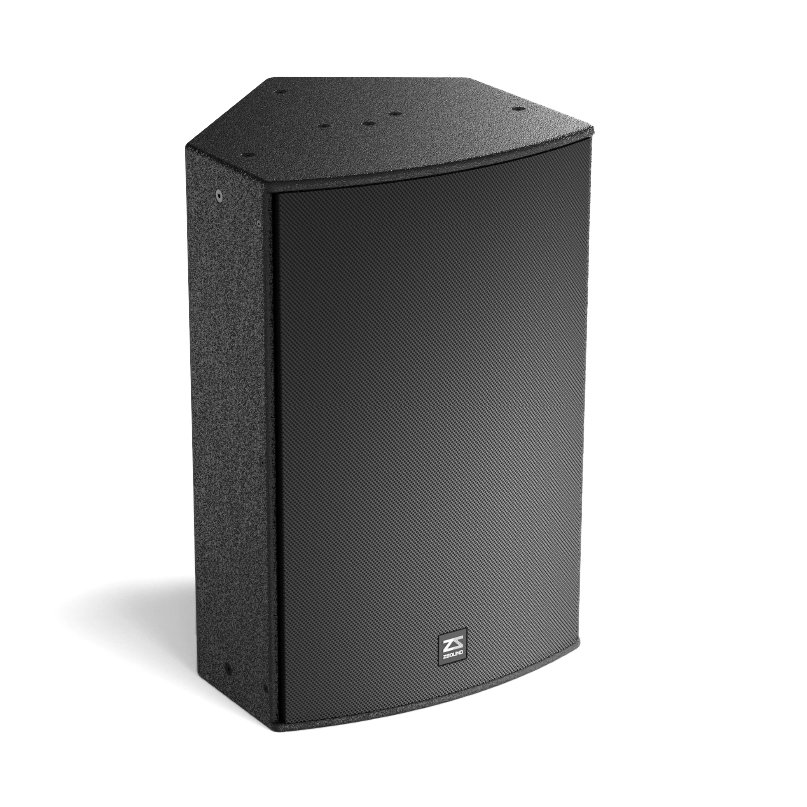

R15P-III 15 inch point source speaker
