Versatile 15-Inch Point Source Speaker: Powerful Audio

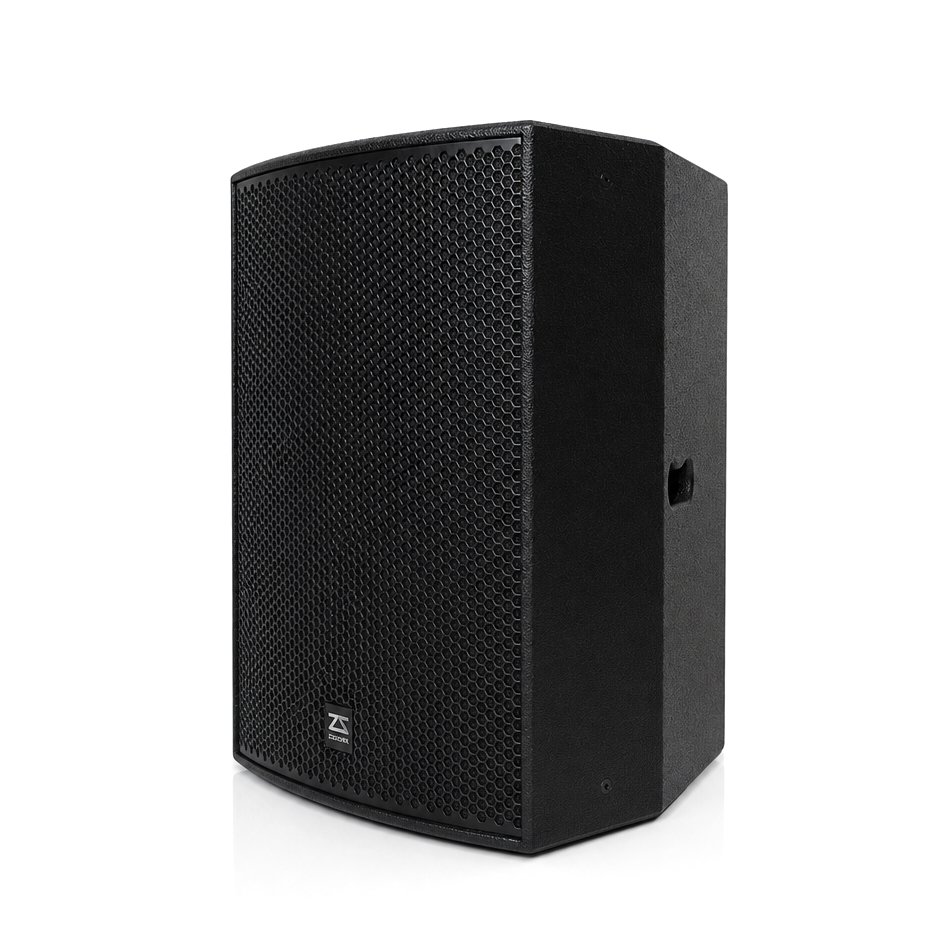

CP15 15 inch point source speaker
Applications
- Conference room
- Church
- Fill system
Feature
- 75mm HF compression driver
- Low frequency response extend to 50Hz
- Excellent vocal performance
Technical Specification
| Parameter Name | Parameter Value |
|---|---|
| Frequency Response | 60 Hz ~ 16 kHz (±3dB), 50 Hz ~ 18 kHz (-10dB) |
| SENSITIVITY (@1w/1m) | 103 dB SPL |
| POWER RATING (AES) | 500W |
| NOMINAL IMPEDANCE | 8 ohm |
| MAXIMUM SPL | 130 dB SPL, 136 dB SPL peak |
| DRIVERS | LF: 1×15″ (75mm voice coil) wooferHF: 1×1.5″ (75mm voice coil) compression driver |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| Dimensions (HxWxD) | 712 x 448 x 378 mm |
| WEIGHT | 28 kg |
| CONNECTORS | NEUTRIK NL4 |
| SPEAKER CABLES | 1+1- |
| MATERIALS | 15mm multi-plywood |
| FINISH | Black polyurea paintings |
| GRILLE | Black epoxy mesh grille with acoustically reticulated foam |
ZSOUND Versatile 15-Inch Point Source Speaker: Powerful Audio
When setting up a house of worship or a large corporate conference room, the challenge is often finding a single unit that balances deep musicality with crisp vocal clarity. The ZSOUND CP15 is engineered to solve this dilemma, serving as a Versatile 15-Inch Point Source Speaker (a standalone loudspeaker that radiates sound from a single location) that fills the gap between small fill speakers and massive touring arrays.
Why Driver Size Matters for Your Venue’s Bass
The “heart” of any speaker is its driver, and the CP15 features a robust 15-inch low-frequency driver. In the world of audio, size directly impacts the “Frequency Response” (the range of low bass to high treble sounds a speaker can accurately reproduce). Because a 15-inch cone can move more air than smaller alternatives, the CP15 naturally extends its reach down to 45 Hz.
This means that for many applications, you can achieve a full, rich sound without needing to hide bulky subwoofers in every corner. Whether it is the deep resonance of a church organ or the low-end punch of a presentation video, this Versatile 15-Inch Point Source Speaker provides a solid foundation that smaller speakers simply cannot match.
Crystal Clear Communication for Every Seat
While bass provides the “feel,” clarity provides the “understanding.” The CP15 is specifically optimized for “Excellent vocal performance,” making it an ideal choice for speakers and vocalists alike. It utilizes a 3-inch high-frequency “Compression Driver” (a specialized part of the speaker designed to push high-pitched sounds through a horn with great efficiency).
With a “Sensitivity” of 100 dB SPL (a measurement of how effectively the speaker converts power into volume), the CP15 ensures that even at lower power levels, the audio remains bright and intelligible. This prevents “Acoustic Fatigue” (the tired feeling listeners get when they have to strain to understand what is being said), ensuring your message is heard clearly from the front row to the back. To further enhance your event, pairing this audio clarity with advanced theatrical illumination can create a truly professional and engaging atmosphere for your audience.
Built for the Rigors of Professional Use
A professional speaker must be as durable as it is sonically accurate. The CP15 is constructed from a combination of 15mm and 18mm multi-plywood. This isn’t just for strength; wood provides superior “Damping” (the ability of a material to stop vibrating quickly), which prevents the cabinet itself from adding unwanted noise to the music.
The exterior is finished with a “Black Polyurea Painting,” a rugged, industrial-grade coating that protects the wood from scratches and moisture during transport or installation. For venues that require “Rigging” (the process of safely hanging speakers from a ceiling or truss), the CP15 is designed to integrate seamlessly into a “Fill System,” acting as the perfect supporting voice to a larger line array or serving as the primary sound source in mid-sized rooms. As a Versatile 15-Inch Point Source Speaker, the ZSOUND CP15 delivers the reliability and performance that modern venues demand.
-
