Ultimate Installation Guide for the ZSOUND R12P-III Reliable 12-Inch Passive Stage Speaker

Proper installation is essential for achieving clear, powerful, and consistent sound in any professional venue. A poorly positioned system can create muddy vocals, uneven coverage, and unwanted reflections, while a well-planned setup can deliver a clean and immersive listening experience.

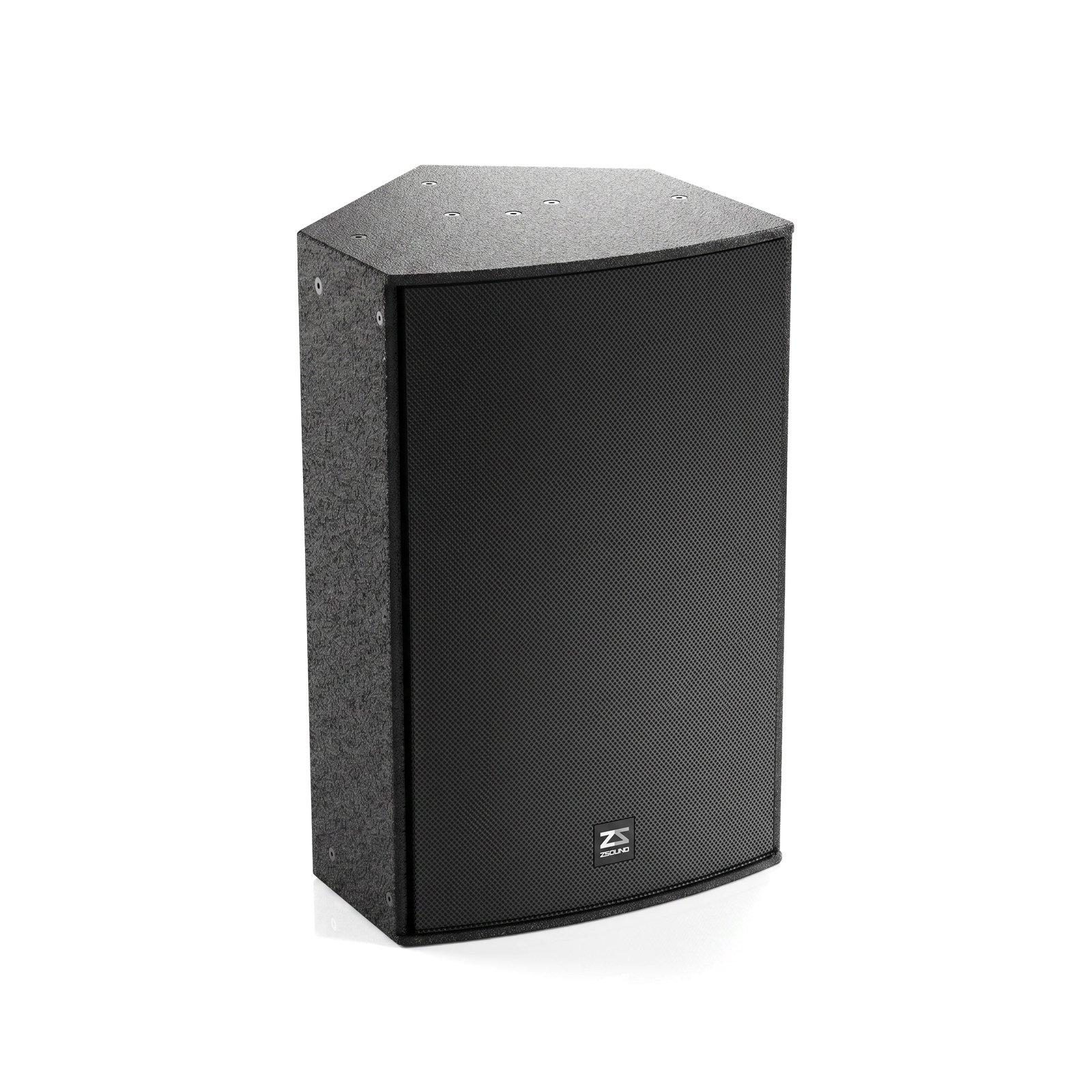

The ZSOUND R12P-III Reliable 12-Inch Passive Loudspeaker is designed for professional applications that require dependable performance, flexible installation, and high sound pressure output. As a passive loudspeaker, it does not include a built-in amplifier and must be powered by an external power amplifier. Whether used in a corporate ballroom, house of worship, live performance venue, or mobile stage system, the R12P-III provides the durability and clarity required for demanding audio environments.

1. Optimal Placement and Sound Coverage

The first step in installing a professional loudspeaker system is understanding the venue’s coverage requirements. The R12P-III features a 90° x 50° rotatable horn, which allows installers to adjust the dispersion pattern according to the speaker’s mounting direction.

This flexibility is one of the key advantages of the Reliable 12-Inch Passive Loudspeaker design. In venues with low ceilings or limited vertical space, the speaker may need to be installed horizontally. In this case, the front grille can be removed, and the horn can be rotated 90 degrees to maintain the correct coverage pattern.

By directing high frequencies toward the audience instead of nearby walls, the system helps reduce unwanted reflections and improves speech intelligibility. This also minimizes the risk of phase cancellation, where sound waves interfere with each other and reduce overall clarity. For audiences seated across different areas of the venue, correct horn orientation ensures a more balanced and natural listening experience.

For permanent installations, the R12P-III can be integrated with lighting, stage design, and acoustic treatment to create a complete professional environment. For mobile events, this Reliable 12-Inch Passive Loudspeaker offers the coverage and adaptability needed for quick setup without compromising sound quality.

2. Rigging and Safe Hardware Assembly

Safety must always be the top priority when suspending or mounting loudspeakers. Rigging refers to the process of using certified hardware to hang speakers from ceilings, trusses, or structural supports. The ZSOUND R12P-III cabinet is built from 15mm birch plywood, providing both strength and acoustic damping. This construction helps reduce unwanted cabinet resonance while maintaining long-term durability.

The speaker is equipped with 13 M8 rigging points, giving installers multiple options for secure suspension. When flying this Reliable 12-Inch Passive Loudspeaker, always use certified load-rated eye bolts, steel cables, clamps, and safety accessories. The mounting structure must be checked carefully to ensure it can support the total system weight.

For safe installation, at least three suspension points are recommended to achieve a stable angle of inclination. This downward tilt allows the sound to be aimed directly at the audience area, improving coverage and reducing reflections from ceilings or rear walls.

For portable applications, the built-in pole mount provides a convenient solution. The R12P-III can be placed on a standard 35mm tripod stand, raising the loudspeaker above the audience’s head level. This helps the sound travel more evenly across the room and prevents the front rows from blocking the audio path.

3. System Integration and Amplification

Because the R12P-III is a passive loudspeaker, proper amplifier matching is critical. A power amplifier converts the low-level audio signal from a mixer or processor into a high-power signal capable of driving the speaker’s internal components.

The Reliable 12-Inch Passive Loudspeaker is built to deliver high SPL performance, with a peak sound pressure level of up to 130dB. To achieve this safely, the amplifier output should match the speaker’s recommended power handling range. Using an underpowered amplifier may cause distortion, while excessive power can damage the drivers if the system is not properly limited.

High-quality Speakon cables are recommended for secure and stable connections. Compared with standard connectors, Speakon plugs provide a locking mechanism that prevents accidental disconnection during live performances or high-vibration environments.

Inside the R12P-III, a two-way crossover network divides the audio signal between the 12-inch low-frequency driver and the 1.75-inch compression driver. The low-frequency driver handles bass and lower midrange content, while the compression driver reproduces clear and detailed high frequencies. This design allows the Reliable 12-Inch Passive Loudspeaker to maintain balanced full-range performance across different applications.

For best results, use a digital signal processor to set proper equalization, limiter protection, and crossover settings when pairing the R12P-III with subwoofers. This helps protect the speaker, improve tonal balance, and ensure consistent output throughout the venue.

4. Final Setup and Performance Check

After placement, rigging, and wiring are complete, the system should be tested at low volume before full operation. Check each connection, confirm the signal path, and verify that both low and high frequencies are working correctly. Gradually increase the volume while listening for distortion, rattling, or uneven coverage.

Walk through the audience area to evaluate clarity, volume balance, and tonal consistency. Small adjustments to speaker angle, EQ, or amplifier gain can make a significant difference in the final result.

With proper installation and system tuning, the ZSOUND R12P-III Reliable 12-Inch Passive Loudspeaker can deliver strong output, clear vocals, and dependable performance for a wide range of professional sound reinforcement applications.

Conclusion

The ZSOUND R12P-III is more than just a passive speaker—it is a practical and durable solution for venues that demand reliable sound every day. From flexible horn rotation and multiple rigging points to high SPL capability and professional connectivity, this Reliable 12-Inch Passive Loudspeaker is built to support both fixed installations and mobile audio systems.

For theaters, event halls, worship spaces, live stages, and rental companies, the R12P-III offers the performance, safety, and versatility required in modern professional sound systems.
