Column Speaker Subwoofer: The Professional Setup Guide for ZSOUND PO-SUBK

In the world of high-end audio reinforcement, a system is only as strong as its weakest link. When deploying a modern column speaker subwoofer ( a specialized bass unit that serves as the physical and sonic foundation for vertically stacked speaker arrays), the goal is to create a seamless blend between ground-shaking depth and crystal-clear articulation. The ZSOUND PO-SUBK is specifically engineered to be the “anchor” of a larger Column Speaker System (a slim, vertical arrangement of drivers designed to throw sound across long distances with minimal volume drop-off). This guide focuses on the practical installation and synergy between the PO-SUBK and its companion, the PO45K, to ensure your venue sounds as professional as it looks.

Establishing the Sonic Foundation

The physical placement of your column speaker subwoofer is the most influential factor in how the audience “feels” the music. Because this unit acts as the base for the entire stack, it must be positioned on a solid, non-resonant surface. If the floor vibrates excessively, it creates “muddy” bass (a lack of definition where low notes bleed into each other), which can ruin the clarity of a performance.

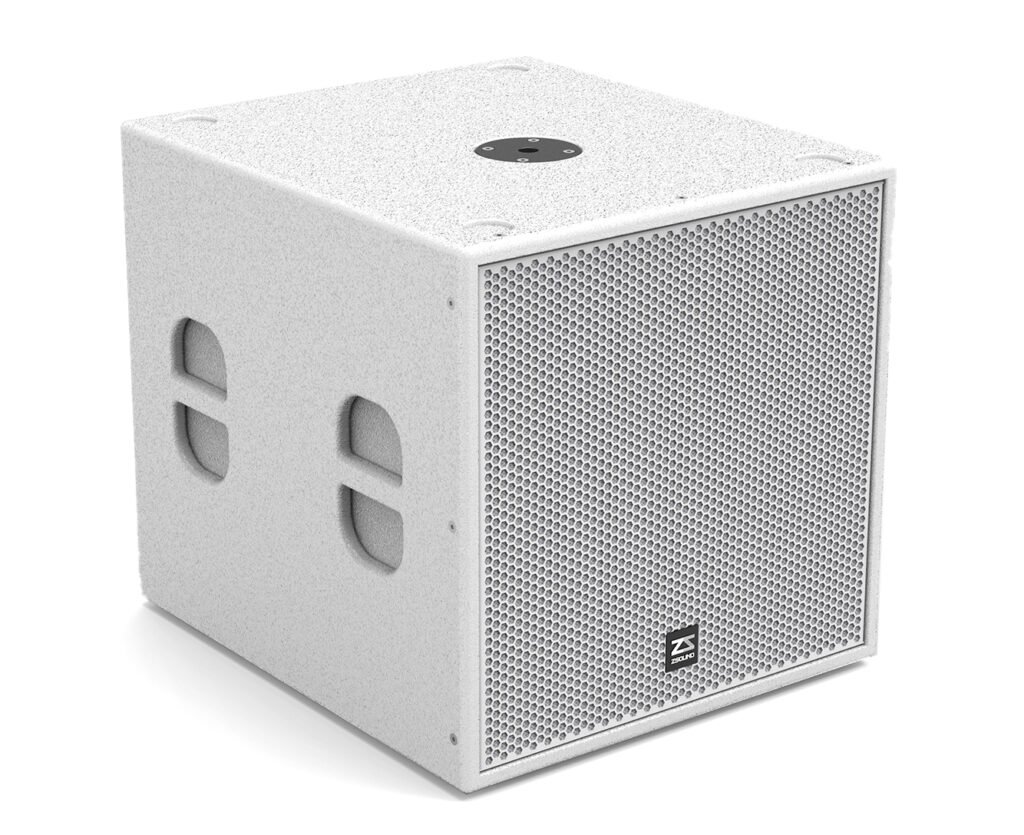

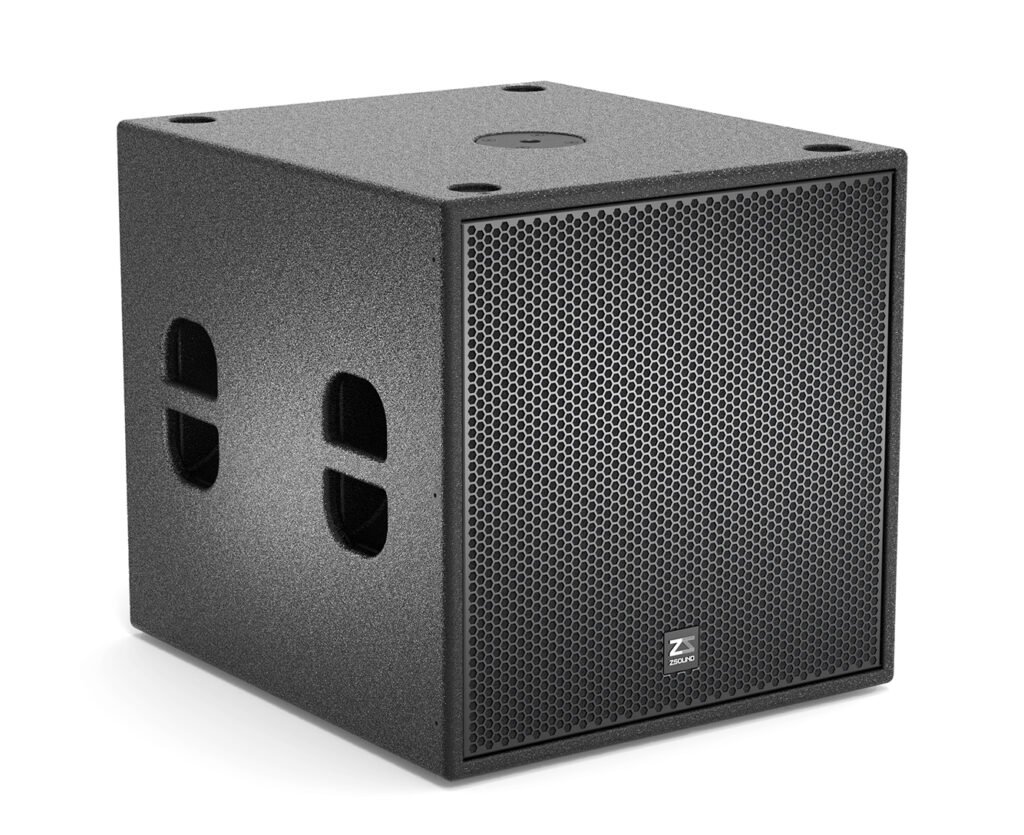

The PO-SUBK utilizes a direct radiation design (a configuration where the sound waves travel in a straight line from the speaker cone to the listener), providing a natural and punchy response. When setting up, ensure the unit is not tucked into a corner unless you intentionally want to boost the bass through “boundary loading” (an acoustic phenomenon where walls reflect low-frequency energy back into the room). Proper spacing allows the large-scale driver to breathe, moving enough air to provide that physical “thump” in the chest that characterizes a professional event.

Mounting the PO45K for Optimal Coverage

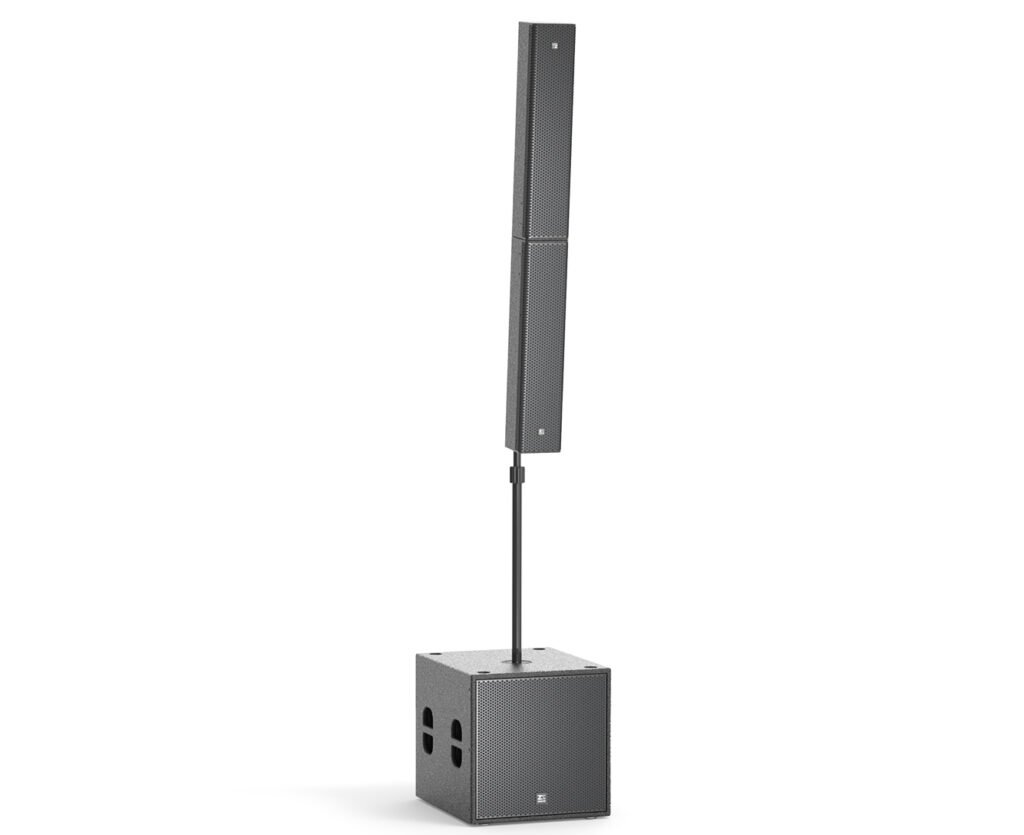

Once the column speaker subwoofer is securely in place, the PO45K top units are mounted directly above using a heavy-duty pole or the integrated rigging system. The beauty of this pairing lies in the vertical alignment. By stacking the high-frequency components directly over the bass engine, you create a point-source-like experience where all frequencies reach the listener’s ears at the same time.

A critical part of the installation is adjusting the tilt and rotation of the top units. The PO45K features adjustable rigging (the hardware used to angle the cabinet), allowing you to aim the sound at the audience’s ears rather than the ceiling. This precision is vital in reflective rooms like gymnasiums or marble-floored halls. Just as a professional production relies on captivating stage lighting solutions to direct the audience’s eyes, these acoustic adjustments direct the audience’s attention to the performers by eliminating distracting echoes.

Connection Logic and Signal Flow

Because the PO-SUBK and PO45K are passive components, they depend on an external “brain” in the form of a power amplifier and a processor. To get the most out of your column speaker subwoofer, the signal flow must be correctly routed through a crossover (an electronic filter that acts like a traffic cop, sending low sounds to the sub and high sounds to the column).

When wiring the units, always use high-quality Speakon cables (industrial-strength connectors that lock into place to prevent accidental disconnection). The PO-SUBK is designed with high power handling in mind, utilizing a high-performance voice coil (the internal copper wire that converts electrical energy into mechanical movement). This component is built to dissipate heat efficiently, ensuring that the system can run at high volumes for hours without a loss in performance or “power compression” (a phenomenon where a speaker gets quieter as it gets hotter).

Final Tuning and Room Calibration

After the physical installation of the column speaker subwoofer stack is complete, the final step is a “walk-through” test. Play a track you are intimately familiar with and walk to the furthest corners of the room. You should hear a consistent balance between the deep rumble of the PO-SUBK and the clear vocals of the PO45K.

If the bass feels disconnected from the high-mids, you may need to adjust the “phase” (the timing relationship between the subwoofer and the top column). Ensuring that both units are pushing air forward at the exact same micro-second creates a “seamless” soundstage. The rugged cabinet construction, featuring Baltic birch plywood and a polyurea finish (a high-tech, waterproof, and impact-resistant coating), ensures that even in the most demanding touring environments, the PO-SUBK remains a reliable, high-performance centerpiece of your audio arsenal.

---

FAQ: Scenario-Based Setup Tips

Q: Can I stack multiple PO45K columns on a single PO-SUBK? A: Yes, but ensure your physical support pole is rated for the total weight and that your power amplifier can handle the lower electrical resistance (impedance) created by multiple speakers.

Q: How do I protect the system during an outdoor rainy event? A: While the polyurea coating is extremely tough and moisture-resistant, the internal driver and rear connectors should always be shielded from direct rain using a weather cover to prevent electrical shorts.

Q: Should the subwoofer be on a stage or on the floor? A: Ideally, the column speaker subwoofer should be on the floor. Coupling the unit with the ground increases bass efficiency, whereas putting it on a hollow wooden stage can cause the stage itself to rattle and create unpleasant noise.
