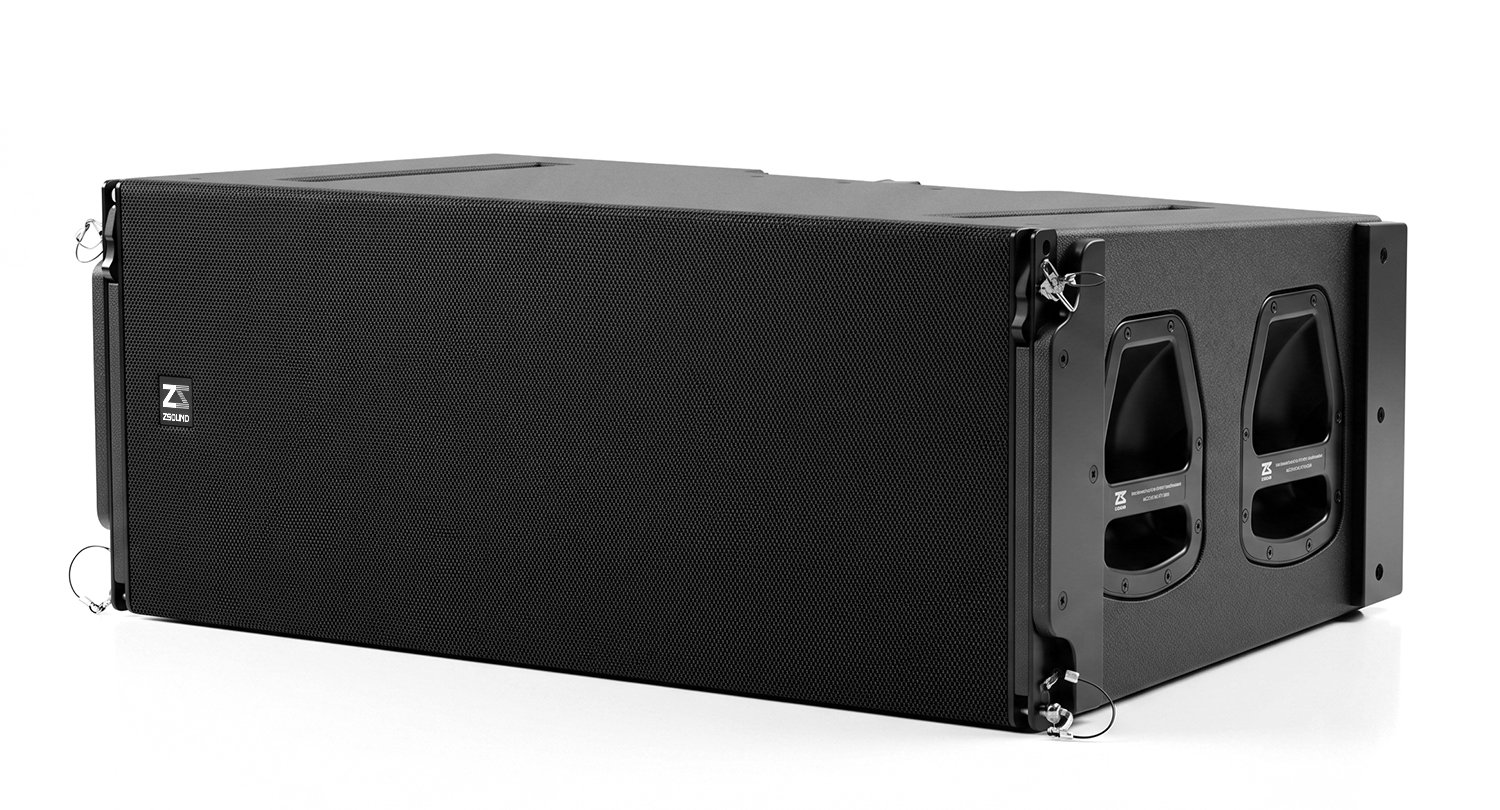

ZSOUND VCL: The Definitive Tri-Amp Line Array System for Large-Scale Touring

When it comes to filling a stadium or a massive outdoor festival with crystal-clear audio, standard loudspeakers simply won’t cut it. You need a solution designed for “throw” (the distance sound travels before losing its impact). The ZSOUND VCL is our flagship tri-amp line array system ( a sophisticated loudspeaker configuration where the sound spectrum is divided into three distinct paths, each powered by its own dedicated amplifier channel). As a centerpiece of our Professional Line Array Speaker lineup, the VCL is engineered to handle the rigorous demands of global touring while maintaining the delicate nuances of every musical performance.

The Engineering Logic of Three-Way Tri-Amping

The “Tri-amp” in tri-amp line array system refers to a high-efficiency architecture that treats different sounds like specialized vehicles on a highway. Instead of forcing one amplifier to handle the deep thud of a kick drum and the high shimmer of a cymbal simultaneously, the VCL splits the signal into three “lanes”: low-frequency (LF), mid-frequency (MF), and high-frequency (HF).

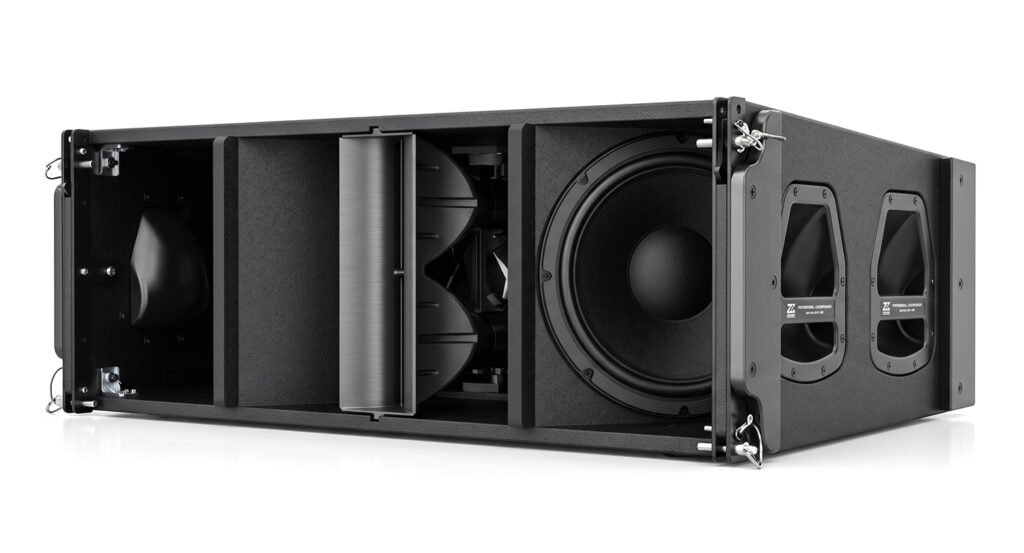

By utilizing two 12-inch woofers (the large cones that push air to create bass), a single 10-inch mid-range driver (the component that makes vocals sound natural), and dual 2.5-inch compression drivers (the parts responsible for crisp, detailed highs), the system eliminates intermodulation distortion (an audio error where low sounds “muddy” the high sounds). This ensures that even at the back of a 30,000-seat arena, the audience hears every lyric with the same intimacy as the front row. To match this level of acoustic engineering, many top-tier event planners integrate innovative event lighting designs to create a visual energy that parallels the VCL’s sonic power.

Neodymium Performance and Extreme 141dB Output

In the pro audio world, raw power must be balanced with weight management. This tri-amp line array system features neodymium high-sensitivity drivers. Neodymium is a premium rare-earth material that provides significantly more magnetic strength than traditional ferrite magnets while weighing much less. This technology allows the VCL to achieve a staggering 141 dB of Peak SPL (Sound Pressure Level – the measurement of how loud a speaker can safely get).

The LF section is further enhanced by rubber-edge drivers, which allow for a larger “stroke” (the distance the speaker cone moves back and forth). This extends the low-frequency response down to 50Hz, providing a punchy, physical bass that the audience can feel in their chests. When you deploy a tri-amp line array system of this caliber, you are providing more than just sound; you are delivering a full-body sensory experience.

Precision Rigging for Fast-Paced Tour Logistics

On a professional tour, time is the most valuable commodity. The VCL tri-amp line array system is designed with a manual hoister system (a mechanical lifting mechanism that allows for angle adjustments while the speakers are suspended in the air). This allows sound engineers to pre-set the vertical curve of the array on the ground and fine-tune the “coverage” (the area where the sound is directed) once the speakers are flown.

With adjustable angles ranging from 0 to 7.5 degrees, you can precisely target the sound at the audience seating areas, preventing energy from bouncing off ceilings or distant walls and creating unwanted echoes. The cabinet itself is constructed from 18mm and 24mm Baltic birch plywood, a dense wood chosen for its natural acoustic dampening and immense structural strength. Protected by a rugged black polyurea finish (a hard-wearing, weather-resistant industrial coating), the VCL is built to survive years of rain, sun, and heavy handling on the road.

Seamless Integration into the ZSOUND Ecosystem

A tri-amp line array system is part of a larger acoustic family. To unlock the VCL’s maximum potential, we recommend pairing it with our S28 or SW218 subwoofers for ultra-low-frequency support. Because the VCL is a passive system (meaning it doesn’t have built-in amps), it requires external digital power amplifiers like our MA series, which provide the high-voltage “headroom” (the extra power available to handle sudden peaks in volume without distorting) necessary for stadium-level playback.

FAQ for the VCL Tri-Amp System

Q: Can I run the VCL in a passive (non-tri-amp) mode? A: No. The VCL is specifically designed as a tri-amp line array system to ensure maximum control and clarity. It requires a digital signal processor and three separate amplifier channels for each module.

Q: How many VCL modules are needed for a stadium show? A: While every venue is different, a typical large-scale stadium tour will use hangs of 12 to 16 modules per side to ensure consistent SPL and tonal balance throughout the arena.

Q: Is the system weather-resistant? A: Yes. The VCL features a polyurea coating and an epoxy mesh grille with reticulated cloth (a specialized acoustic foam that blocks water droplets while letting sound pass through), making it suitable for outdoor festivals.
