High-Power Point Source Speaker
P15 15 inch point source speaker
Applications
- Bar
- Theatre
- Stage monitor
Feature
- Frequency response special design to avoid auditory fatigue
- Rotatable and asymmetrical horn
- 13x M8 rigging points
- Pole mount socket
Technical Specification
| Parameter Name | Parameter Value |
|---|---|
| FREQUENCY RESPONSE | 60 Hz-18 kHz (±3dB), 45 Hz-20 kHz (-10 dB) |
| NOMINAL COVERAGE (-6dB) | 50°-100°(H), 55°(V) Constant directivity |
| SENSITIVITY (@1w/1m) | 98 dB SPL |
| POWER RATING (AES) | 450W |
| NOMINAL IMPEDANCE | 8 ohm |
| MAXIMUM SPL | 130 dB (peak) |
| DRIVERS | LF: 1 x 15″ (75mm voice coil) wooferHF: 1 x 44mm voice coil compression driver |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| DIMENSIONS (HxWxD) | 706 x 446 x 446 mm / 28″x18″x18″ |
| WEIGHT | 31 kg / 68 lbs |
| CONNECTORS | 2 x NL4MP Neutrik Speakon connectors |
| SPEAKER CABLES | 1+1- |
| MATERIALS | 18mm, 24mm birch plywood |
| FINISH | Black polyurea paintings |
| GRILLE | Black epoxy mesh grille with acoustically reticulated foam |
| DIAGRAMS | Impedance chart; Front, Top, Side views with dimensions provided |
ZSOUND P15: The Ultimate High-Power Point Source Speaker for Large Venues
When your venue demands more than just background music, you need an audio solution that delivers physical impact and pristine clarity. The ZSOUND P15 is engineered to be the definitive High-Power Point Source Speaker for demanding environments like large bars, professional theaters, and high-energy stages. Unlike complex line arrays that consist of many speakers hung in a row, a “Point Source” speaker delivers all its sound from a single, concentrated location, making it easier to set up while providing incredible “Imaging” (the ability for your ears to pinpoint exactly where the sound is coming from).
1. Deep Bass and Raw Power with the 15-Inch Driver
At the heart of the P15 is a massive 15-inch “Woofer” (the large speaker driver responsible for low-frequency sounds like the thump of a bass drum). This driver features a 75mm “Voice Coil,” which is the internal wire coil that converts electrical signals into physical movement. Because it is a High-Power Point Source Speaker, it boasts a “Power Rating” of 450W AES.
An “AES Power Rating” is a standardized industry measurement that tells you how much continuous electrical energy the speaker can handle safely over a long period without breaking. This allows the P15 to reach a “Maximum SPL” of 130dB peak. To put that in perspective, “SPL” stands for Sound Pressure Level; it is the technical way we measure loudness. A rating of 130dB means this speaker has the muscle to fill a large hall with concert-level volume without breaking a sweat.
2. Crystal Clear Highs for Professional Performance
While the woofer provides the “body” of the sound, the P15 uses a 3-inch “Compression Driver” to handle the delicate high frequencies. A “Compression Driver” is a specialized, high-efficiency speaker driver designed to project clear vocals and crisp instrumentals over long distances. In this High-Power Point Source Speaker, both the woofer and the high-frequency driver are fine-tuned to work in perfect harmony, ensuring that every word spoken on stage is heard by the person in the very back row.
For those looking to create a truly world-class entertainment space, remember that great sound is only half the battle. To fully captivate your audience, we recommend integrating premium theater lighting setups to ensure your visual presentation is as stunning as your audio.
3. Versatile Installation for Any Architectural Space
Every room is shaped differently, which is why the P15 is built with “Asymmetrical Horn” technology. In the world of professional audio, a “Horn” is the funnel-shaped part that guides where the high-frequency sound goes. An “Asymmetrical” design means the horn projects sound wider for the people up front and narrower for the people in the back, ensuring everyone experiences the same volume level regardless of where they are standing.
To make installation simple, the cabinet includes 13 separate “M8 Rigging Points”. “Rigging” refers to the heavy-duty metal attachment points used to safely hang or “fly” a speaker from a ceiling or truss. Whether you are using the pole mount socket for a temporary event or permanently mounting this High-Power Point Source Speaker in a grand auditorium, the ZSOUND P15 provides the flexibility and reliability that professional installers demand.
Technical Highlights for the ZSOUND P15:
- Frequency Response: 60 Hz – 18 kHz (The range of sound from low bass to high treble the speaker can produce).
- Nominal Coverage: 50°–100°(H) x 55°(V).
- Sensitivity: 98 dB SPL (A measure of how efficiently the speaker converts power into sound).
- Material: Built from 18mm and 24mm birch plywood with a wear-resistant finish.
To view the full technical data sheet or to request a system design consultation, visit our official website at www.zsoundpro.com.
The installation method is similar to that of P10, please refer to P10.
-
PO45K column speaker
Active column speaker Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 200 Hz-18kHz (±3dB), 145 Hz-20kHz (-10dB) NOMINAL COVERAGE (-6dB) 100°(H) x 45°(V) (Up ±15°, down ±30°) SENSITIVITY (@1w/1m) 98 dB SPL POWER RATING (AES) 570W (AES) NOMINAL IMPEDANCE 8 ohm MAXIMUM SPL 132 dB SPL peak DRIVERS LF: 4×5″ woofer (45mm voice […]
-
PO-SUBP-III
Powered column subwoofer Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 40 Hz-120 Hz (±3 dB), 35 Hz-180 Hz (-10dB) NOMINAL COVERAGE Omnidirectional MAXIMUM SPL 134 dB SPL peak DRIVERS LF: 1×18” woofer (100mm voice coil) POWER RATING (AES) 1500W POWER REQUIREMENT 200-240V~50-60Hz AMPLIFIER MODULE Dual channel 2000W (4Ω) THD+N 0.82% SNR 104 […]
-
PO-SUBK subwoofer
Column speaker subwoofer Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 40 Hz-120 Hz (±3 dB), 35 Hz-180 Hz (-10dB) NOMINAL COVERAGE (-6dB) Omnidirectional SENSITIVITY (@1W/1M) 97 dB POWER RATING (AES) 1500W (AES) NOMINAL IMPEDANCE 8 ohms MAXIMUM SPL 134 dB SPL peak DRIVERS LF: 1×18″ woofer (100mm voice coil) Physical Data Parameter […]
-
CP15M 15 inch monitor speaker
Coaxial stage monitor Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 70 Hz~16 kHz (±3 dB), 50 Hz~18 kHz (-10 dB) NOMINAL COVERAGE (-6dB) 60°(H), 40°(V) MONITOR ANGLE Normal mode 34.5° / Built-in angle risers 52° SENSITIVITY (@1W/1m) 98 dB POWER RATING (AES) 500W NOMINAL IMPEDANCE 8 ohm MAXIMUM SPL 140 dB (AES) […]
-
M215 stage monitor speaker
Dual 15 inch stage monitor Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 65 Hz ~ 16 kHz (±3 dB), 45 Hz ~ 18 kHz (-10 dB) NOMINAL COVERAGE (-6dB) 60°(V) 80°(H) MONITOR ANGLE (@1w/1m) 98 dB POWER RATING (AES) 1000W NOMINAL IMPEDANCE 8 ohm MAXIMUM SPL 138 dB DRIVERS LF: 2×15″ (75mm […]
-
M212 12 inch monitor speaker
Dual stage monitor speaker Applications Feature Technical Specification Parameter Name Parameter value Frequency Response 85 Hz ~ 16 kHz (±3 dB), 55 Hz ~ 18 kHz (-10 dB) Nominal Coverage (-6dB) 60° (V) × 80° (H) Sensitivity (@1W/1m) 98 dB Power Rating (AES) 800 W Nominal Impedance 8 ohm Maximum SPL 133 dB Drivers LF: […]
-
M15 stage monitor
15 inch stage monitor Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 60 Hz-16 kHz (±3 dB), 50 Hz-18 kHz (-10 dB) NOMINAL COVERAGE (±dB) 60°(H) 40°(V) Constant directivity SENSITIVITY (±1w/1m) 100 dB SPL POWER RATING (AES) 450W NOMINAL IMPEDANCE 8 ohm MAXIMUM SPL 133 dB (peak) DRIVERS LF: 1 x 15″ (75mm […]
-
M12 12 inch stage monitor
12 inch stage monitor Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 65 Hz-16 kHz (±3 dB), 55 Hz-18 kHz (-10 dB) NOMINAL COVERAGE (-4 dB) 60°(H) 40°(V) Constant directivity SENSITIVITY (@1w/1m) 98 dB SPL POWER RATING (AES) 400W NOMINAL IMPEDANCE 8 ohm MAXIMUM SPL 130 dB (peak) DRIVERS LF: 1 x 12″ […]
-
15 inch moitor speaker
Small stage monitor Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 50 Hz-16 kHz (±3 dB), 40 Hz-18 kHz (-10 dB) NOMINAL COVERAGE (±dB) 80°(H), 80°(V) Constant directivity MAXIMUM SPL 132 dB (peak) CHANNEL GAIN CH1 (LOW): 26dB, CH2 (HI): 20dB POWER RATING (AES) 2 * 500W@4Ω + DSP INPUT IMPEDANCE 18KΩ balanced […]
-
V215 Dual 15 inch point source speaker
Powerful Dual 15-Inch Professional Speaker Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 45Hz-16kHz (±3dB), 35Hz-18kHz (-10dB) NOMINAL COVERAGE 60°(H) x 90°(V) SENSITIVITY (@1W/1M) 98 dB POWER RATING (AES) 980W NOMINAL IMPEDANCE 8 ohm MAXIMUM SPL 133 dB SPL (peak) DRIVERS HF: 1×3″ (75mm voice coil) compression driverLF: 2×15″ (75mm voice coil) subwoofer […]
-
R15P-III 15 inch point source speaker
Powerful 15-Inch Passive Speaker Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 50 Hz-18 kHz (±3 dB), 30 Hz-20 kHz (-10dB) NOMINAL COVERAGE 80° x 50° MAXIMUM SPL 123 dB SPL, 129 dB SPL peak CHANNEL GAIN CH1 (LOW): 26dB, CH2 (HI): 20dB POWER RATING (AES) 2 * 500W@4Ω + DSP INPUT IMPEDANCE […]
-
R12P-III 12inch point source speaker
Reliable 12-Inch Passive Loudspeaker Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 55 Hz-18 kHz (±3 dB), 40 Hz-20 kHz (-10 dB) NOMINAL COVERAGE 80° x 50° CHANNEL GAIN CH1 (LOW): 26dB, CH2 (HI): 20dB POWER RATING (AES) 2 * 500W@4Ω + DSP INPUT IMPEDANCE 18KΩ balanced / 9KΩ unbalanced THD+N (0.1w to […]
-
R10P-III 10 inch full range speaker
Professional 10-Inch Passive Speaker Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 55 Hz-18 kHz (±3 dB), 50 Hz-20 kHz (-10 dB) NOMINAL COVERAGE 80° x 50° MAXIMUM SPL 118 dB SPL, 124 dB SPL peak CHANNEL GAIN CH1 (LOW): 28dB, CH2 (HI): 20dB POWER RATING (AES) 2 * 500W@4Ω + DSP INPUT […]
-
HD15 15 inch point source speaker
Professional 15-Inch Loudspeaker Applications Feature Technical Specification Parameter Name Parameter Value FREQUENCY RESPONSE 80 Hz-16 kHz (±3 dB), 50 Hz-18 kHz (-10 dB) NOMINAL COVERAGE 70°(H), 100°(V) Constant directivity SENSITIVITY (@1w/1m) 100 dB POWER RATING (AES) 500W NOMINAL IMPEDANCE 8 ohm MAXIMUM SPL 127 dB SPL, 133 dB SPL peak DRIVERS LF: 1×15″ (75mm voice […]
-
CP15 15 inch point source speaker
Versatile 15-Inch Point Source Speaker: Powerful Audio Applications Feature Technical Specification Parameter Name Parameter Value Frequency Response 60 Hz ~ 16 kHz (±3dB), 50 Hz ~ 18 kHz (-10dB) SENSITIVITY (@1w/1m) 103 dB SPL POWER RATING (AES) 500W NOMINAL IMPEDANCE 8 ohm MAXIMUM SPL 130 dB SPL, 136 dB SPL peak DRIVERS LF: 1×15″ (75mm […]
-

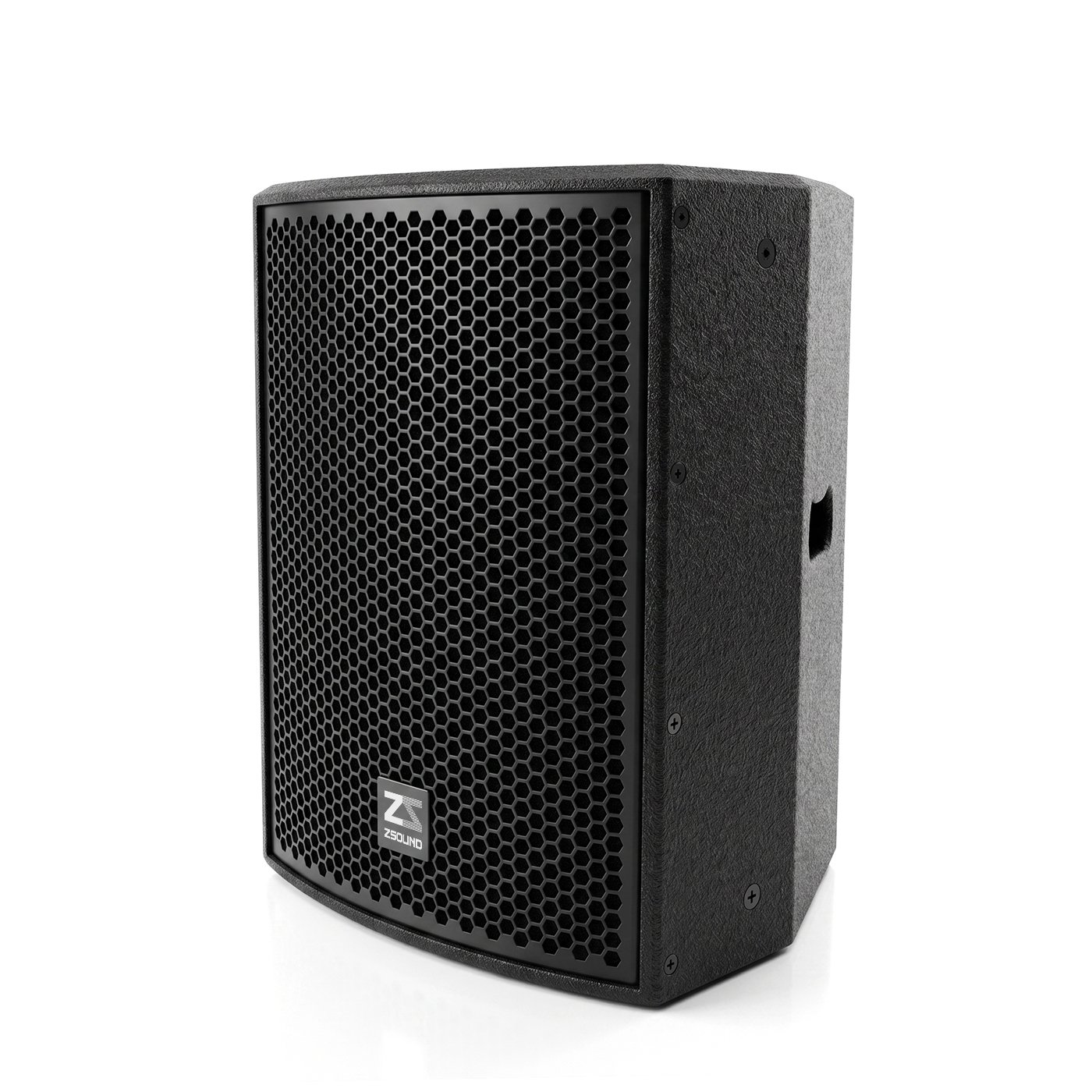

CP 10 10 inch point source speaker
