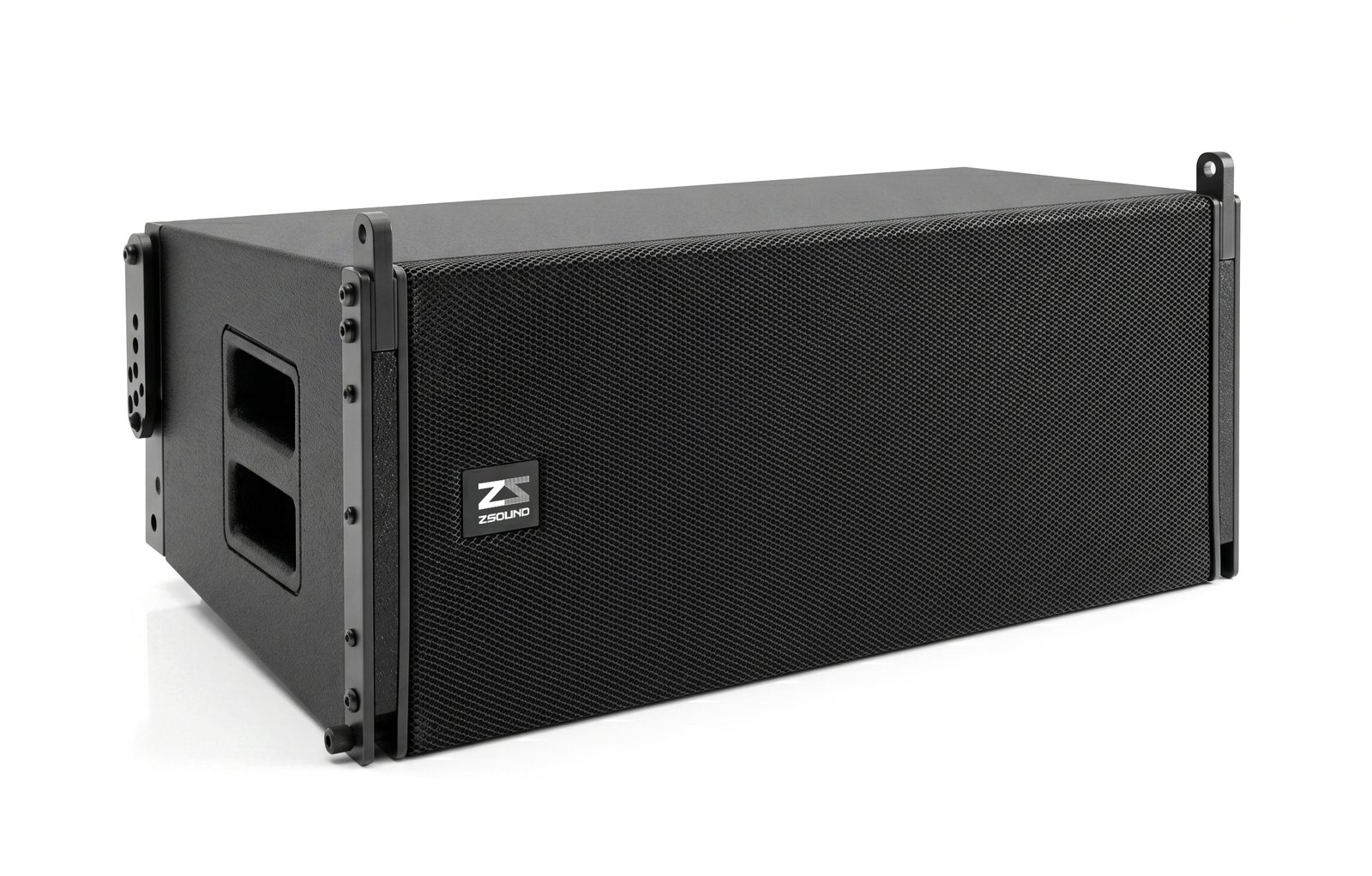

ZSOUND LA110: The Precision Single 10 Inch Line Array for Mid-Sized Venues

In the demanding landscape of professional sound reinforcement, one size rarely fits all. While stadium tours require massive towers of gear, mid-sized theaters and high-end community spaces need a solution that balances surgical precision with structural manageability. The ZSOUND LA110 is our definitive Single 10 inch line array (a specialized vertical stack of loudspeaker modules designed to project audio consistently over distance), engineered to solve the common pain point of uneven sound coverage in rooms that are too large for standard boxes but too small for massive arrays.,

As a core component of our Professional Line Array Speaker series, the LA110 follows ZSOUND’s “listening and thinking” philosophy. It doesn’t just fill a room with volume; it creates an intimate listening environment where every seat—from the front row to the very back of the balcony—receives the same tonal balance. By utilizing a compact, bi-amp system (a configuration where separate amplifiers drive the high and low frequencies for maximum control), this single 10 inch line array provides technicians with the flexibility needed for high-stakes corporate events and church services.,

Neodymium Driver Efficiency and Acoustic Authority

What sets this single 10 inch line array apart from entry-level gear is its internal engine. The cabinet houses a 10-inch LF (low-frequency—the part of the speaker that handles the “thump” and mid-bass) woofer with a 75mm voice coil and a 3-inch HF (high-frequency—the unit that produces crisp treble and vocal clarity) compression driver. Both units utilize premium neodymium magnets (a rare-earth material that is significantly lighter and stronger than traditional heavy magnets).

The use of neodymium allows the LA110 to achieve a staggering Maximum SPL (Sound Pressure Level—the technical measurement of a speaker’s loudness) of 137dB. This provides significant headroom (the safety margin of power that prevents the audio from distorting during loud musical peaks), ensuring that the sound remains natural and clear even at high volumes. When these speakers are paired with advanced stage lighting gear, the resulting atmosphere is both auditorily and visually stunning, drawing the audience deeper into the performance.

Baltic Birch Engineering for Touring Durability

A professional single 10 inch line array must be built to survive the physical stress of frequent transport and varied climate conditions. ZSOUND constructs the LA110 using a combination of 15mm and 18mm Baltic birch plywood (a high-density, multi-layered wood preferred by acoustic engineers for its extreme strength and acoustic neutrality). Unlike plastic cabinets, this high-grade wood ensures the enclosure doesn’t “add” its own rattling or vibration to your music.

To protect the investment, the cabinet is finished with Black Polyurea paintings (a rugged, waterproof industrial coating that is virtually indestructible). This finish ensures that your single 10 inch line array looks as professional as it sounds, even after hundreds of load-ins and load-outs. At only 22.5kg (roughly the weight of a standard checked suitcase), it is remarkably easy for a small crew to rig (the process of hanging and angling speakers in the air), significantly reducing labor time and transportation costs.

Precision Rigging and System Integration

The success of any installation depends on how precisely the sound can be directed toward the listeners. The LA110 features a multi-angle adjustable mounting mode, allowing technicians to set the vertical splay (the specific angle between each speaker box in the stack) from 0 to 10 degrees. This allows you to “shape” the sound beam to perfectly match the raked seating of a theater or the flat floor of a multi-function hall, preventing energy from being wasted on the ceiling or walls.

While the LA110 is a formidable standalone full-range module, we often recommend integrating it with our dedicated subwoofers for a complete sonic experience. For instance, pairing this single 10 inch line array with the LA110S subwoofer ensures a seamless phase response (the timing relationship between different sound waves), resulting in a cohesive wall of sound that captures every nuance of a live band or a delicate vocal performance. By choosing ZSOUND, you are investing in a system that values listener intimacy and technician efficiency in every configuration.

Frequently Asked Questions About the LA110

How many modules of the single 10 inch line array do I need for a 500-seat hall? For most medium-sized halls, a cluster of 4 to 6 LA110 units per side will provide more than enough power and coverage. Our technical team can provide EASE focus simulations to confirm the exact quantity and angles for your specific room dimensions.

Does the LA110 require a digital processor? Yes. To reach the 137dB peak SPL and ensure perfect crossover points (the frequency where sound shifts from the woofer to the tweeter), we recommend using ZSOUND digital power amplifiers or dedicated processors to manage the single 10 inch line array.

Is this system suitable for outdoor use? The combination of Baltic birch plywood and the waterproof Black Polyurea finish makes the LA110 highly resistant to humidity and environmental wear. However, for permanent outdoor installations in direct rain, we recommend using custom weather-protection covers.
