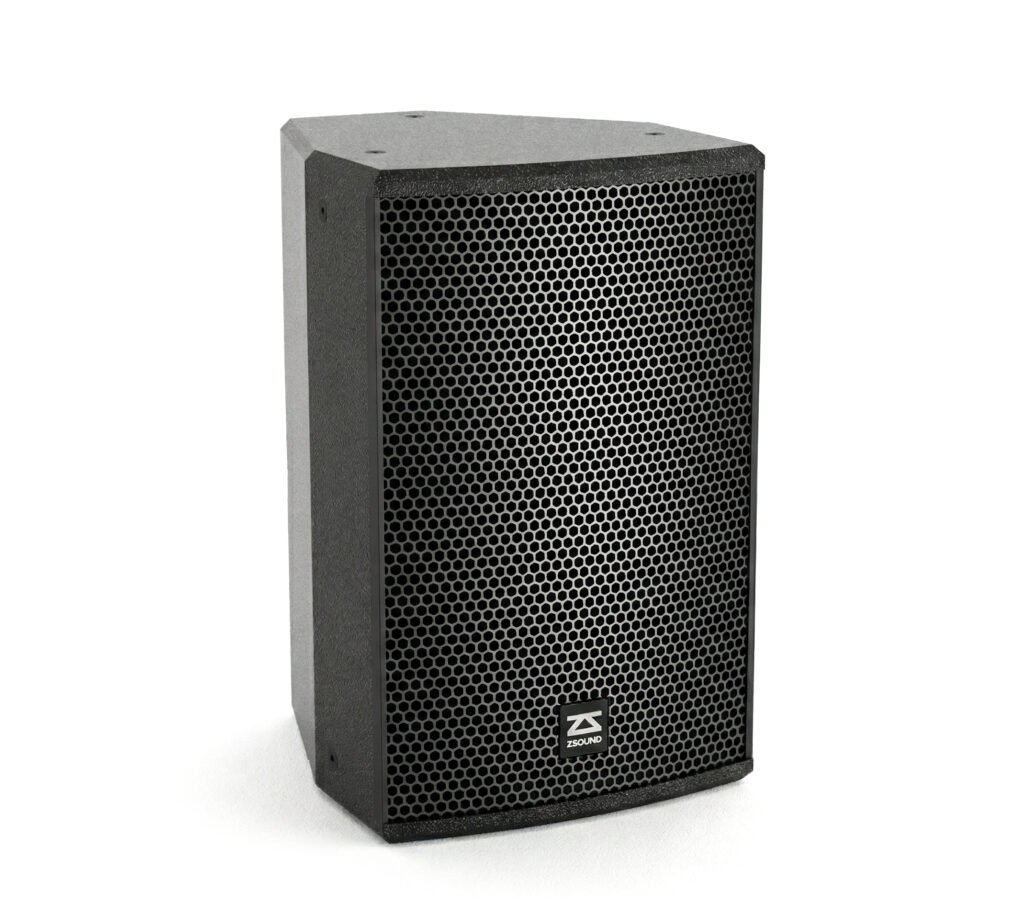

ZSOUND P10 | The Elite Compact Point Source Speaker for Professional Venues

When designing an audio system for a high-end bar, a boutique theater, or a corporate conference room, you need a solution that is powerful yet unobtrusive. The ZSOUND P10 is engineered to be the definitive Compact Point Source Speaker for these environments. It delivers a “Maximum SPL” of 126dB peak, ensuring that your audience hears every note with absolute clarity without needing massive, bulky equipment. (Maximum SPL refers to the technical measurement of loudness; a higher SPL means the speaker can fill a larger room without the sound becoming distorted.)

1. Professional Audio without Auditory Fatigue

One of the standout features of the P10 is a frequency response specially designed to avoid “auditory fatigue”. Auditory fatigue is that tired or stuffy feeling your ears get after being exposed to loud or harsh music for a long period, often caused by unbalanced high frequencies in low-quality speakers.

To provide a smooth, fatigue-free experience, the P10 utilizes high-performance drivers:

• The Woofer (LF Driver): A 10-inch driver with a 75mm voice coil that handles the “body” of the sound, such as vocals and the punch of a drum. (The voice coil is the wire that moves the speaker cone; a larger coil allows for better power handling and deeper bass.)
• The Compression Driver (HF Driver): A 1.75-inch (44mm) voice coil driver that ensures every word spoken or sung is crystal clear.

This Compact Point Source Speaker handles a power rating of 350W, making it a “workhorse” for any professional installer.

2. Precision Coverage with the Rotatable Asymmetrical Horn

The P10 is more than just a loud box; it is a precision-aimed audio tool thanks to its “Rotatable and Asymmetrical Horn”. In professional audio, a horn is the funnel-shaped part in front of the high-frequency driver that shapes the sound beam.

An “Asymmetrical” horn is special because it spreads sound wider (100°) for people sitting close to the speaker and narrower (50°) for those further away. This keeps the volume level feeling consistent no matter where you are in the room. Because the horn is “Rotatable,” you can physically turn it 90 degrees inside the cabinet. This allows you to mount the Compact Point Source Speaker vertically on a wall or lay it horizontally on the stage as a monitor while still aiming the sound perfectly at the crowd’s ears.

3. Creating a Professional Stage Ecosystem

Designing a world-class venue requires more than just great speakers; it requires a synergy of sound and atmosphere. To achieve a truly immersive environment, we recommend pairing ZSOUND’s audio excellence with expert stage lighting solutions to captivate your audience visually as well as auditorily.

For the “Heart” and “Brain” of your audio setup, this Compact Point Source Speaker integrates perfectly with our internal ecosystem:

• The Heart (Amplifier): The MA2400S Amplifier provides the raw electrical power needed to drive the P10’s dual-driver system.
• The Brain (Processor): The M44T Digital Signal Processor allows you to fine-tune the P10’s performance to match the unique acoustics of your room.
• The Hub (Distribution): The TCD-4 Distribution Box ensures safe and stable power delivery for up to four units.

The P10 cabinet is constructed from premium 15mm and 18mm birch plywood for superior acoustic resonance, and it features 13 separate M8 points for “Rigging”. (Rigging refers to the heavy-duty metal hardware used to hang speakers safely from a ceiling or truss.) Whether you are using the pole mount socket for a tripod or flying it high above a crowd, the P10 is the ultimate Compact Point Source Speaker for those who refuse to compromise on quality.

Explore the full technical specifications and download the 2026 ZSOUND catalog at www.zsoundpro.com.
