ZSOUND LA212: The Definitive Large Scale Line Array Speaker for Stadium Tours

The Advantage of Three-Way Tri-Amp Architecture

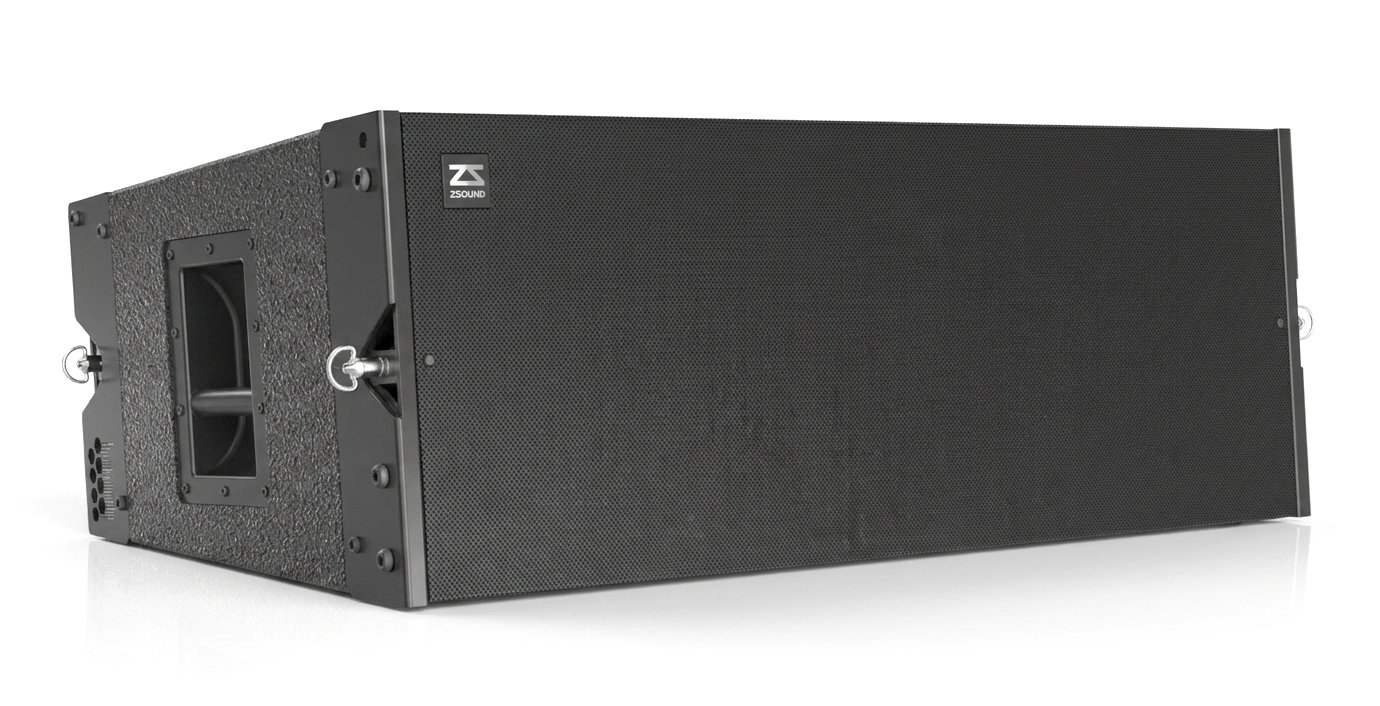

In the realm of professional sound reinforcement, size and precision must work in perfect harmony to cover thousands of spectators. The ZSOUND LA212 is our flagship large scale line array speaker (a modular sound system where multiple units are hung vertically to create a highly directed and powerful sound wave). Designed specifically for the most demanding environments, from sprawling outdoor festivals to massive sports stadiums, the LA212 is the crown jewel of our Professional Line Array Speaker series, engineered to deliver unparalleled clarity at extreme distances.

The complexity of a stadium environment requires more than just volume; it requires surgical control over different frequency ranges. This large scale line array speaker utilizes a tri-amp, three-way design. This means the speaker separates the sound into three distinct “lanes”—low, mid, and high frequencies—and uses three separate amplifier channels to power them.

Analytically, this is like having a high-performance engine where every component is optimized for a specific speed. By isolating the low-frequency (the deep bass notes), mid-frequency (the range where most human speech and instruments live), and high-frequency (the crisp details like cymbals) signals, we eliminate the distortion often found in smaller, two-way systems. When you deploy a large scale line array speaker of this caliber, the internal processing ensures that even at the back of a 50,000-seat arena, the audience experiences the same punch and intimacy as those in the front row. To complement such a massive sonic presence, integrating vivid theatrical light shows can elevate the visual impact to match the acoustic energy.

Coaxial Precision and Neodymium Driver Technology

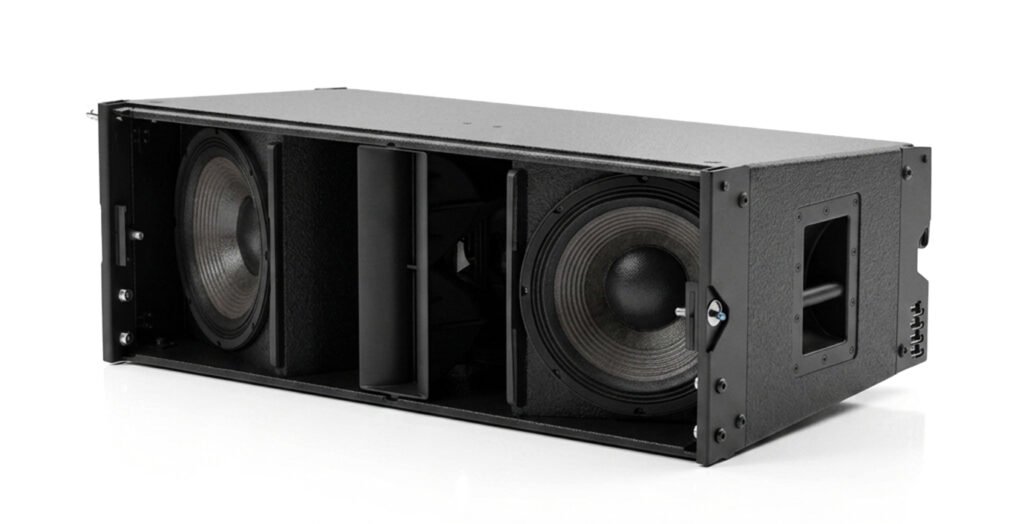

At the heart of the LA212’s superior performance is its unique coaxial structure for the mid and high frequencies. By placing the 1.4-inch high-frequency compression drivers (the parts that handle the sharpest sounds) inside the same acoustic axis as the 10-inch mid-range driver, we create a “point source” effect. This ensures that the sound waves for vocals and instruments arrive at the listener’s ears at the exact same time, preventing “phase cancellation” (an acoustic error where sound waves fight each other, resulting in a thin or hollow sound).

Furthermore, this large scale line array speaker is loaded with premium neodymium drivers. Neodymium is a rare-earth material that provides incredible magnetic strength while remaining remarkably lightweight. This allows the LA212 to produce a staggering 141 dB of Peak SPL (Sound Pressure Level – the standardized measurement of how loud a speaker can get) without the back-breaking weight of traditional ferrite magnets. For a touring company, this means you get more “throw” (the distance the sound travels before losing energy) per kilogram of gear.

Engineered for Rigorous Touring and Easy Rigging

Reliability is non-negotiable when you are on the road. The LA212 large scale line array speaker is constructed from high-grade 18mm and 24mm Baltic birch plywood, a dense wood known for its durability and lack of unwanted “box resonance.” The cabinet is finished with a protective polyurea coating (a rugged, weather-resistant paint) to withstand the humidity, dust, and physical impacts of life on a global tour.

Despite being a heavy-duty large scale line array speaker, the rigging system is surprisingly intuitive. It features a manual hoistable system that allows engineers to pre-set the angles on the ground and then adjust them easily once the array is in the air. With adjustable angles from 0 to 7.5 degrees, sound teams can precisely curve the array to match the vertical incline of stadium seating, ensuring every dollar spent on the sound system translates into a better experience for every fan.

Seamless Integration into the ZSOUND Ecosystem

A large scale line array speaker is only as good as the system supporting it. To unlock the full potential of the LA212, we recommend pairing it with our S28 or SW218 subwoofers (dedicated cabinets that handle the lowest chest-thumping frequencies). This combination creates a full-spectrum audio solution that covers everything from 50Hz up to 16kHz with absolute linearity. For power, our MA series digital amplifiers provide the necessary headroom (the extra power available to handle sudden peaks in volume without clipping) to keep the system sounding effortless even at maximum output.

FAQ for the LA212 Large Scale System

Q: How many LA212 modules can be flown in a single array? A: Due to its robust integrated hardware, you can safely fly up to 16 modules in a single hang, though most stadium configurations find 10 to 12 modules per side to be the ideal configuration for balanced coverage and weight distribution.

Q: Does this large scale line array speaker require an external processor? A: Yes. As a tri-amp passive system, the LA212 requires an external digital signal processor like our XCA48+ to manage the crossovers, time alignment, and protective limiting for the drivers.

Q: Is the LA212 suitable for outdoor use? A: Absolutely. The polyurea finish and acoustically reticulated cloth behind the epoxy mesh grille provide excellent protection against the elements, making it the perfect large scale line array speaker for outdoor music festivals and sports events.
