Versatile 8-Inch Point Source Speaker
CP8 8 inch point source speaker
Applications
- Conference room
- Church
- Fill system
Feature
- 44mm HF compression driver
- Low frequency response extend to 50Hz
- Excellent vocal performance
Especificaciones Técnicas
| Parameter Name | Parameter Value |
|---|---|
| FREQUENCY RESPONSE | 90 Hz ~ 18 kHz (±3 dB), 50 Hz ~ 20 kHz (-10 dB) |
| NOMINAL COVERAGE | 80°(H), 80°(V) Constant directivity |
| SENSITIVITY (@1w/1m) | 93 dB SPL (90-20 kHz) |
| POWER RATING (AES) | 250W (continuous), 1000W (peak) / 500W (recommended) |
| NOMINAL IMPEDANCE | 8 ohm |
| MAXIMUM SPL | 123 dB (peak) |

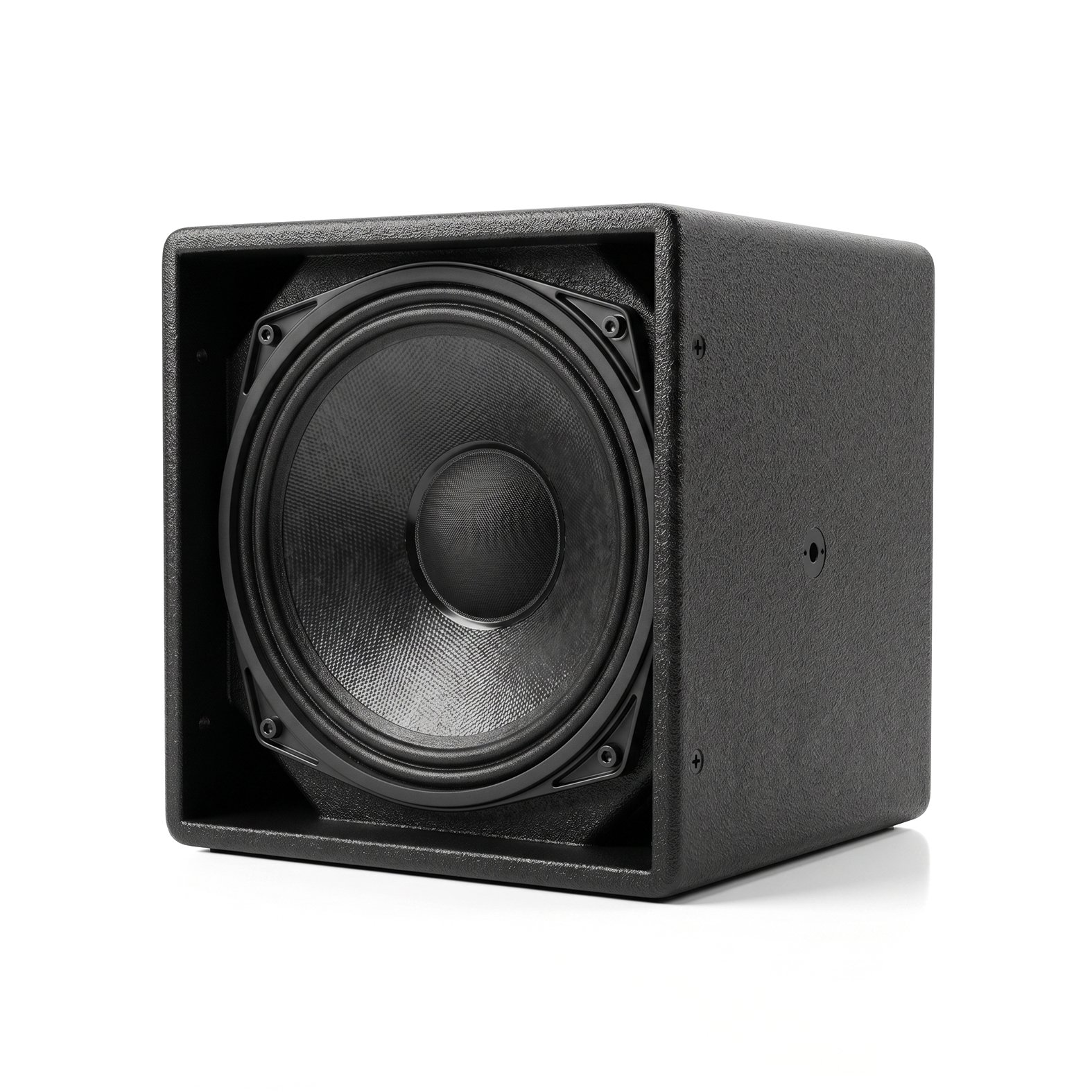

| DRIVERS | LF: 1×8″ driver;HF: 1×1.75″ (44mm voice coil) compression driver |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| Dimensions (HxWxD) | 231.7 x 222 x 185 mm / 9.1″ x 8.7″ x 7.3″ |
| WEIGHT | 9.8 kg / 22 lbs |

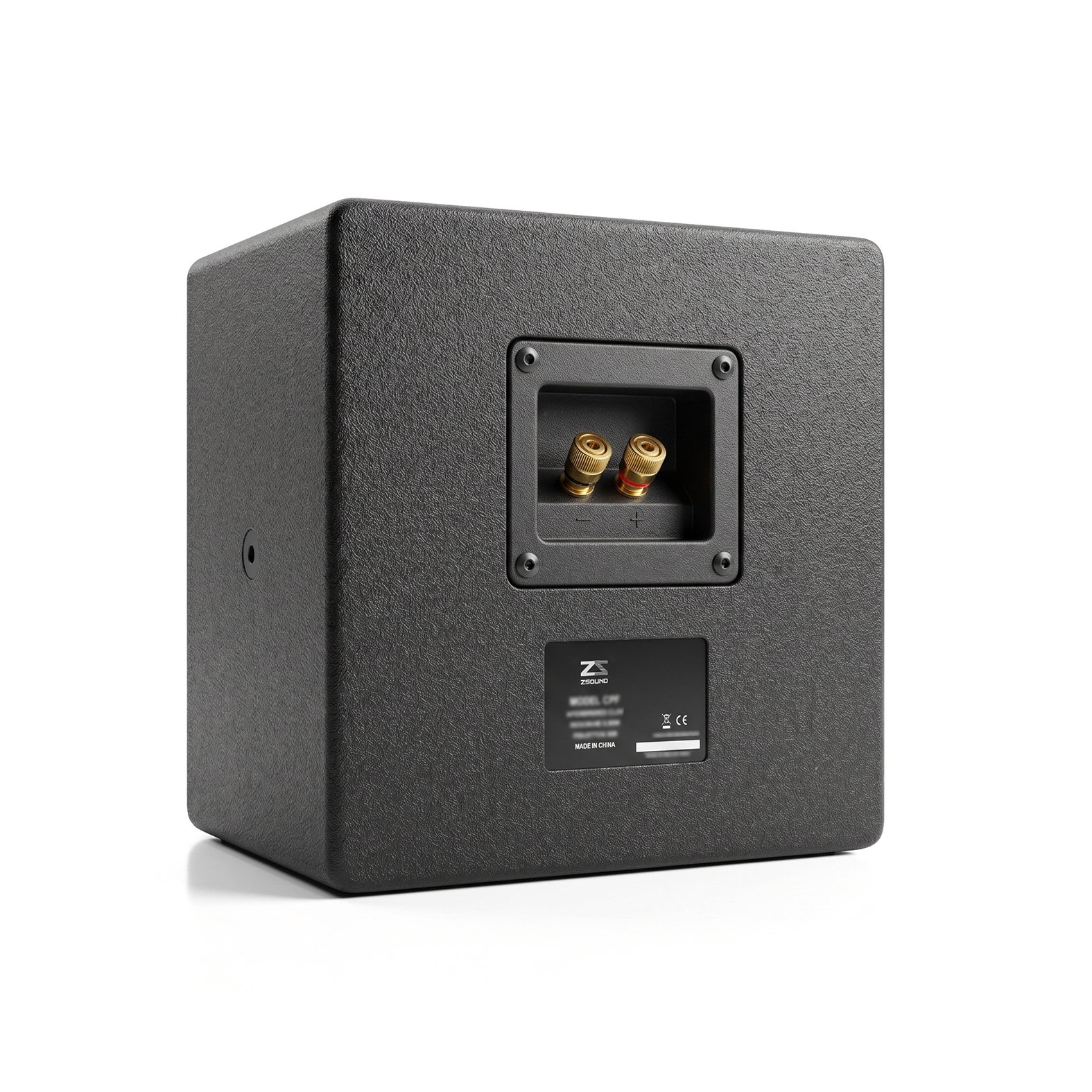

| CONNECTORS | Binding Post |
| SPEAKER CABLES | 1+1- |
| MATERIALS | 15mm, 18mm multi-plywood |
| FINISH | Black polyurea paintings |
| GRILLE | Black epoxy mesh grille with acoustically reticulated foam |
| INSTALLATION | Standoff holes and for multiple flying points |
ZSOUND CP8: The Best Versatile 8-Inch Point Source Speaker for Perfect Vocal Clarity
In the world of professional audio, bigger isn’t always better. Sometimes, the most critical part of a sound system is the “Supporting Actor”—the speaker that fills the gaps and ensures every corner of the room hears the message clearly. The ZSOUND CP8 is designed to be that essential Versatile 8-Inch Point Source Speaker, offering a compact footprint without sacrificing the high-fidelity sound required for modern conference rooms, churches, and professional fill systems.
1. Exceptional Vocal Performance with Advanced Driver Technology
The soul of the CP8 lies in its ability to reproduce the human voice with startling realism. It features a high-performance 1.75-inch “Compression Driver” (a specialized speaker component designed to produce high-frequency sounds with great efficiency and throw). This 44mm HF unit is paired with a precision-engineered 8-inch woofer to ensure that whether it’s a sermon or a corporate presentation, every syllable is crisp and intelligible.
To truly bring a professional atmosphere to your venue, audio is only the first step. Creating a visually stunning environment with professional stage lighting setups will ensure your audience is fully engaged, combining elite sound with world-class visuals.
2. The Power of a Professional Fill System
One of the primary roles of this Versatile 8-Inch Point Source Speaker is serving as a “Fill System”. In a large venue, sound from the main speakers can sometimes struggle to reach under balconies or into far corners, creating “Dead Zones” (areas where the sound is muffled or too quiet). The CP8 is the perfect tool to “fill” these gaps.
Despite its small size, the CP8 handles a “Power Rating” of 250W continuous and can reach a massive 1000W peak. “Power Rating” is the technical measure of how much electrical energy the speaker can safely handle from an amplifier. With a “Frequency Response” (the range of sound from deep bass to high treble) extending down to 50Hz, the CP8 provides a full-bodied sound that belies its small dimensions.
3. Built for Durability and Flexible Installation
Professional gear needs to withstand the rigors of daily use. The CP8 is constructed from a combination of 15mm and 18mm “Multi-plywood” (high-quality wood layers glued together for maximum strength and acoustic resonance). This cabinet is then finished with a “Black Polyurea” coating—a heavy-duty, scratch-resistant finish that keeps the speaker looking new even after years of service.
As a Versatile 8-Inch Point Source Speaker, the CP8 offers multiple “Rigging Points”. “Rigging” refers to the reinforced metal holes used to safely hang the speaker from walls or ceilings. Combined with its 80° x 80° “Nominal Coverage” (the specific angle at which the sound spreads out from the speaker), the CP8 ensures that you can aim the sound exactly where it needs to go, regardless of the room’s architectural challenges.
