Elevating the Sanctuary: A Premier Church Speaker Line Array System in South Korea

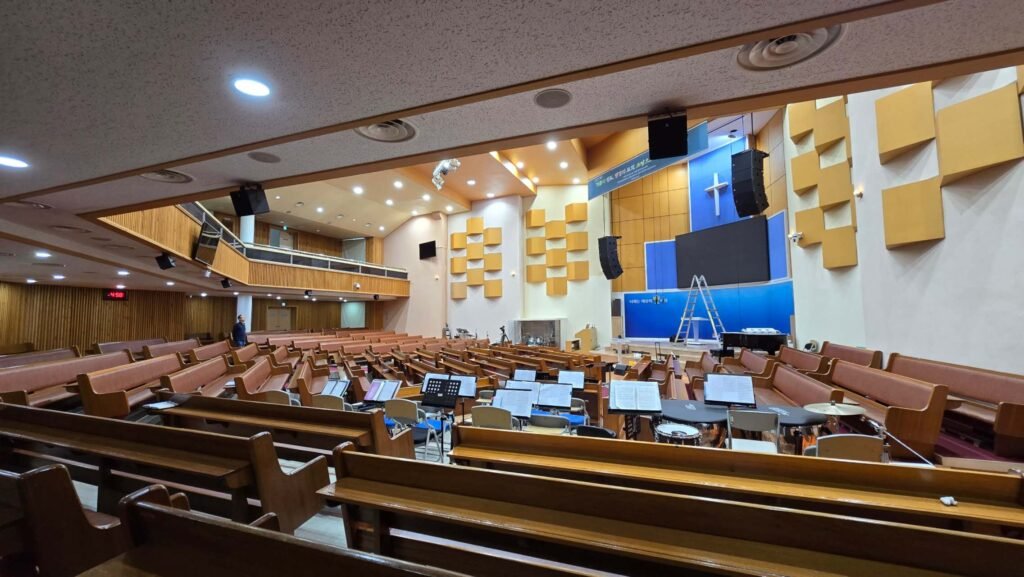

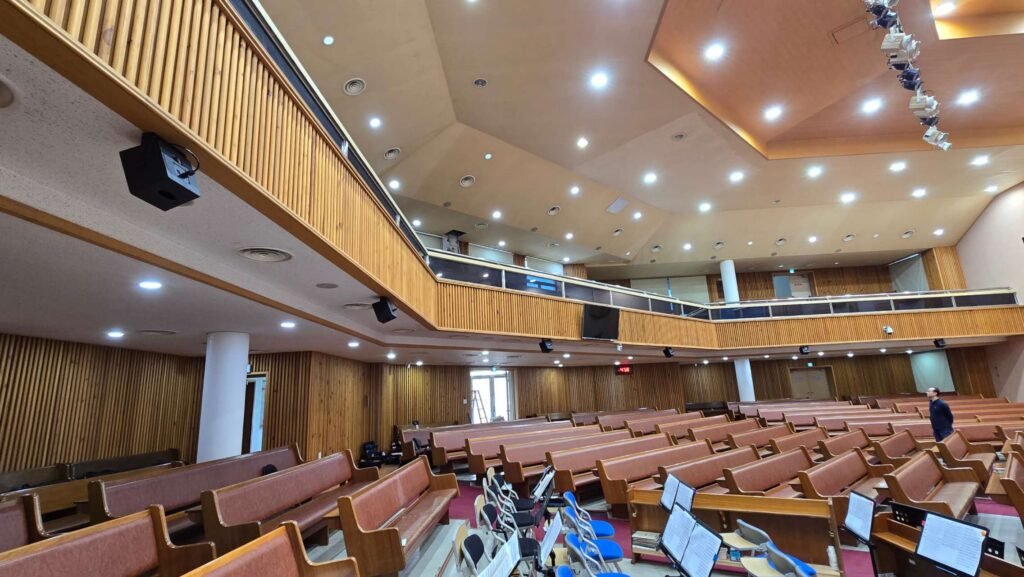

In the pursuit of spiritual connection, the primary tool of any modern sanctuary is its voice. Recently, ZSOUND PRO AUDIO had the privilege of supporting our esteemed Korean partner, Mr. Choi, in a sophisticated installation for a 500-seat sanctuary. The centerpiece of this project was a custom-configured Church speaker line array system (a vertical stack of identical loudspeakers designed to project a consistent sound level across a large audience area). By utilizing ten units of the LC12 and six units of the LC18S, we successfully addressed the unique acoustic challenges that historical and modern liturgical spaces often present.
For a house of worship, the audio requirements are far more demanding than a typical concert. It requires a balance of high-fidelity music reproduction for the choir and surgical precision for speech intelligibility (the measure of how clearly a listener can understand every spoken word from the pulpit). A Professional Line Array Speaker system like the LC series is designed specifically to focus sound energy on the congregation while avoiding the reflective surfaces of high ceilings and glass windows, which can create a “muddy” or echo-heavy environment.
Precision Engineering: The LC12 Coaxial Advantage

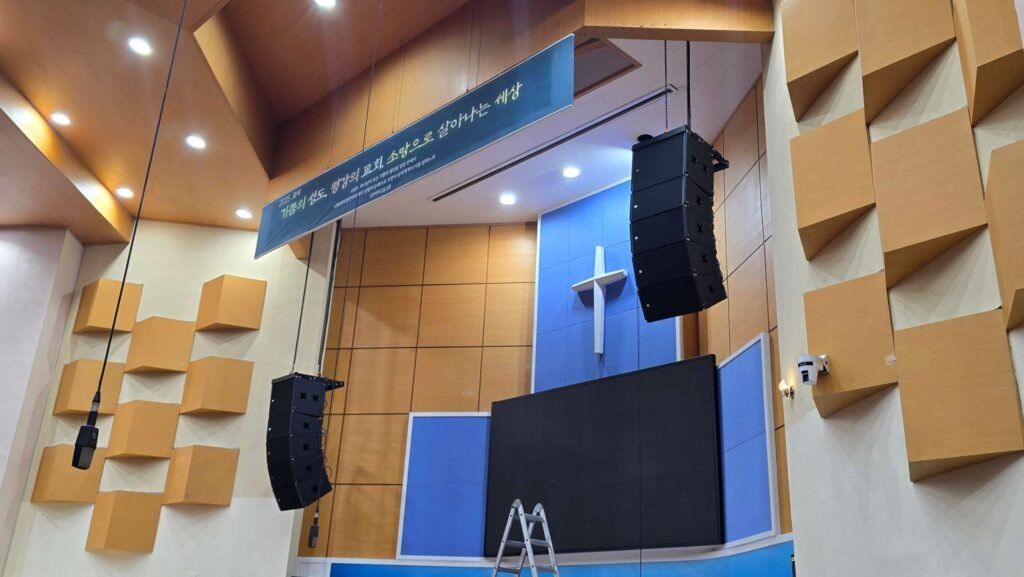

What truly differentiates this Church speaker line array system in the South Korean market is the coaxial technology (a design where the high-frequency and low-frequency components share the same central axis) within the LC12 modules. In a sanctuary environment, this design ensures that sound waves arrive at the listener’s ear at the exact same time, providing a “point-source” feel with the long-throw capabilities of a line array.
The LC12 features a 1.4-inch neodymium compression driver (a high-performance tweeter using rare-earth magnets for extreme magnetic force and low weight). This allows the system to reach a peak SPL (Sound Pressure Level – the standard unit for measuring acoustic loudness) of 137 dB. For the 500 guests in attendance, this provided massive “headroom” (the safety margin of volume available before the sound begins to crackle or distort), ensuring that even during high-energy worship songs, the audio remained crystalline and natural. To complement such high-fidelity audio, many consultants recommend dynamic liturgical illumination to create a visually serene atmosphere that supports the spiritual message.
Foundation of Depth: The LC18S Subwoofer Integration
While clarity is vital for the sermon, the emotional impact of worship music relies on a solid low-frequency foundation. For this Church speaker line array system, we deployed six LC18S subwoofers (large loudspeakers dedicated solely to the deepest bass frequencies). The LC18S is an amazing companion to the LC12, featuring a 100mm voice coil (the internal wire coil that moves the speaker cone to create sound) designed for high power handling and thermal stability.
Reaching down to a frequency response (the range of musical pitches a speaker can play) of 45 Hz, these 18-inch modules provided the rhythmic heartbeat of the room. Whether it was the deep resonance of a pipe organ or the rhythmic pulse of a contemporary worship band, the LC18S ensured that the bass was felt as much as it was heard. All cabinets were finished with black polyurea paintings (a rugged, waterproof, and scratch-resistant coating that acts like a suit of armor for the Baltic birch wood), ensuring the equipment maintains a professional, low-profile appearance for years to come.
Total Command: Tailoring Sound for 500 Guests

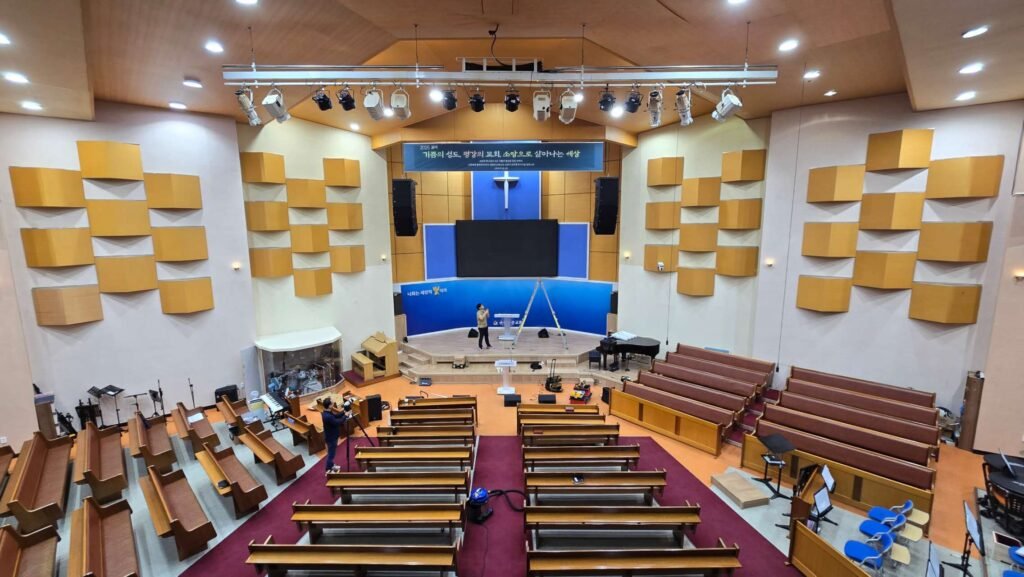

The success of the Korean project highlights the versatility of ZSOUND’s rigging hardware (the heavy-duty metal frames and pins used to secure and angle the speakers). Mr. Choi’s team was able to utilize our precision angle adjustments—variable from 0 to 10 degrees—to perfectly map the sound coverage to the sanctuary’s seating layout. This level of control ensures that there are no “dead zones” in the hall, providing every guest with the same high-fidelity experience.
Investing in a high-quality Church speaker line array system is an investment in the community’s experience. We want to extend our deepest gratitude to Mr. Choi for his unwavering support of the ZSOUND brand in South Korea. If you are looking to master your space with absolute power and clarity, our engineering team is ready to help you define your vision with the perfect sound.
FAQ About Church Audio Solutions
Q: Can we use this system for outdoor church festivals? A: Yes. The LC12 and LC18S are built with premium Baltic birch plywood and polyurea armor, making them durable enough for outdoor events, provided you have proper weather protection for the electronic inputs.
Q: Is the LC12 system easy to install in existing buildings? A: Absolutely. The LC12 weighs only 29 kg, which is significantly lighter than many competing 12-inch modules, making it easier to mount on existing structural beams or fly from the ceiling.
Q: Does ZSOUND provide tuning support? A: We provide comprehensive technical data and recommended DSP settings to ensure your Church speaker line array system is perfectly aligned for your specific room acoustics.
