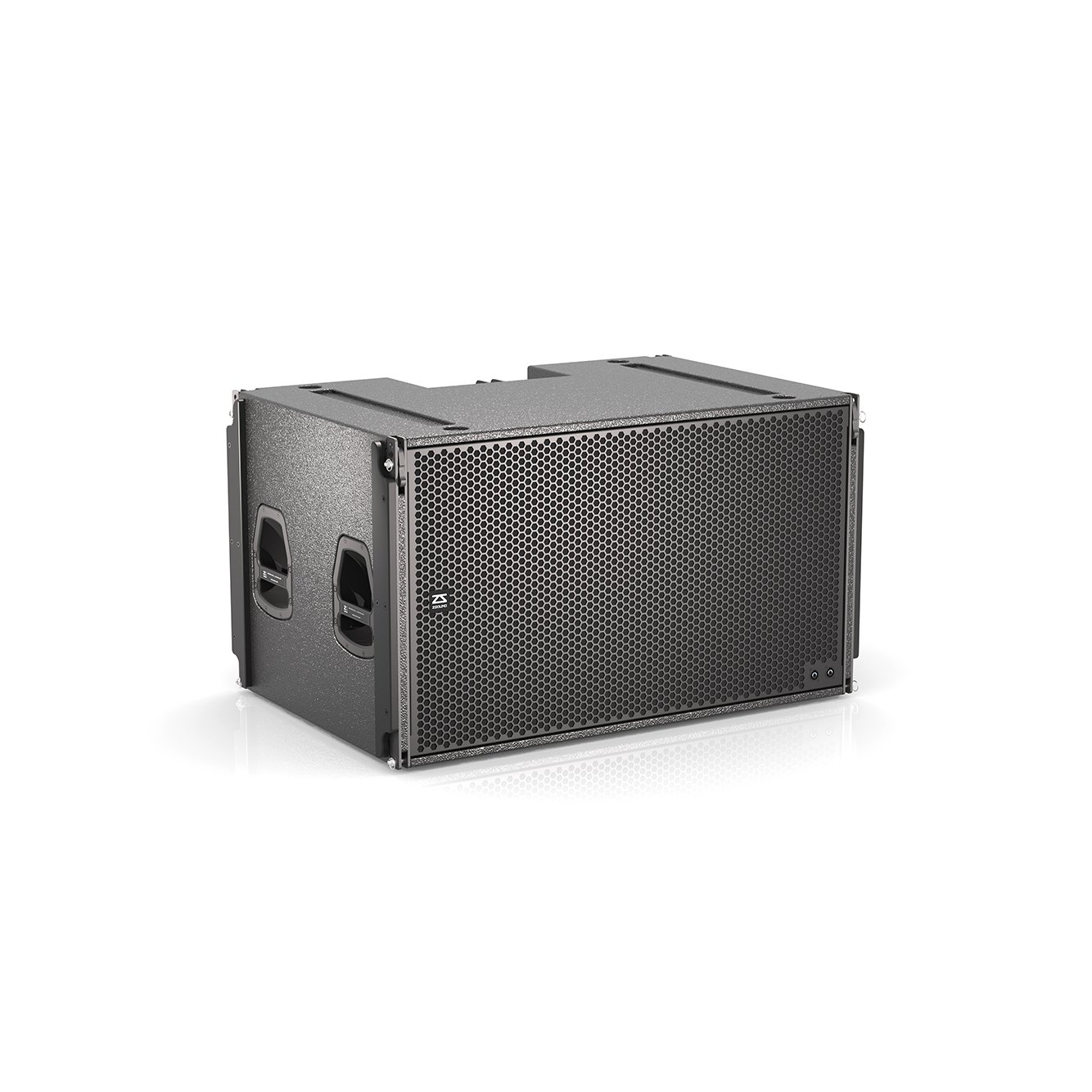

VCSUB 21 inch subwoofer
Applications
- Touring performance
- Stadium
- Theatre
Feature
- 135mm (Large-size) Voice Coil
- Neodymium Woofer
- Cardioid Directivity Mode (when stacked)
- Multi-point Rigging (Three-point hanging, four-point stacking)
- Birch Multi-Plywood Construction
Technical Specification
| Parameter Name | Parameter Value |
|---|---|
| FREQUENCY RESPONSE | 30 Hz-150 Hz (±3 dB), 25 Hz-200 Hz (-10 dB) |
| NOMINAL COVERAGE (-6dB) | Non-directional |
| SENSITIVITY (±1w/1m) | 97 dB SPL |
| POWER RATING (AES) | 1800W |
| NOMINAL IMPEDANCE | 8 ohm |
| MAXIMUM SPL | 129 / 135 dB SPL peak |
| DRIVERS | 1×21″ (135mm Voice coil neodymium) woofer |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| DIMENSIONS (HxWxD) | 590 x 1030 x 674 mm |
| WEIGHT | 84 kg |
| CONNECTORS | 2 x 4 WP4, 2 x 4 NL4 |
| SPEAKER CABLES | WP4: 1-2+… NL4: 1+1-… |
| MATERIALS | 18mm, 24mm birch multi-plywood |
| FINISH | Black polyurea paintings |
| GRILLE | Black epoxy mesh grille with acoustically reticulated cloth |
| RIGGING | Cardioid directivity, can be stacked at four points |
