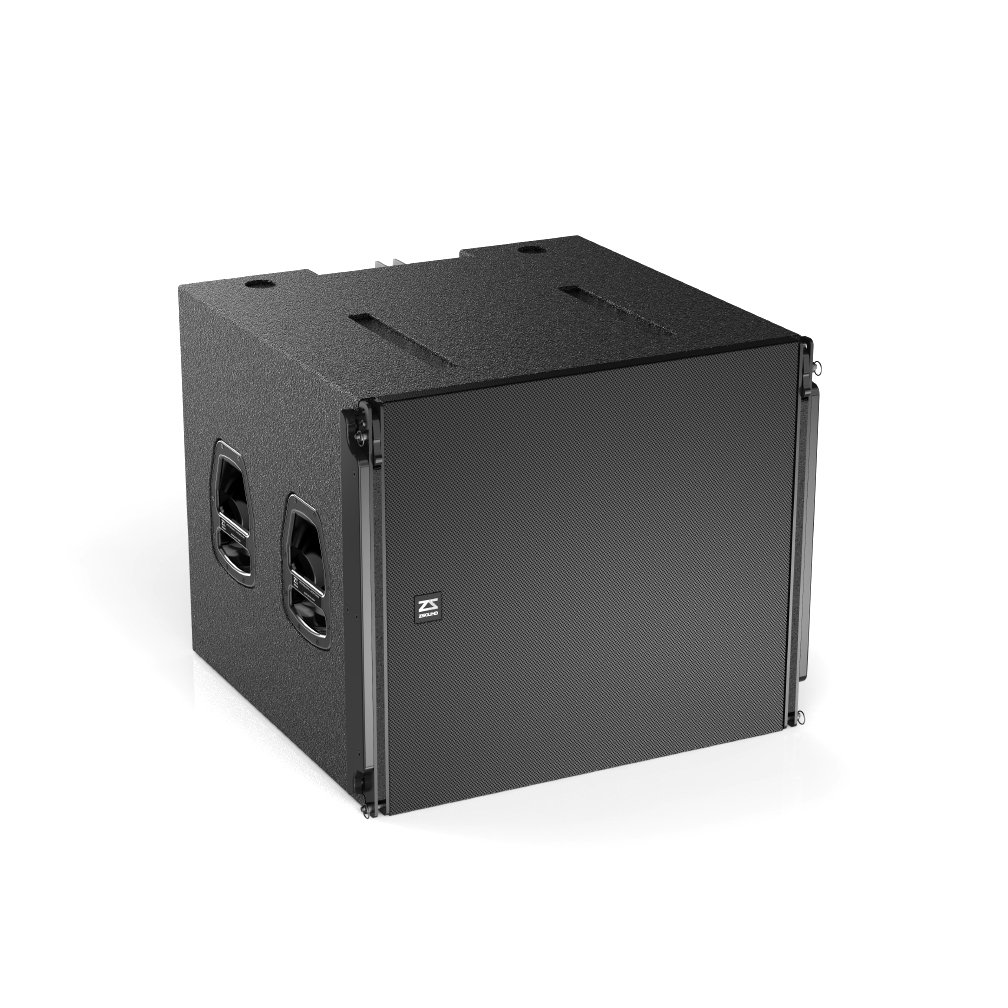

VCS Dual 15 inch subwoofer
Applications
- Subwoofer with VCM
- Stadium
Feature
- Soft and low frequency elastic
- 75mm voice coil long throw high power LF driver
- Small volume, vented, horn preposition design
Technical Specification
| Parameter Name | Parameter Value |
|---|---|
| Frequency Response | 38 Hz-200 Hz (±3 dB), 25 Hz-320 Hz (-10 dB) |
| Nominal Coverage (-6dB) | Omnidirectional |
| Sensitivity (@1w/1m) | 102 dB (40-200 Hz) SPL |
| Power Rating (AES) | 1200W |
| Nominal Impedance | 8 ohm |
| Maximum SPL | 139 dB (peak) |
| Drivers | 2x 15″ (75mm voice coil) woofer |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| Dimensions (HxWxD) | 483 x 700 x 730 mm |
| Weight | 46 kg |
| Connectors | 2 x NL4 connectors |
| Speaker Cables | 1+1- |
| Materials | 18mm Baltic birch plywood |
| Finish | Black Polyurea paintings |
| Grille | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging | 0° |
| Diagrams | Front, Top, Side views provided in image |
