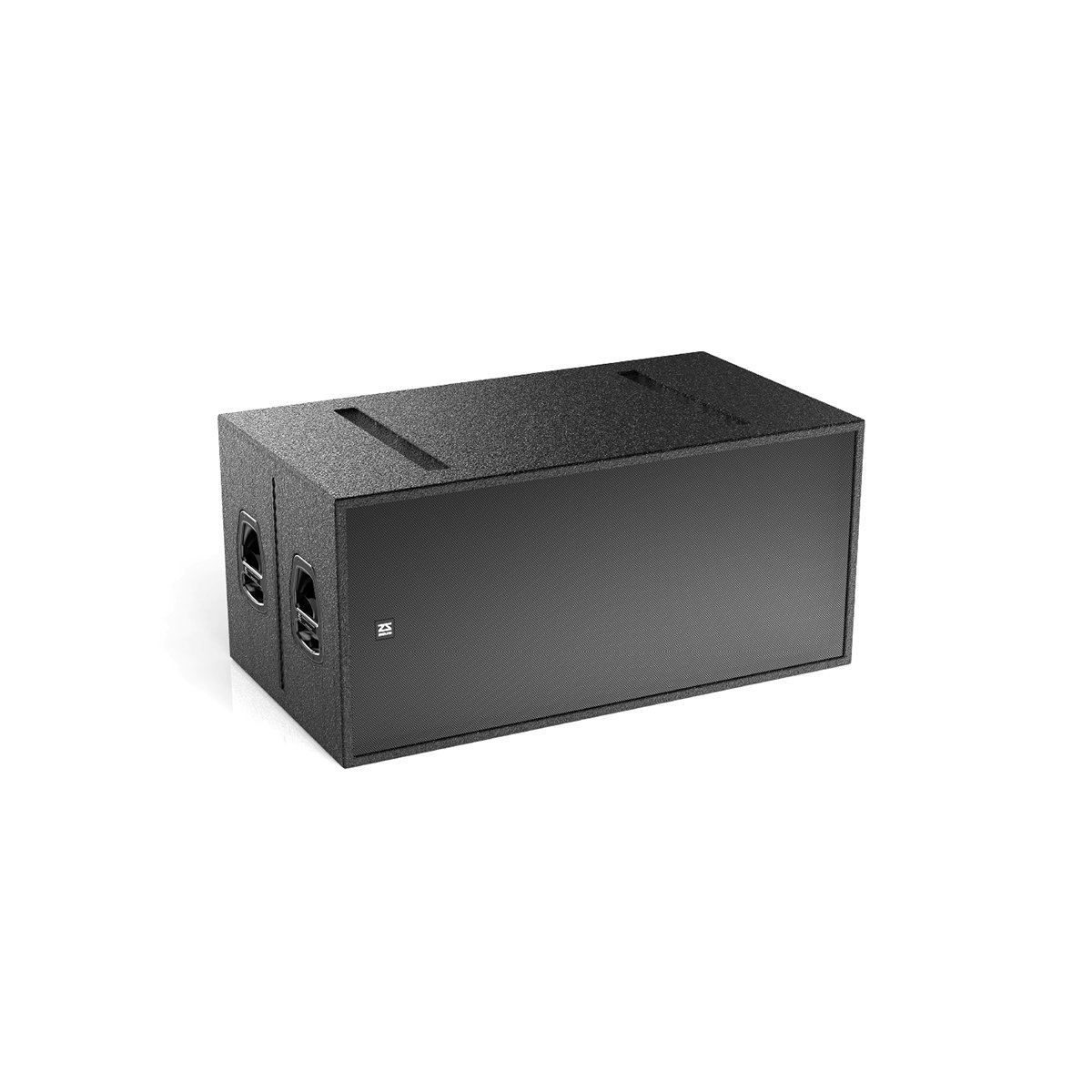

SS2 Dual 18 inch subwoofer

Applications

  • Touring performance
  • Stadium
  • Theatre

Feature

  • 2400W (AES) LF driver
  • Thick and elastic lows
  • Provide 22 Hz-250 Hz frequency response
  • Mounted wear-resistant Nylon bar

Technical Specification

Parameter NameParameter Value
FREQUENCY RESPONSE22hz-250hz
NOMINAL COVERAGE (-6dB)Omnidirectional
SENSITIVITY (@1w/1m)101 dB SPL
POWER RATING 2*2400W AES, 2*9600W PEAK
NOMINAL IMPEDANCE4 ohm
MAXIMUM SPL145 dB (peak)
DRIVERSLF: 2×18″ waterproof driver

Physical Data

Parameter NameParameter Value
Dimensions (HxWxD)575 x 1240 x 680 mm / 23″x49″x27″
WEIGHT90 kg / 198 lbs
CONNECTORS2 x NL4 connectors
SPEAKER CABLES1+1-
MATERIALS25mm and 30mm Baltic birch plywood
FINISHBlack Polyurea paintings
GRILLEBlack epoxy mesh grille with acoustically reticulated cloth
