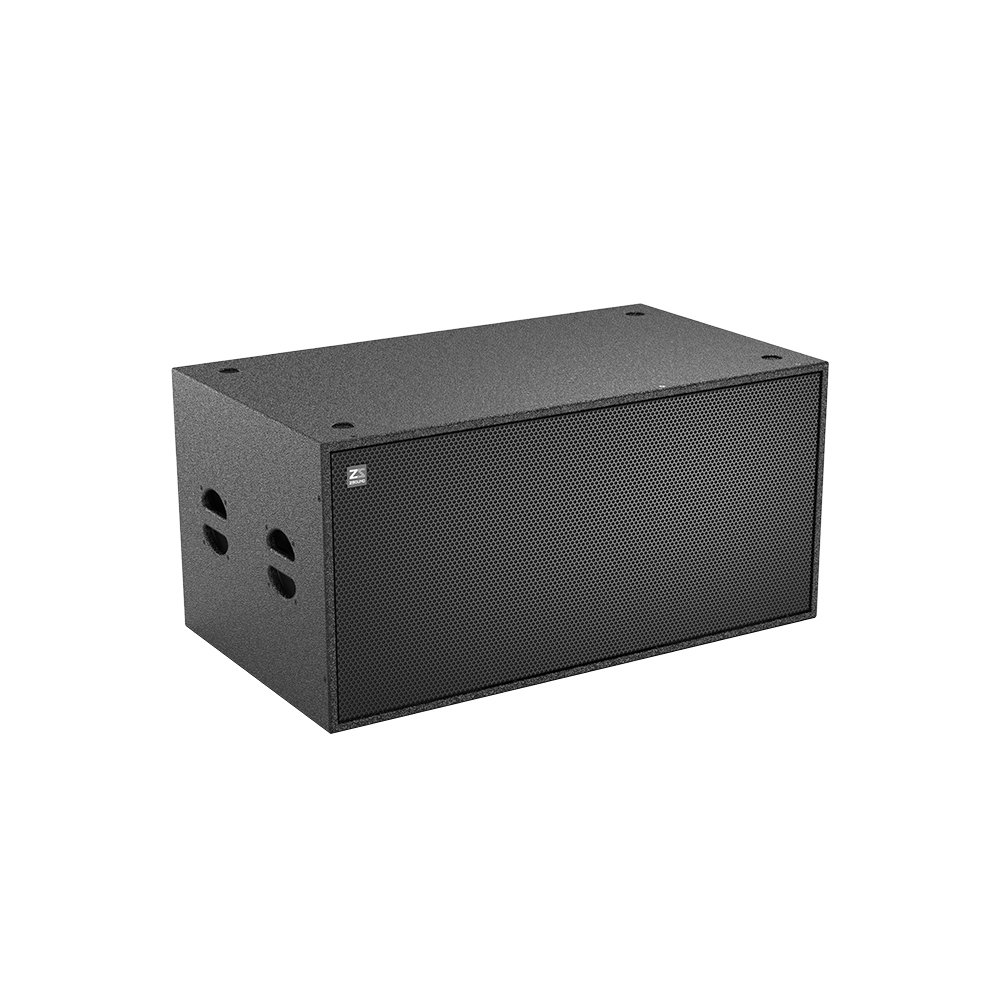

S28 Dual 18 inch subwoofer
Applications
- Touring performance
- Club, multi-function hall
- Church
Feature
- Vented, horn preposition design
- 100mm voice coil, high transient response woofer
- Thick and elastic hearing
Technical Specification
| Parameter Name | Parameter Value |
|---|---|
| FREQUENCY RESPONSE | 32 Hz-180 Hz (±3 dB), 30 Hz-250 Hz (-10 dB) |
| NOMINAL COVERAGE | Omnidirectional |
| SENSITIVITY (±1w/1m) | 102 dB SPL |
| POWER RATING (AES) | 1600W |
| NOMINAL IMPEDANCE | 8 ohm |
| MAXIMUM SPL | 141 dB (peak) |
| DRIVERS | 2 x 18″ (100mm voice coil) subwoofer |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| DIMENSIONS (HxWxD) | 561 x 1165 x 670 mm |
| WEIGHT | 76 kg / 168 lbs |
| CONNECTORS | 2 x NL4MP Neutrik Speakon connectors |
| SPEAKER CABLES | 1+1- |
| MATERIALS | 18mm, 24mm birch plywood |
| FINISH | Black polyurea paintings |
| GRILLE | Black epoxy mesh grille with acoustically reticulated foam |
| DIAGRAMS | Front, Side, Top views with dimensions (670, 1165, 561 mm) and Impedance chart provided |
