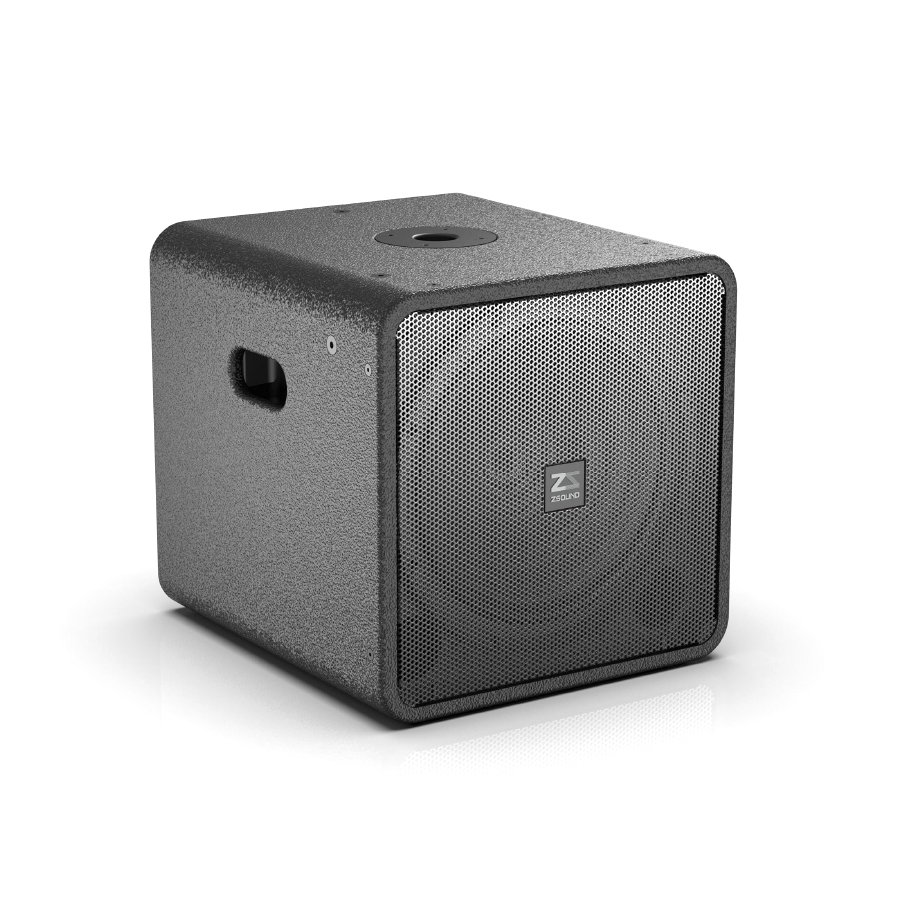

S12P Active 12 inch subwoofer
Applications
- Meeting room
- Background music
Feature
- Use a high efficiency 12 inch ferrite woofer driver
- The appearance is small and exquisite, and it can be used with small engineering speakers
- Three-channel 500W@4 ohm+DSP active module (Support 2.1 mode)
Technical Specification
| Parameter Name | Parameter Value |
|---|---|
| FREQUENCY RESPONSE | 55 Hz-150 Hz (±3dB), 45 Hz-120 Hz (-10dB) |
| NOMINAL COVERAGE (±9dB) | Omnidirectional |
| AMPLIFIER MODULE | Three-channel 500W@4Ω + DSP active module (Support 2.1 mode) |
| ACTIVE GAIN | 32 dB |
| CROSSTALK | < -70 dB |
| INPUT IMPEDANCE | 20 kΩ balanced / 10 kΩ unbalanced |
| THD+N | < 0.05% |
| SIGNAL NOISE RATIO | > 95 dB |
| COMMON MODE REJECTION RATIO | > 50 dB |
| MAXIMUM SPL | 120 dB SPL, 126 dB SPL peak |
| VOLTAGE REQUIREMENT | 200-240VAC 50Hz |
| DRIVERS | 1×12″ ferrite bass (75mm voice coil) |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| DIMENSIONS (HxWxD) | 365 x 365 x 400 mm |
| WEIGHT | 15 kg |
| CONNECTION PLUG | XLR |
| MATERIALS | 15mm Baltic birch plywood |
| FINISH | Black polyurea paintings / white water paintings |
| GRILLE | Black epoxy mesh grill |
| RIGGING/STACK | Top support hole |
| DIAGRAMS | Front, Side, Top views provided (365mm H, 365mm W, 400mm D) |
