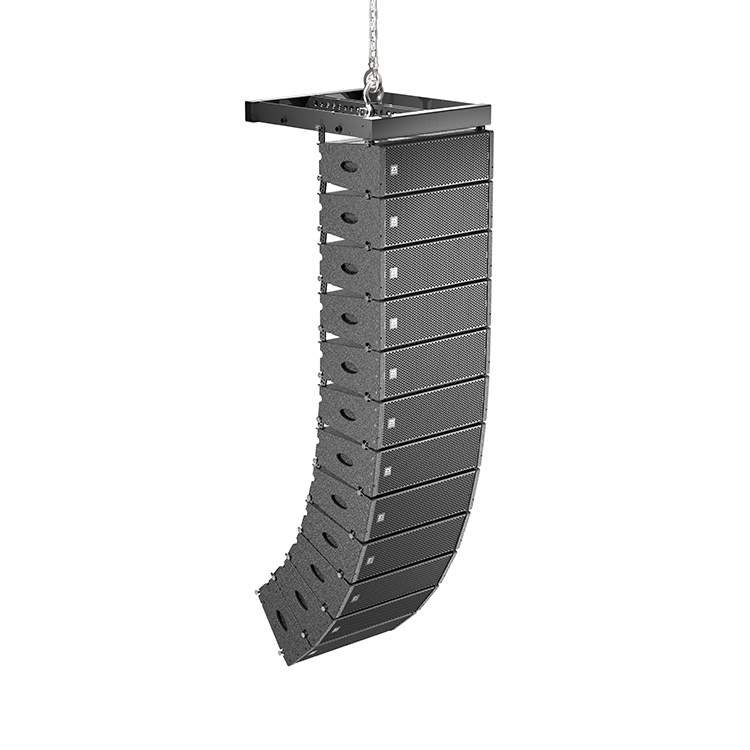

LA206

Item No.: LA206
Dual 6 inch line array speaker
  • FREQUENCY RESPONSE100 Hz ~ 18 kHz (± 3 dB) 80 Hz ~ 20 kHz (-10 dB)
  • Nominal Coverage (-6dB)90° (Horizontal), 10° (Vertical) adjustable
  • Sensitivity (@1W/1M)96 dB SPL
  • Power Rating (AES)240W
  • Nominal Impedance16 ohm
  • Maximum SPL119 dB SPL continuous, 125 dB SPL peak
  • More Less
    Description Review
    Description
    LA206
    Dual 6 inch line array speaker


    Applications
    Touring Performance
    Theatre and Multi-Function Hall
    Church
    Features
    Compact bi-amp system for flexible sound control
    Neodymium high-sensitivity driver for maximum headroom
    Small enclosure with a lightweight design, offering a high SPL to volume ratio
    Combined system with LA206S
    Technical Specification
    Frequency Response:
    100 Hz ~ 18 kHz (± 3 dB)
    80 Hz ~ 20 kHz (-10 dB)
    Nominal Coverage (-6dB): 90° (Horizontal), 10° (Vertical) adjustable
    Sensitivity (@1W/1m): 96 dB SPL
    Power Rating (AES): 240W
    Nominal Impedance: 16 ohm
    Maximum SPL: 119 dB SPL continuous, 125 dB SPL peak
    Drivers:
    LF: 2x6.5" drivers
    HF: 1x1.4" compression driver
    Physical Data
    Dimensions (HxWxD): 214 × 598 × 340 mm / 8.4" x 23.5" x 13.4"
    Weight: 15 kg / 33.1 lbs
    Connectors: NEUTRIK NL4MP × 2
    Speaker Cables: 1+1-
    Materials: 9mm, 15mm multi-plywood
    Finish: Black polyurea paintings
    Grille: Adjustable at 0, 1, 3, 4, 6, 7, 9, 10° degrees

    The LA206 is a high-performance line array speaker designed for professional touring performances, theatres, and multi-function halls, as well as houses of worship. This compact bi-amp system features Neodymium high-sensitivity drivers that deliver maximum headroom and clear, powerful sound. With a small enclosure and lightweight design, the LA206 offers an impressive SPL to volume ratio, making it an ideal choice for applications where sound quality and mobility are paramount.
