PO-SUBP

PO-SUBP

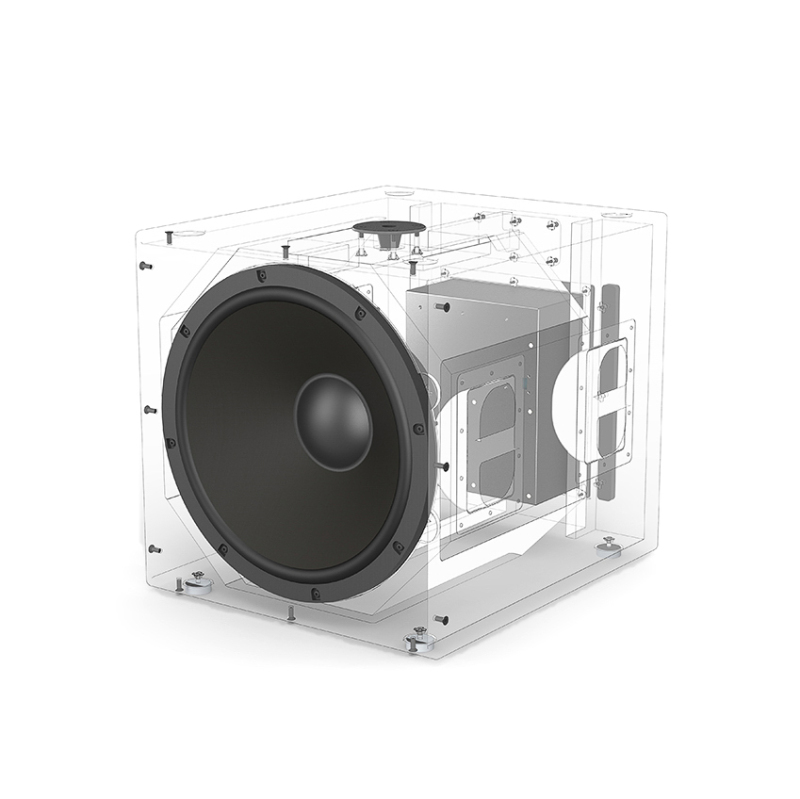

active 18 inch subwoofer speaker



Applications
Conference Systems
Medium-Sized Performances

Features
Built-in Amplifier and DSP: Self-powered subwoofer designed for seamless integration with PO45K.
Compact 18" Subwoofer Speaker: Ideal for medium-sized performances and installations.
Direct Radiation Type: Small subwoofer with low frequency limit down to 35Hz (-10dB).

Technical Specifications
Frequency Response: 40 Hz - 120 Hz (± 3 dB) / 35 Hz - 180 Hz (-10 dB)
Nominal Coverage: Omnidirectional
Maximum SPL: 134 dB SPL peak
Drivers: LF 1x18" woofer (100mm voice coil)
Peak Power: 6000W
Power Requirement: 200-240V~50-60Hz
Amplifier Module: Dual channel 2000W
Total Harmonic Distortion: 0.82%
Signal-to-Noise Ratio (SNR): 104dB
Cooling System: Airflow from back to front, forced cooling
Output Electric Circuit: Class D circuit

Physical Data
Dimensions (HxWxD): 534 × 526 × 596mm
Weight: 42 kg / 92.42 lbs
Connectors: USB, RJ45, XLR, PowerCON, SpeakON
Materials: 15mm, 18mm Baltic birch plywood
Finish: Black Polyurea painting
Grille: Black epoxy mesh grille with acoustically reticulated cloth
