G8

G8

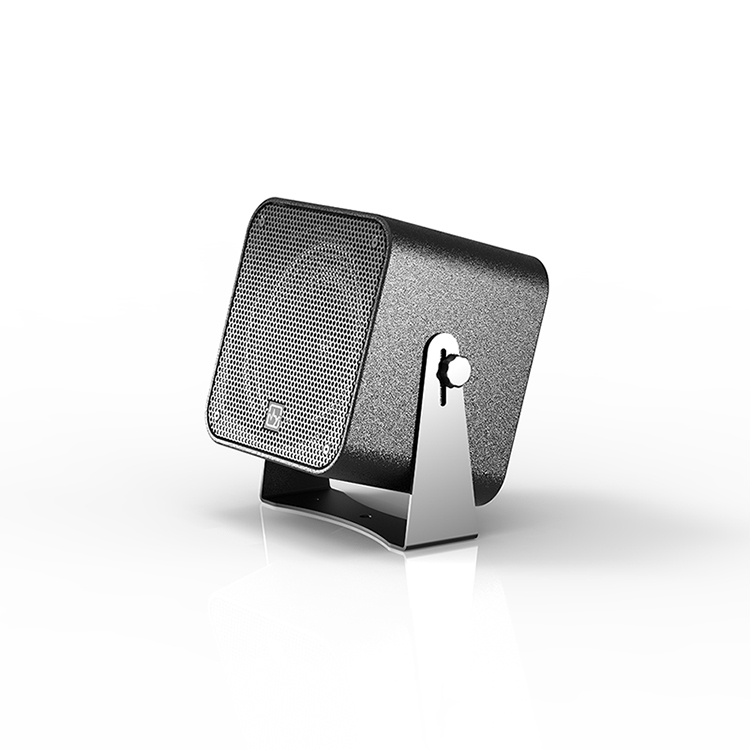

8 inch full range speaker



Applications
Dining bar
Meeting room
Classroom

Features
50mm Big Voice Coil: Delivers powerful and deep bass response.
80Hz Low Frequency Response: Ensures a wide range of audible frequencies.
Excellent Sound Performance: Provides high-quality audio output for various environments.

Technical Specifications
Frequency Response: 100 Hz ~ 20 kHz (±3 dB) / 80 Hz ~ 20 kHz (-10 dB)
Nominal Coverage (-6dB): 80° (H) x 80° (V) Constant directivity
Sensitivity (@1w/1m): 94 dB SPL
Peak Power: 600W
Nominal Impedance: 8 ohm
Maximum SPL: 115 dB / 121 dB SPL peak
Drivers: 1 x 8" Full range driver (50mm voice coil)

Physical Data
Dimensions (HxWxD): 234 × 234 × 183 mm
Weight: 9.8 kg
Connectors: Terminal
Speaker Cables: Red (+), Black (-)
Materials: 9mm, 12mm multi-plywood
Finish: Black polyurea paintings
Grille: Black epoxy mesh grille with acoustically reticulated foam
Rigging: Lifting point
