G6

G6

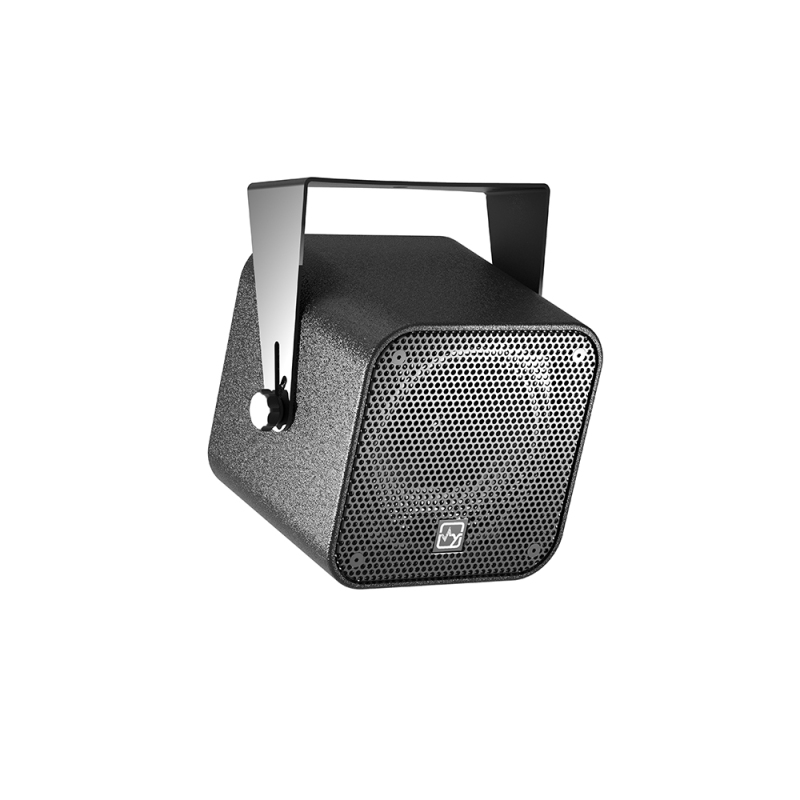

6 inch full rang speaker


Applications
Dining bar
Meeting room
Classroom

Features
38mm Neodymium Full Range Driver: Delivers a smooth and wide frequency response.
Excellent Sound Performance: Provides high-quality audio output for various environments.

Technical Specifications
Frequency Response: 120 Hz ~ 20 kHz (± 3dB) / 100 Hz ~ 20 kHz (± 6dB)
Nominal Coverage (-6dB): 80° (H), 80° (V) Constant directivity
Sensitivity (@1W/1m): 94 dB SPL
Peak Power: 520W
Nominal Impedance: 8 ohm
Maximum SPL: 115 dB / 121 dB SPL peak
Drivers: 1 × 6" Full range driver (38mm voice coil)

Physical Data
Dimensions (HxWxD): 201 × 201 × 183 mm
Weight: 3.5 kg
Connectors: Terminal
Speaker Cables: Red (+), Black (-)
Materials: 9mm, 12mm multi-plywood
Finish: Black polyurea paintings
Grille: Black epoxy mesh grille with acoustically reticulated foam
Rigging: Lifting point
