LA18S
18 inch sub speaker
- Versatile for live shows, theatres, and churches.
- Advanced vented design with 18-inch woofer.
- 800W power, 135dB peak SPL for immersive bass.
Applications
- Living performance
- Theatre and multi-function hall
- Church
- more 18 inch sub speaker cases
Features

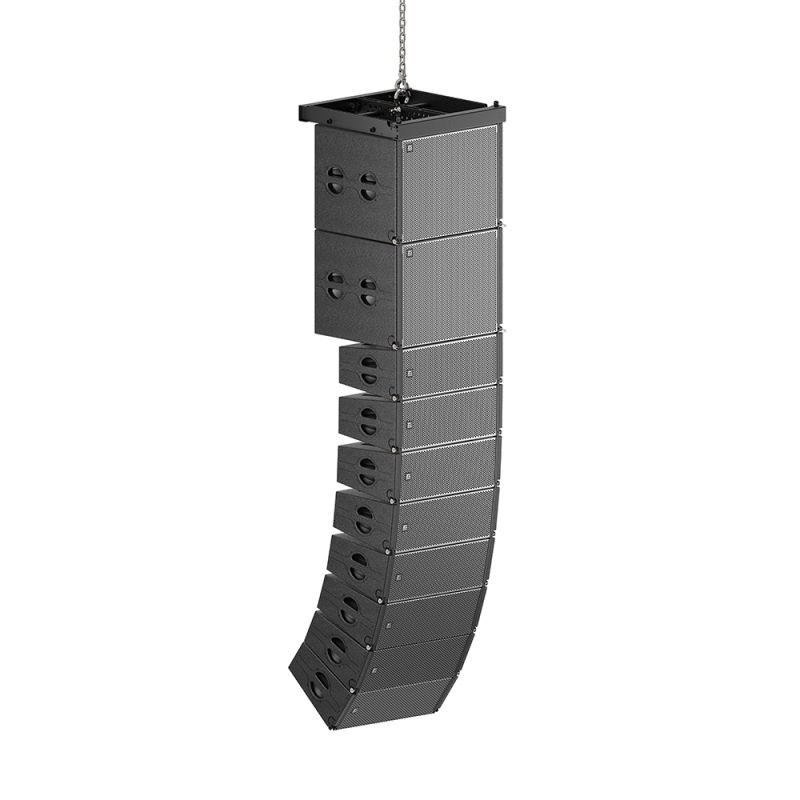

- Subwoofer with LA210
- Vented, horn preposition design
- Direct radiation 18-inch woofer
- Large inverting hole reducing airflow sound
Technical Specifications
| Parameter | Details |
|---|---|
| Frequency Response | 32 Hz – 180 Hz (+3 dB), 30 Hz – 250 Hz (-10 dB) |
| Nominal Coverage | Omnidirectional |
| Sensitivity (1w/1m) | 99 dB SPL |
| Power Rating (AES) | 800W |
| Nominal Impedance | 8 ohm |
| Maximum SPL | 135 dB (peak) |
| Drivers | 1×18″ (75mm voice coil) subwoofer |
Physical Data
| Parameter | Details |
|---|---|
| Dimensions (H×W×D) | 530 × 730 × 600 mm |
| Weight | 42 kg / 93 lbs |
| Connectors | 2×NL4MP Neutrik Speakon connectors |
| Speaker Cables | 1+1- |
| Materials | 18mm, 24mm birch multi-plywood |
| Finish | Black polyurea paintings |
| Grille | Black epoxy mesh grille with acoustically reticulated foam |
