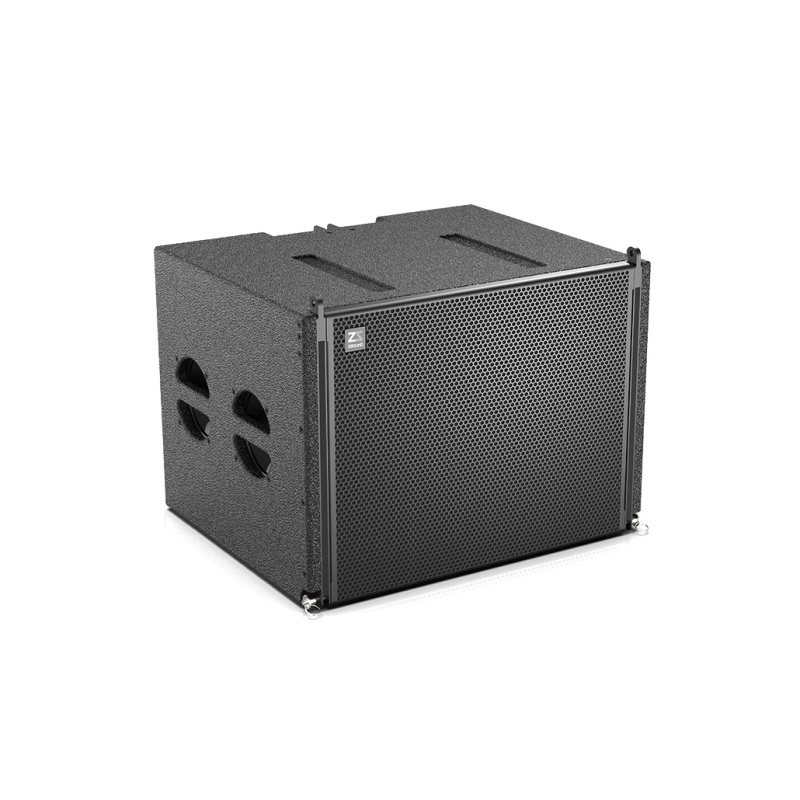

LA18SP18 inch active subwoofer
Applications:Live Performances
Theatre and Multi-Function Halls
Churches
Features:Designed as a subwoofer to pair with the
LA210 system
Vented, horn preposition design for enhanced acoustic performance
Direct radiation 18-inch woofer for powerful bass output
Large inverting hole to minimize airflow noise
Technical Specifications:Frequency Response: 32 Hz - 180 Hz (±3 dB), 30 Hz - 250 Hz (-10 dB)
Nominal Coverage: Omnidirectional
Sensitivity (@1W/1m): 99 dB SPL
Peak Power: 3200W
Driver: 1 x 18" (75mm voice coil) subwoofer
Power Requirement: 200-240V~ 50-60Hz
Amplifier Module: Dual channel 2000W
Total Harmonic Distortion (THD): 0.82%
Signal-to-Noise Ratio (SNR): 104 dB
Cooling System: Airflow from back to front, forced cooling
Output Electric Circuit: Class D circuit
Physical Data:Dimensions (HxWxD): 530 x 730 x 600 mm
Weight: 42 kg / 93 lbs
Connectors: 2 x NL4MP Neutrik Speakon connectors
Speaker Cables: 1+1-
Materials: 18mm, 24mm birch multi-plywood
Finish: Black polyurea paintings
Grille: Black epoxy mesh grille with acoustically reticulated foam
