10 inch Full Range Line Array Neodymium High-Sensitivity Compression Drive Speaker
We use cookies to improve your online experience. By continuing browsing this website, we assume you agree our use of cookies.

LA110-E

Item No.: LA110-E
  • FREQUENCY RESPONSE60 Hz - 18 kHz (±3 dB), 50 Hz - 20 kHz (-10 dB)
  • Nominal Coverage (-6dB)100° (Horizontal) x 10° (Vertical), adjustable
  • Sensitivity (@1W/1M)HF: 112 dB, LF: 103 dB
  • Power Rating (AES)350W
  • Nominal Impedance16 ohm
  • Maximum SPLHF: 137 dB, LF: 134 dB
  • Drivers1 x 10" woofer, 1 x 3" compression driver
  • More Less
    Description Review
    Description

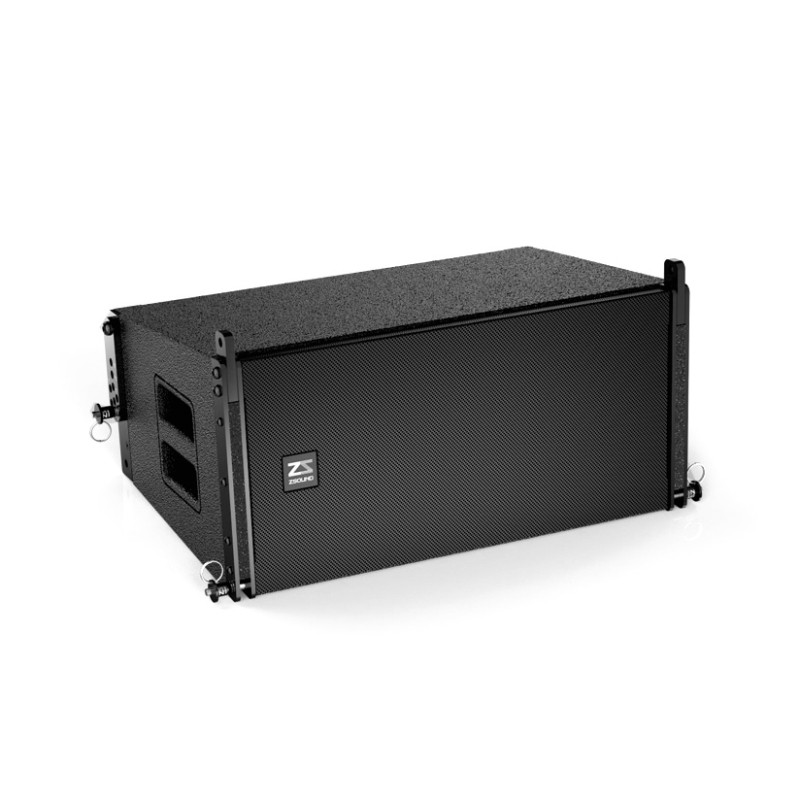

    LA110-E
    10 inch line array speaker


    Applications:
    Full Range Line Array Speaker for large-scale sound reinforcement.
    Ideal for Theatre and Multi-Function Halls where sound needs to reach every corner.
    Perfect for Churches to ensure clear audio throughout the sanctuary.

    Features:

    Designed as a full range line array speaker for consistent sound dispersion.
    Equipped with a Neodymium high-sensitivity driver for maximum headroom and clarity.
    Features a small, lightweight enclosure with a high SPL to volume ratio for efficient sound projection.

    Technical Specifications:

    Frequency Response: 60 Hz - 18 kHz (±3 dB), 50 Hz - 20 kHz (-10 dB)
    Nominal Coverage (-6dB): 100° (Horizontal) x 10° (Vertical), adjustable
    Sensitivity (@1W/1m): HF: 112 dB, LF: 103 dB
    Power Rating (AES): 350W
    Impedance: 16 ohm
    Nominal Cover: 90° (Horizontal), 10° (Vertical)
    Maximum SPL: HF: 137 dB, LF: 134 dB
    Drivers: 1 x 10" woofer, 1 x 3" compression driver

    Physical Data:

    Dimensions (HxWxD): 308 x 580 x 390 mm / 12" x 23" x 15"
    Weight: 23 kg / 51 lbs
    Connectors: 2 x NL4 connectors
    Speaker Cables: 1+1-...Full range
    Materials: 15mm, 18mm Baltic birch plywood
    Finish: Black polyurea paint
    Grille: Black epoxy mesh grille with acoustically reticulated foam
    Rigging: 0, 1, 2, 3, 4, 5, 7.5, 10 degree adjustable

    What is the difference in power rating between the LA110 and LA110-E speakers?

    A: The LA110 features distinct power ratings for its high-frequency (HF) and low-frequency (LF) drivers, which are 80W for HF and 350W for LF. This suggests that it has separate amplification channels for each frequency range, which is typical for bi-amp systems. On the other hand, the LA110-E has a single power rating of 350W, which might indicate that it has a single amplification channel for its full-range drivers, suitable for line array applications where a consistent power distribution across the frequency spectrum is required.
