Modular Line Array System: The Ultimate Solution for Versatile Audio Needs
Discover the Flexibility and Performance of Our Modular Line Array System
In the world of professional audio, a modular line array system stands out as a versatile and powerful solution. At ZSOUND, we offer a range of high-quality modular line array systems that can be tailored to meet the specific needs of various venues and events. Let’s explore some of our most popular combinations and how they can enhance your audio experience.
LA210 and LA18S Combination
Our LA210 is a dual 10-inch line array speaker designed for small to medium-sized venues such as theaters, multipurpose halls, and churches. When paired with the LA18S subwoofer, this combination provides a complete audio solution. The LA210 offers a frequency response of 50 Hz – 20 kHz (±3 dB) and a sensitivity of 98 dB SPL, making it ideal for delivering clear and powerful sound. The LA18S subwoofer, with its 18-inch driver, extends the low-frequency response down to 32 Hz, ensuring deep and impactful bass.
For small to medium-sized venues, a typical configuration would include:
- 4-6 LA210 speakers
- 2-4 LA18S subwoofers
LA210P-III and LA18SP-III Combination
The LA210P-III is an active version of the LA210, featuring built-in amplifiers and DSP processing. This makes setup and operation even more straightforward. The LA18SP-III is an active subwoofer with a compact vented horn-loaded design, providing excellent low-frequency extension and reduced airflow noise.
A common configuration for this combination in small to medium-sized venues is:
- 4-6 LA210P-III speakers
- 2-4 LA18SP-III subwoofers

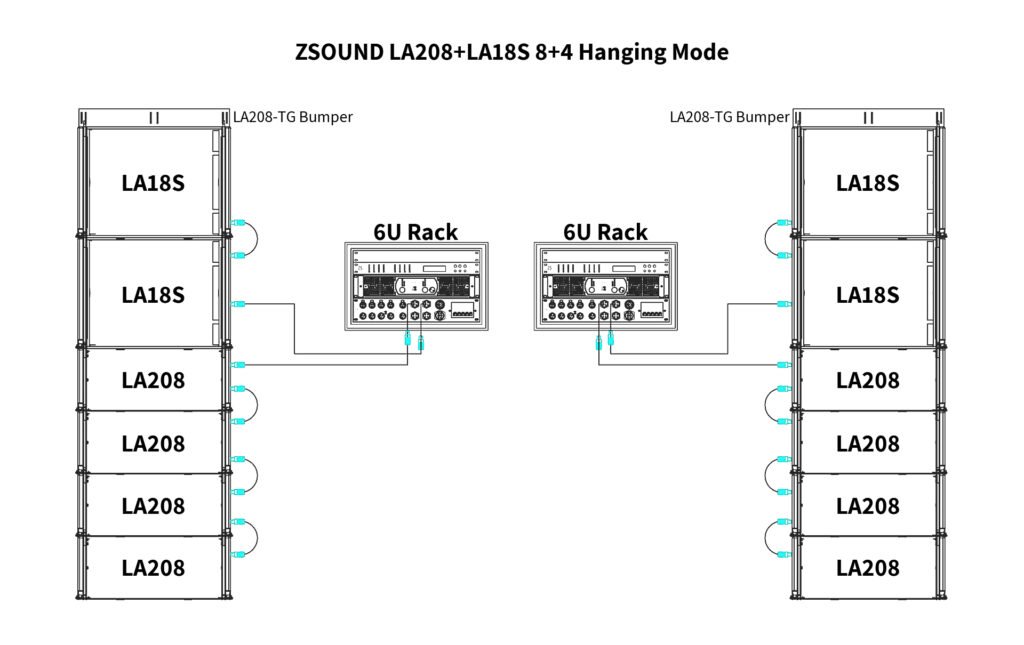

LA208 and LA18S Combination
For those who prefer a smaller form factor, the LA208 is a dual 8-inch line array speaker. It features a 75mm voice coil and a compact design, making it perfect for installations where space is limited. Pairing the LA208 with the LA18S subwoofer ensures a full-range audio experience with deep, rich bass.
A typical configuration for this combination in small to medium-sized venues is:
- 4-6 LA208 speakers
- 2-4 LA18S subwoofers
Installation and Setup
Installing a modular line array system involves several key steps:
- Preparation: Ensure all equipment is in good condition and all cables are intact.
- Flying the LA210/208 Speakers: Choose an appropriate hanging point, install the rigging hardware, and connect the speakers. Use a manual winch to adjust the angles for optimal coverage.
- Placing the Subwoofers: Position the subwoofers in front of or on the sides of the stage. For better low-frequency control, consider using a cardioid configuration.
- System Tuning: Set the crossover points (typically around 100 Hz), use a DSP processor for EQ, delay, and compression, and test the system with reference audio to ensure balanced and uniform sound coverage.
By following these steps, you can create a modular line array system that delivers exceptional audio quality and flexibility, suitable for a wide range of applications.
