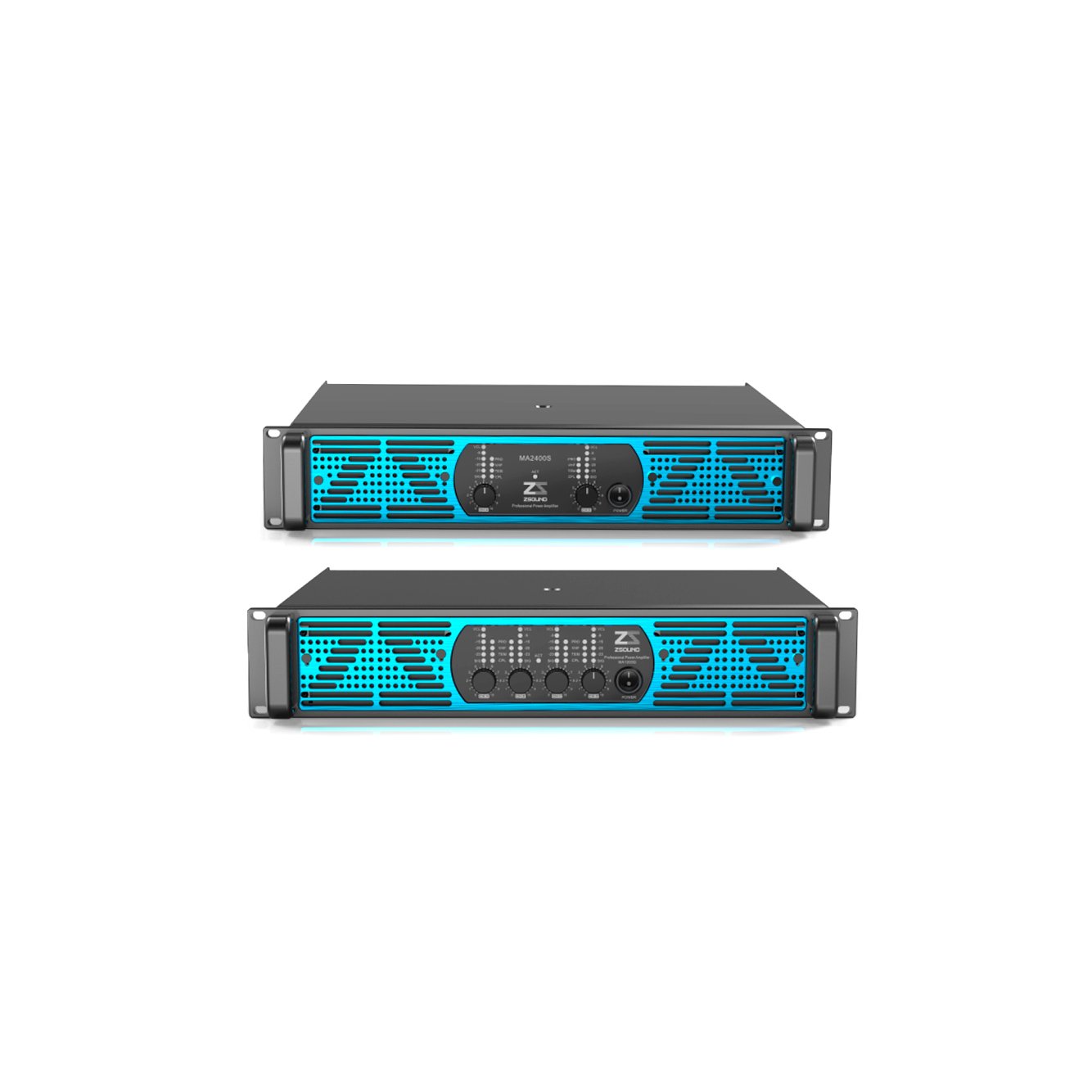

MA series pro audio amplifier
MA2400S / MA1300Q
MA series pro audio amplifier feature
Specification | MA2400S (2ch Professional) | MA1300Q (4ch Professional) |
|---|---|---|
| Output Power | ||
| 8Ω Stereo power | 2x2400W | 4x2200W |
| 4Ω Stereo power | 2x4500W | 4x4000W |
| 8Ω Bridged Mono power | 1x9600W | 2x8800W |
| 4Ω Bridged Mono power | 1x13500W | 2x12000W |
| Technical Specification | ||
| Frequency response | 20Hz-25kHz±0.5dB | Same |
| THD+N (Rated power,4Ω/1kHz) | 0.1% | Same |
| Signal noise ratio | 98dB | Same |
| Optional gain | 23-44dB (8 steps) | Same |
| Connection | ||
| Input connectors (per ch) | 3-pin XLR balanced | Same |
| Input impedance | 20kΩ Bal/10kΩ Unbal | Same |
| Output connectors | Speakon (Neutrik) | Same |
| Power | ||
| Power requirement | 200-240V~ 50-60Hz | Same |
| 180-260V~ 50-60Hz | ||
| Dimensions & Weight | ||
| Dimensions (WxHxD) | 483x377x88mm | Same |
| (19″x15″x3″) | ||
| Weight | 13kg (29 lbs) | Same |
Introducing the MA series professional amplifiers – the MA2400S (2-channel) and MA1300Q (4-channel).
These high-power amplifiers deliver exceptional performance with 2400W-13500W output, perfect for driving line array speaker systems.
Featuring ultra-low 0.1% THD+N and wide 20Hz-25kHz frequency response, they ensure pristine audio reproduction.
With professional XLR/Speakon connections, adjustable gain settings, and compact 19″ rack-mountable design (13kg), these amplifiers provide reliable power for demanding live sound applications. Engineered for stability and clarity to elevate your professional audio setup. [more]
