ZSOUND LA210
Dual 10″ Line Array Speaker User Manual
Powerful, Weatherproof Sound for Demanding Applications
The ZSOUND LA210 is a high-performance, all-weather waterproof line array speaker designed for professional audio applications. With its two-way, two-driver system, the LA-210 delivers 137dB SPL (peak), making it ideal for mobile performances, theaters, multi-functional halls, and churches.
These preset programs are obtained through testing data anid multiple adjustments by system engineers. All preset programs can be phase corrected using the all-pass filter function of the M144T processor, ensuring that the phase curve of the full fre quency range can be completely coupled when using the two-way LA-210 with three-way speakers.
Users can make finead-justments to the PEQ of the preset programs on the processor input channel according to actual needs. The delay between full frequency and sub-bass can be added based on the actuaal physical distance between the full frequency and sub-bass
speakers.
Key Features of the LA210 Line Array Speaker
- Dual 10″ Woofers (75mm Voice Coil) – Provides deep, punchy bass with high transient response.
- 3″ Neodymium Compression Tweeter – Ensures crisp, clear high frequencies with minimal distortion.
- Preset Hanging Angle – Optimized for quick and efficient deployment in various venues.
- All-Weather Waterproof Design – Built to withstand outdoor conditions, making it perfect for open-air events.
- Compatible with LA-18S Subwoofer – Extends low-frequency response for a full-range sound experience.

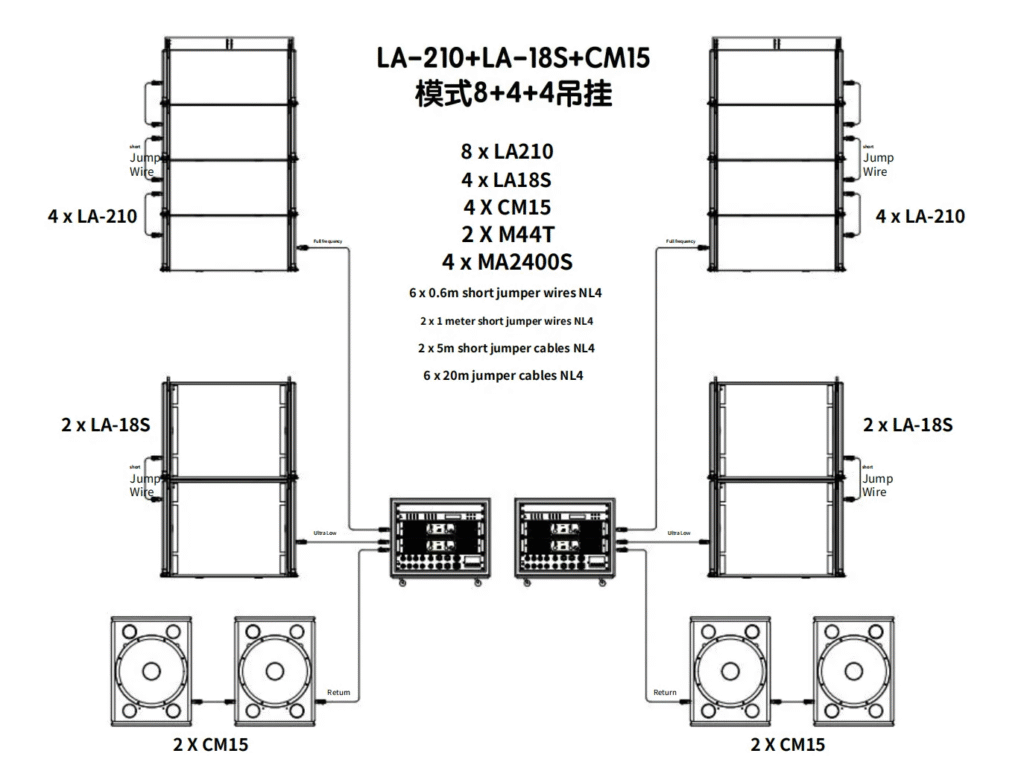

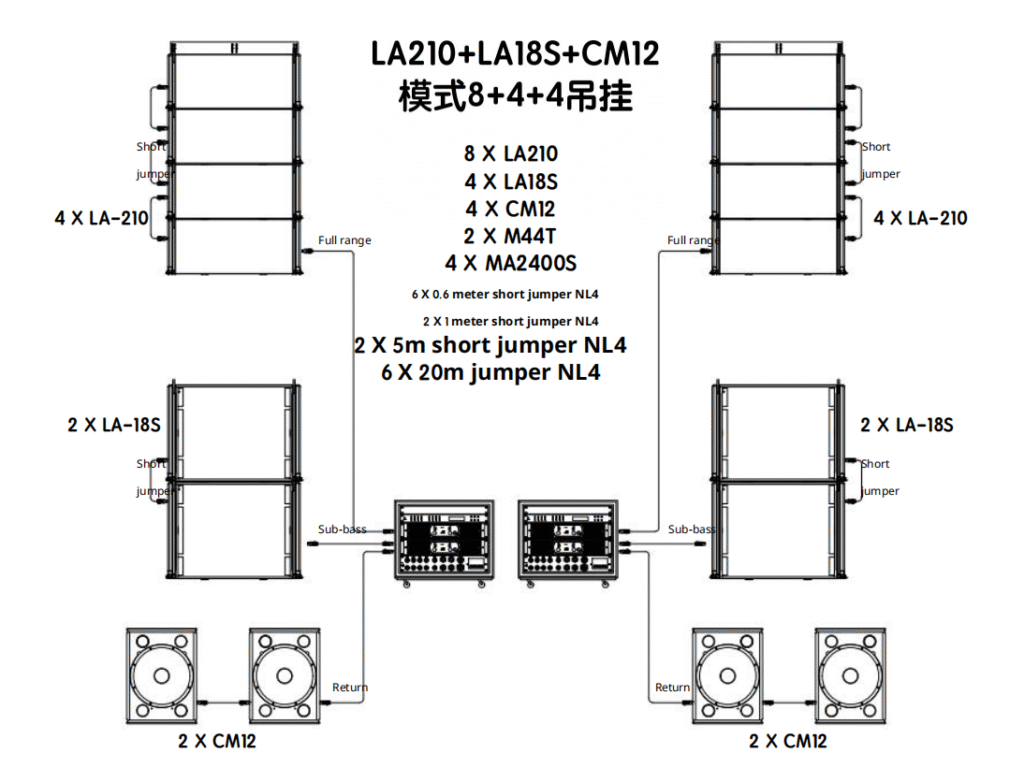

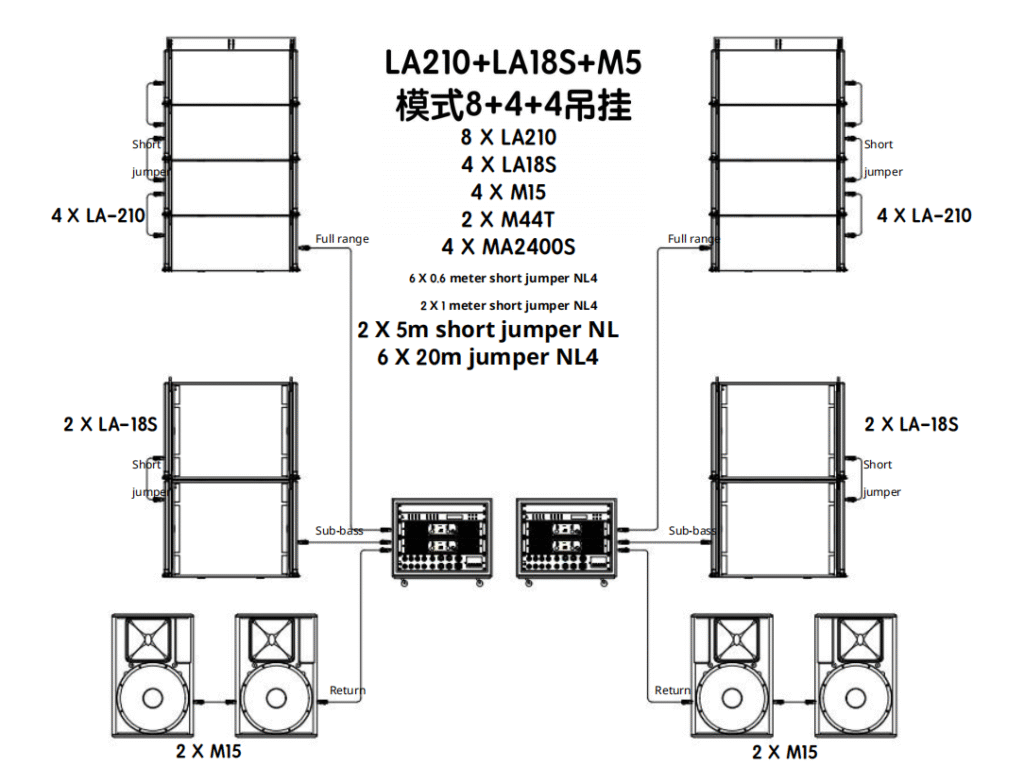

8+8+4 suspension mode
- LA-210+LA-18S+CM15
- 8 x LA210
- 4xLA18S
- 4X CM15
- 2XM44T
- 4 X MA2400S
- 6 x 0.6m short jumper wires NL4
- 2 x 1 meter short jumper wires NL4
- 2 x 5m short jumper cables NL4
- 6 x 20m jumper cables NL4
The distance difference can be measured using a tape measure, laser rangefinder, or testing software. Please do not modify the factory-provided processor presetprograms and output channel parameters.
| No | InputA | InputB | InputC | InputD | program name | Output1 | Output2 | Output3 | Output4 |
| 1 | LA-210 | LA-18S | N/A | N/A | LA-210+LA-18S | LOW(A) | HI(A) | LA-18S(B) | LA-18S(B) |
| 2 | LA-210 | LA-18S | N/A | M12 | LA-210+LA-18S+M12 | LOW(A) | HI(A) | LA-18S(B) | M12(D) |
| 3 | LA-210 | LA-18S | N/A | M15 | LA-210+LA-18S+M15 | LOW(A) | HI(A) | LA-18S(B) | M15(D) |
| 4 | LA-210 | LA-18S | N/A | CM12 | LA-210+LA-18S+CM12 | LOW(A) | HI(A) | LA-18S(B) | CM12(D) |
| 5 | LA-210 | LA-18S | N/A | CMI5 | LA-210+LA-18S+CM15 | LOW(A) | HI(A) | LA-18S(B) | CM15(D) |
| 6 | LA-210 | LA-210 | N/A | N/A | LA-210 ST | LOW(A) | HI(A) | LOW(B) | HI(B) |
| 7 | LA-210 | N/A | N/A | N/A | LA-210 MONO | LOW(A) | HI(A) | LOW(A) | HI(A) |
| 8 | LA-210 | N/A | N/A | N/A | LA-210 FF | LOW(A) | HI(A) | LOW(A) | HI(A) |
Enhanced System Integration
The LA-210 can be seamlessly integrated with the LA-18S subwoofer and other ZSOUND speakers (such as CM12, CM15, M12, and M15) to create a versatile, scalable sound system.
System Presets for Optimal Performance
The M44T processor includes pre-configured programs for different setups, ensuring phase coherence and optimal sound quality when combining the LA-210 with subwoofers or fill speakers. These presets are based on extensive testing and fine-tuning by professional audio engineers.
- LA-210 + LA-18S – Full-range system with extended bass.
- LA-210 + LA-18S + CM12/CM15 – Ideal for large venues requiring additional coverage.
- LA-210 ST (Stereo Mode) – Perfect for stereo sound reinforcement.
- LA-210 MONO (Mono Mode) – Single-channel operation for focused sound projection.
- LA-210 FF (Front Fill Mode) – Enhances front-stage audio clarity.
Line Array Speaker User Manual Efficient Setup with Ease Focus 3

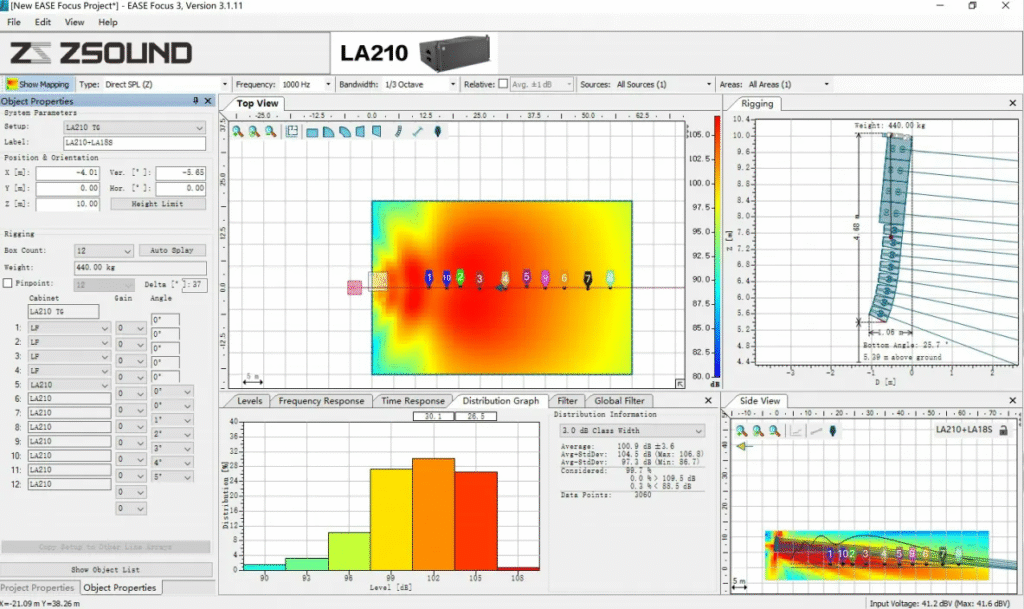

For precise system design and installation, the Ease Focus 3 software allows users to:

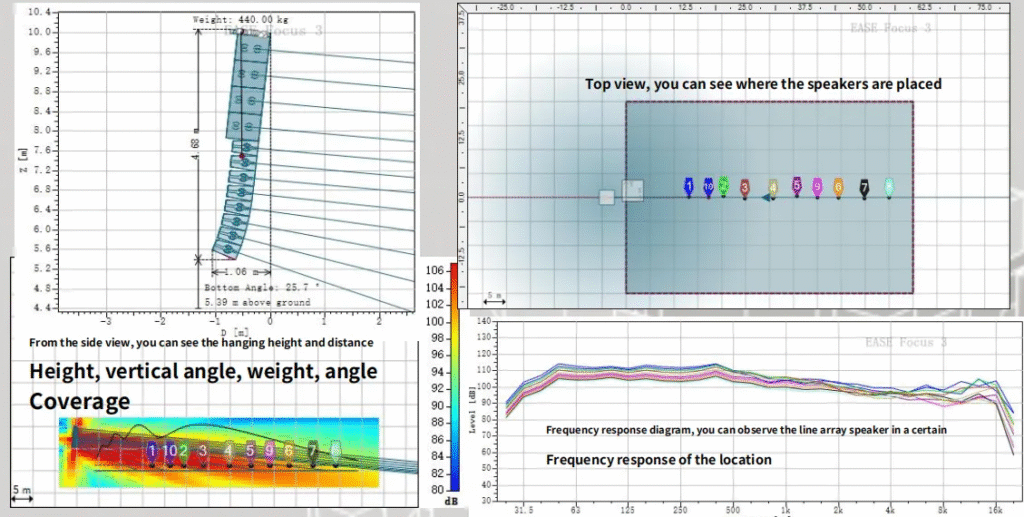

- Simulate GLL data in advance to determine optimal hanging angles and coverage.
- Generate PDF reports for venue planning and installation reference.
- Analyze vertical angles, weight distribution, and ground clearance for safe and efficient rigging.

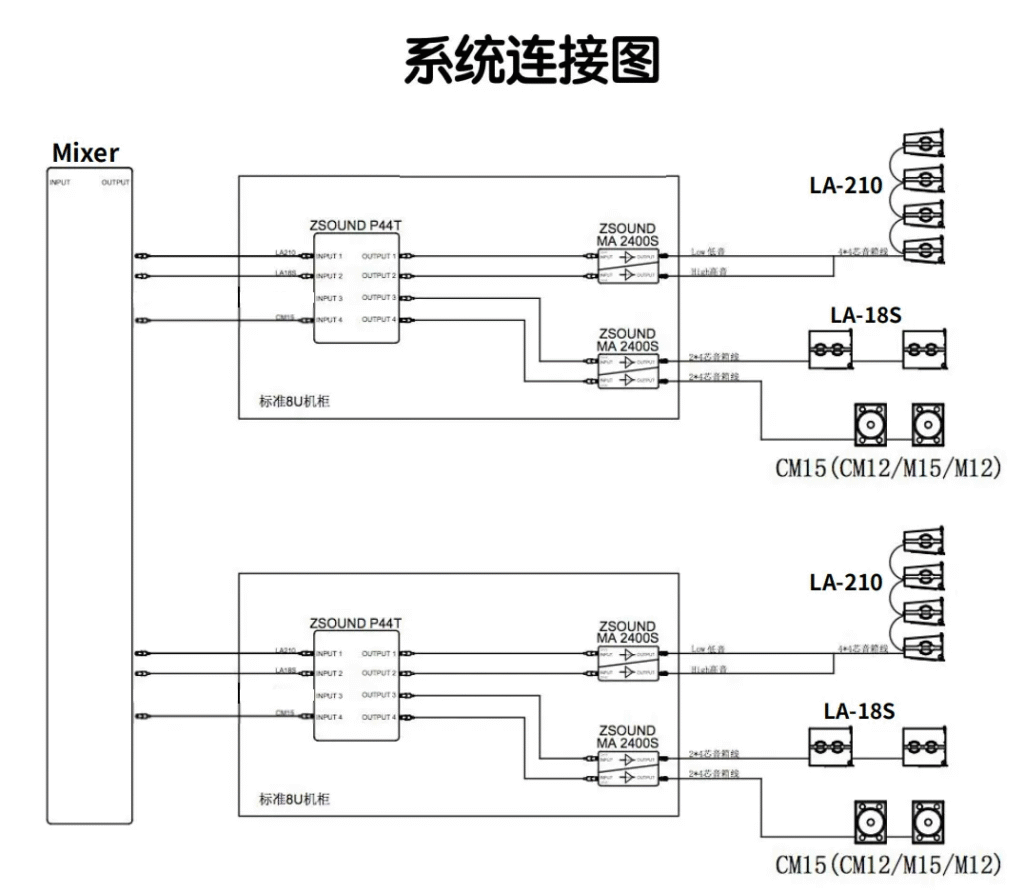

Wiring and Amplification
- WP4 Four-Core Speaker Cable – Ensures quick and reliable connections for mobile setups.
- MA2400S Amplifier Compatibility – Designed to power the LA-210 and LA-18S with 32dB voltage gain for maximum efficiency.
- Parallel Wiring for Multiple Speakers – Supports 4-ohm operation when connecting multiple LA-210 units.
Ideal Applications
- Outdoor Concerts & Festivals – Weatherproof design ensures reliable performance in any condition.
- Churches & Theaters – Clear, powerful sound with precise coverage.
- Theme Parks & Music Fountains – High SPL output for large open spaces.
- Corporate Events & Live Performances – Scalable system for any venue size.
Conclusion
The ZSOUND LA-210 is a professional-grade line array speaker that combines power, durability, and flexibility for any audio application. Whether used alone or as part of a larger system with the LA-18S subwoofer, it delivers exceptional sound quality with easy setup and reliable performance.
For more details on system configurations, wiring diagrams, and technical specifications, download the full LA-210 user manual or contact our support team.
Upgrade your sound system with ZSOUND LA-210 – where power meets precision! thank you for reading Line Array Speaker User Manual
