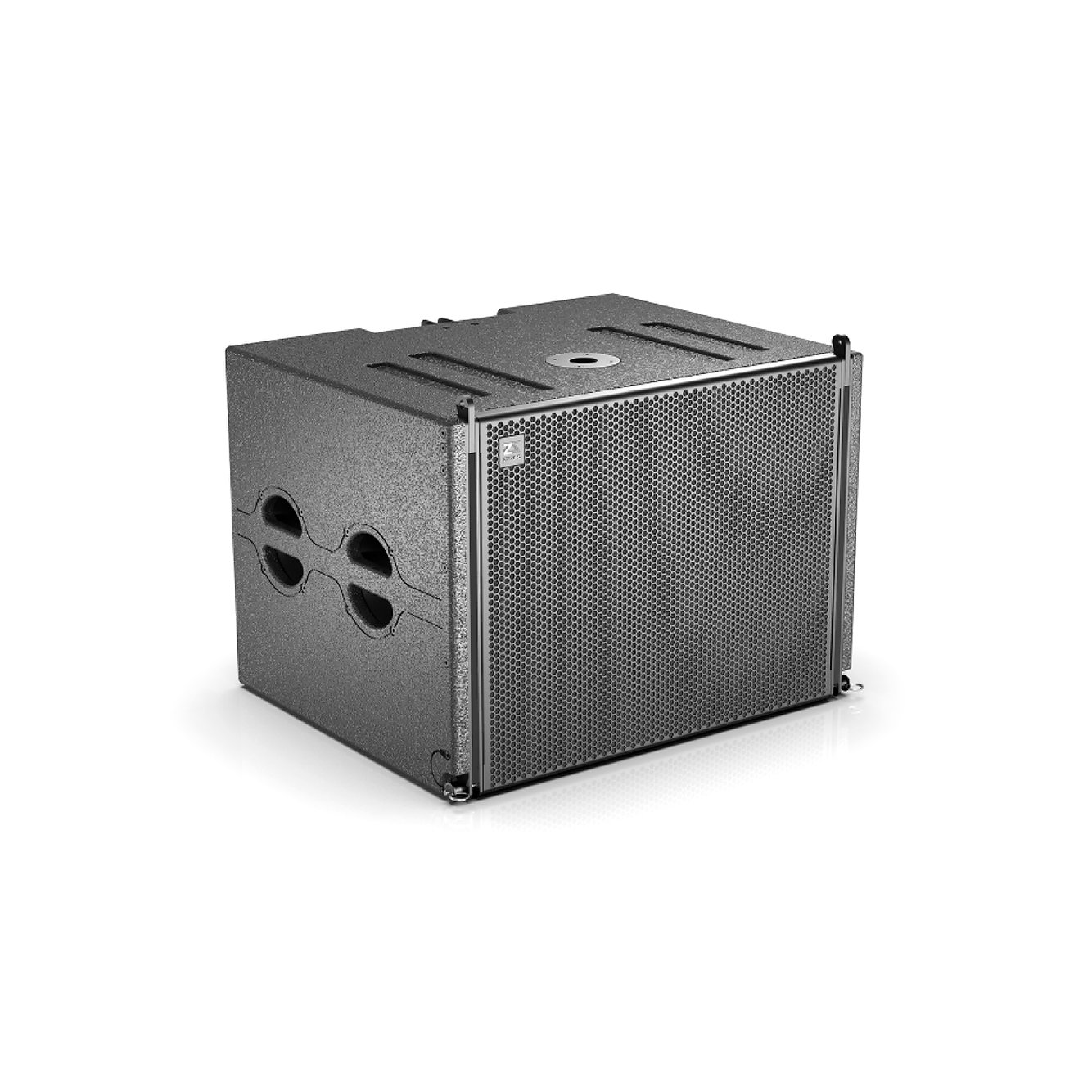

LA208SP-III
Applications
- Touring performance
- Theatre and multi-function hall
- Church
Feature
- Touring
- 100mm voice coil high-transient response woofer
Technical Specification
| Parameter Name | Parameter Value |
|---|---|
| FREQUENCY RESPONSE | 32 Hz-180 Hz (±3dB), 30 Hz-250 Hz (-10dB) |
| NOMINAL COVERAGE (-6dB) | Omnidirectional |
| CHANNEL GAIN | 32 dB |
| POWER RATING (AES) | 1000W@8Ω + DSP |
| INPUT IMPEDANCE | 18KΩ balanced / 9KΩ unbalanced |
| THD+N (0.1w to 1/2 power) | <0.05% |
| SIGNAL TO NOISE RATIO | >98 dB |
| COMMON MODE REJECTION RATIO | >50 dB |
| VOLTAGE REQUIREMENT | 200-240VAC 50Hz |
| MAXIMUM SPL | 129 dB / 135 dB SPL peak |
| DRIVERS | 1×18″ (100mm voice coil) ferrite woofer |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| Dimensions (HxWxD) | 530 x 730 x 599.5 mm |
| WEIGHT | 45 kg |
| CONNECTORS | XLR; NEUTRIK POWERCON |
| MATERIALS | 15mm, 18mm Baltic birch plywood |
| FINISH | Black Polyurea paintings |
| GRILLE | Black epoxy mesh grille with acoustically reticulated cloth |
| RIGGING | Three-points rigging |
