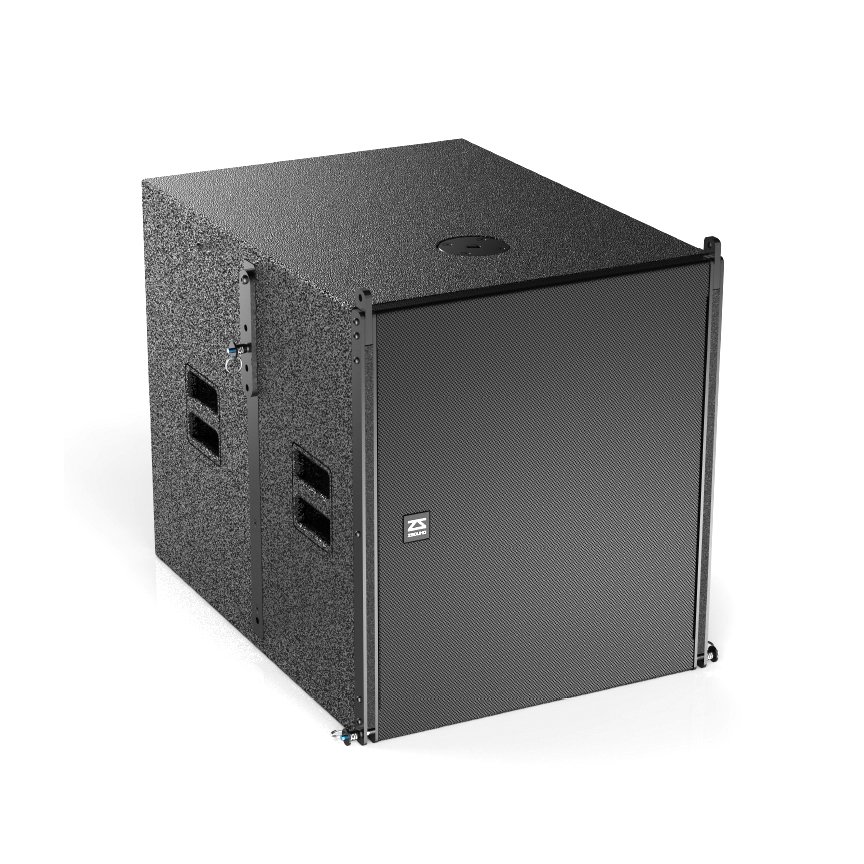

LA110S Dual 15 inch subwoofer
Applications
- Touring performance
- Theatre and multi-function hall
- Church
Feature
- 75mm voice coil high-transient response woofer
- Small volume, vented, horn preposition design
- Small enclosure but high SPL output
Technical Specification
| Parameter Name | Parameter Value |
|---|---|
| FREQUENCY RESPONSE | 40 Hz-200 Hz (±3 dB), 30 Hz-320 Hz (-10dB) |
| NOMINAL COVERAGE (-dB) | Omnidirectional |
| SENSITIVITY (@1w/1m) | 100 dB SPL |
| POWER RATING (AES) | 1000W |
| NOMINAL IMPEDANCE | 8 ohm |
| MAXIMUM SPL | 136 dB (peak) |
| DRIVERS | 2×15″ (75mm voice coil) woofer |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| DIMENSIONS (HxWxD) | 680 x 580 x 796 mm / 27″x23″x31″ |
| WEIGHT | 60 kg / 132 lbs |
| CONNECTORS | 2 x NL4 connectors |
| SPEAKER CABLES | 1+1- |
| MATERIALS | 15mm, 18mm Baltic birch plywood |
| FINISH | Black polyurea paintings |
| GRILLE | Black epoxy mesh grille with acoustically reticulated cloth |
| RIGGING | 5°, 0°, -5°, -10° adjustable |
