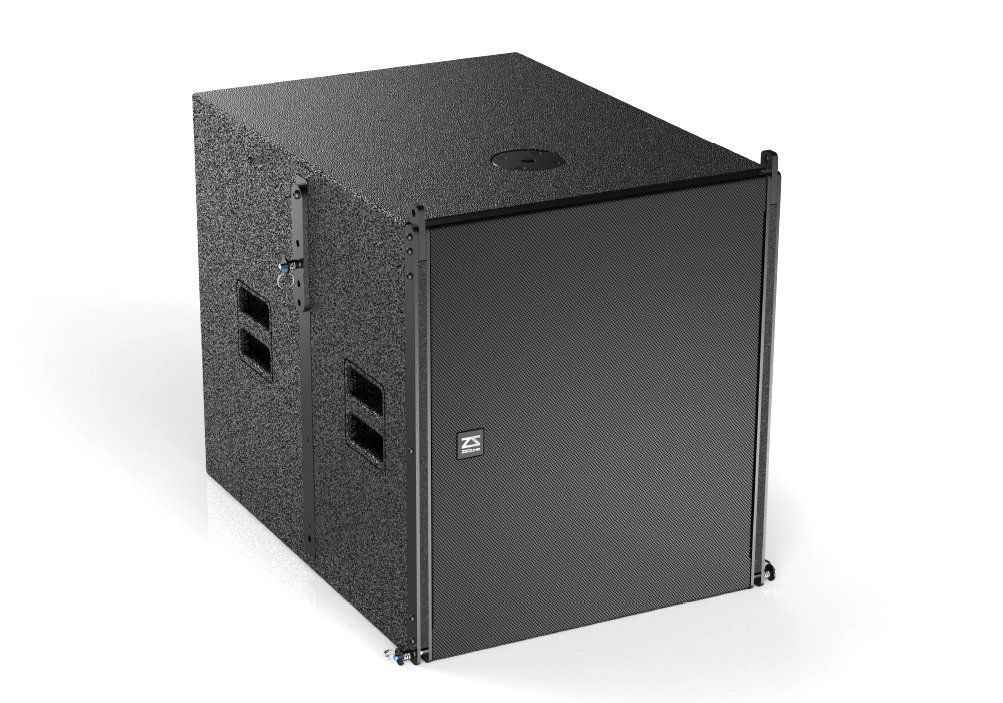

LA110P-E-III Dual 15 inch subwoofer
Applications
- Touring performance
- Theatre and multi-function hall
- Church
Feature
- 75mm voice coil high-transient response woofer
- Small volume, vented, horn preposition design
- Small enclosure but high SPL output
Technical Specification
| Parameter Name | Parameter Value |
|---|---|
| FREQUENCY RESPONSE (Include Powered Module) | 38 Hz-100 Hz (±3 dB), 30 Hz-120 Hz (-10 dB) |
| LF DRIVER | 2×15″ (75mm voice coil) neodymium woofer |
| POWER RATING (AES) | 1000W |
| MAXIMUM SPL | 127 dB SPL, 133 dB SPL peak |
| VOLTAGE REQUIREMENT | 220V ~ 50-60 Hz |
| AMPLIFIER MODULE | Dual channel 2000W (4Ω) |
| TOTAL HARMONIC DISTORTION (1KHz, full frequency 4Ω) | ≤1% |
| SIGNAL NOISE RATIO | >100dB |
| ACTIVE GAIN (1KHz 8Ω) | CH1: 20 dB, CH2/3: 32 dB |
| WAY OF INPUT | Power supply、XLR male & female |
| INPUT IMPEDANCE | 20 kΩ balanced / 10 kΩ unbalanced |
| OUTPUT CONNECTION (FULL RANGE) | NL4MP NEUTRIK connector (1+1-) |
| OUTPUT CIRCUIT STYLE | Class D |
| COOLING SYSTEM | Forced cooling fan |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| Dimensions (HxWxD) | 680 x 580 x 796 mm |
| WEIGHT | 62 kg / 137 lbs |
| CONNECTION PLUG | XLR, POWERCON, SPEAKON, 485, USB |
| RIGGING HARDWARE | 4-point rigging + top support |
| MATERIAL OF ENCLOSURE | 15mm, 18mm, 24mm Baltic birch-plywood |
| SURFACE | Black polyurea paintings |
| GRILLE | Black porous steel net + water splash sound transparent cloth |
