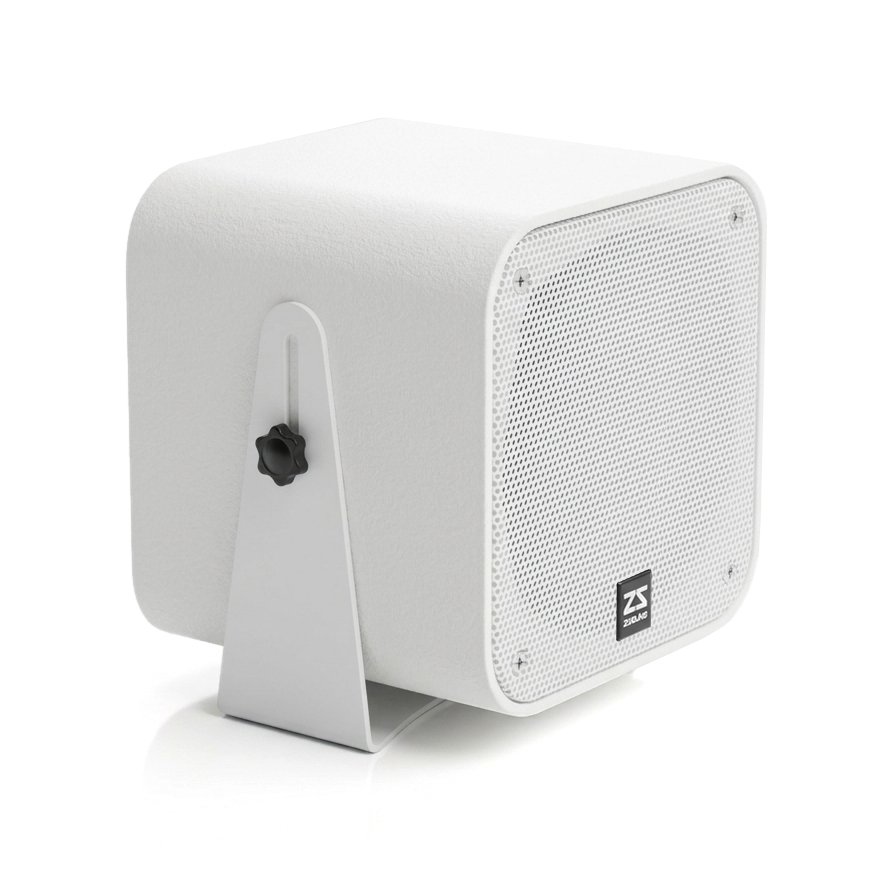

G6 6inch point source speaker

Applications

  • Restaurant
  • Meeting room
  • Background music

Feature

  • 38mm neodymium full range driver
  • 6″ large-size full range unit
  • Elegant and compact appearance
  • 2 PIN WP PLUG

Technical Specification

Parameter NameParameter Value
FREQUENCY RESPONSE120 Hz-20 kHz (±3 dB), 100 Hz-20 kHz (±6 dB)
NOMINAL COVERAGE (-6 dB)80°(H), 80°(V) Constant directivity
SENSITIVITY (±1w/1m)94 dB SPL
POWER RATING (AES)130W (AES)
NOMINAL IMPEDANCE8 ohm
MAXIMUM SPL115 dB / 121 dB SPL peak
DRIVERS1×6″ Full range driver (38mm voice coil)

Physical Data

Parameter NameParameter Value
DIMENSIONS (HxWxD)201 x 201 x 183 mm
WEIGHT3.5 kg
CONNECTORSTerminal
SPEAKER CABLESred +, black –
MATERIALS9mm, 12mm multi-plywood
FINISHBlack polyurea paintings
GRILLEBlack epoxy mesh grille with acoustically reticulated foam
RIGGINGLifting point
