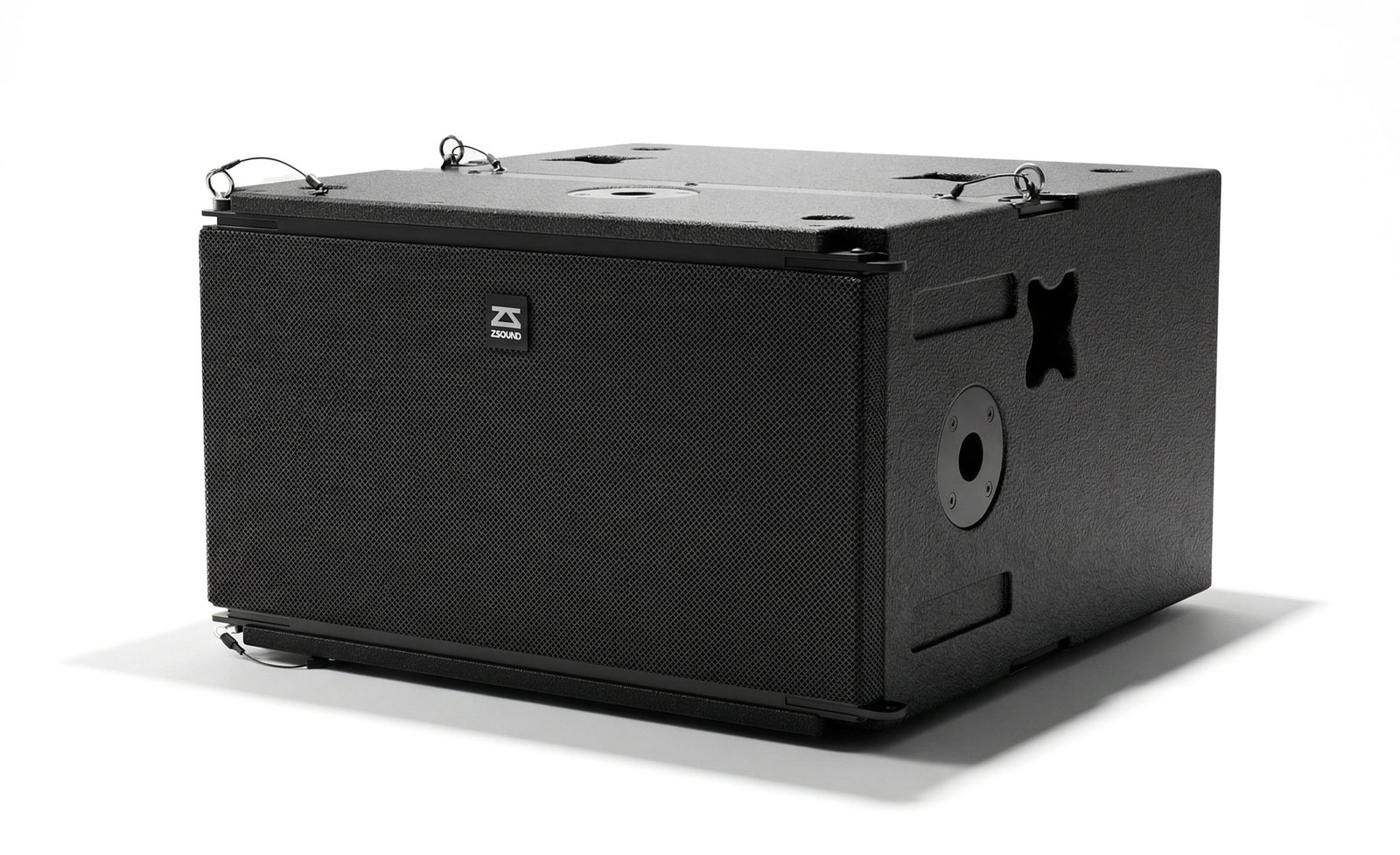

LC10SP-III Active 15 inch subwoofer

Applications

  • Touring performance
  • Club, multi-function hall
  • Church

Feature

  • Built-in amplifier, self-powered subwoofer with LC10
  • Compact 15-inch subwoofer speaker
  • Extremely compact, small enclosure, light weight

Especificaciones Técnicas

Parameter NameParameter Value
FREQUENCY RESPONSE40 Hz-150 Hz (±3 dB)
NOMINAL COVERAGEOmnidirectional
MAXIMUM SPL131 dB SPL peak
DRIVERS1×15″ woofer (75mm voice coil)
POWER REQUIREMENT200-240V-50-60Hz
AMPLIFIER MODULEDual channel 2000W (4Ω)
THD+N (0.1w to 1/2 power)0.82%
SNR104 dB
OUTPUT ELECTRIC CIRCUITClass D circuit
COOLING SYSTEMAirflow from back to front, Forced cooling

Physical Data

Parameter NameParameter Value
DIMENSIONS (HxWxD)371x 641 x 600 mm
WEIGHT37 kg / 82 lbs
CONNECTORSXLR; POWER CON; NEUTRIK NL4; USB
SPEAKER CABLES1+1- (NL4 NEUTRIK 1)
1+1- (NL4 NEUTRIK 2)
MATERIALS15mm, 18mm Baltic birch plywood
FINISHBlack Polyurea paintings
GRILLEBlack epoxy mesh grille with acoustically reticulated cloth
RIGGING0°, -5° degree adjustable
