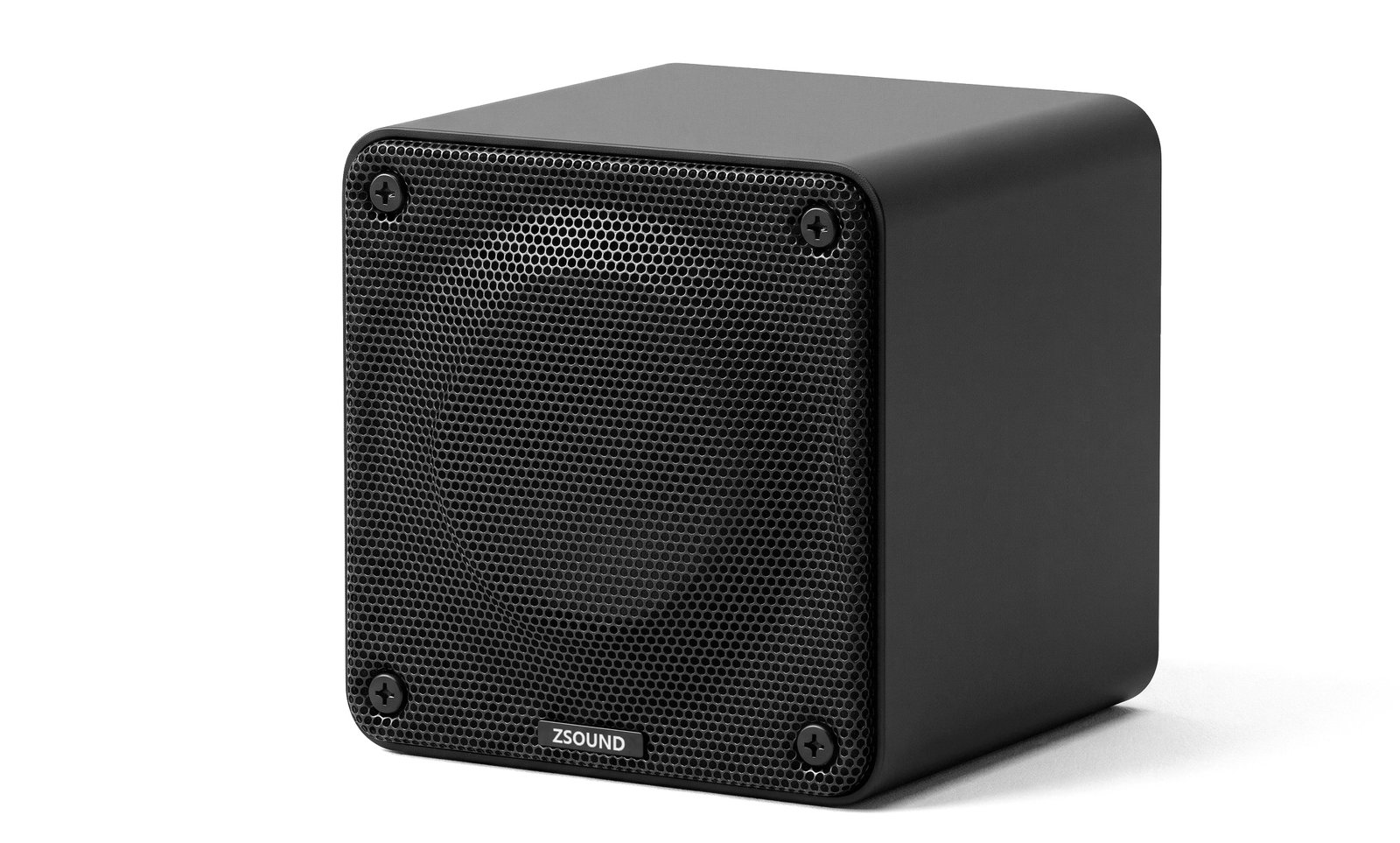

G4 4 inch point source speaker

Applications

  • Meeting room
  • Background music

Feature

  • Use a high-efficiency 4.5inch full range speaker
  • Using metal aluminum shell, appearance is fine & small
  • WP Plug connection

Especificaciones Técnicas

Parameter NameParameter Value
Frequency Response130 Hz-18 kHz (±3 dB), 100 Hz-20 kHz (-10 dB)
Nominal Coverage (-6 dB)70°(H), 70°(V) Constant directivity
SENSITIVITY (@1w/1m)92 dB SPL
POWER RATING (AES)50W
NOMINAL IMPEDANCE8 ohm
MAXIMUM SPL109 dB SPL, 115 dB SPL peak
DRIVERS1×4.5″ Full range driver

Physical Data

Parameter NameParameter Value
DIMENSIONS (HxWxD)130 x 130 x 139 mm
WEIGHT2.5 kg
CONNECTORS2 pin WP plug
MATERIALS3mm Aluminum
GRILLEWhite, black water paint
DIAGRAMSPhase response, Magnitude, Impedance graphs provided. Front, Top, Side views provided.
