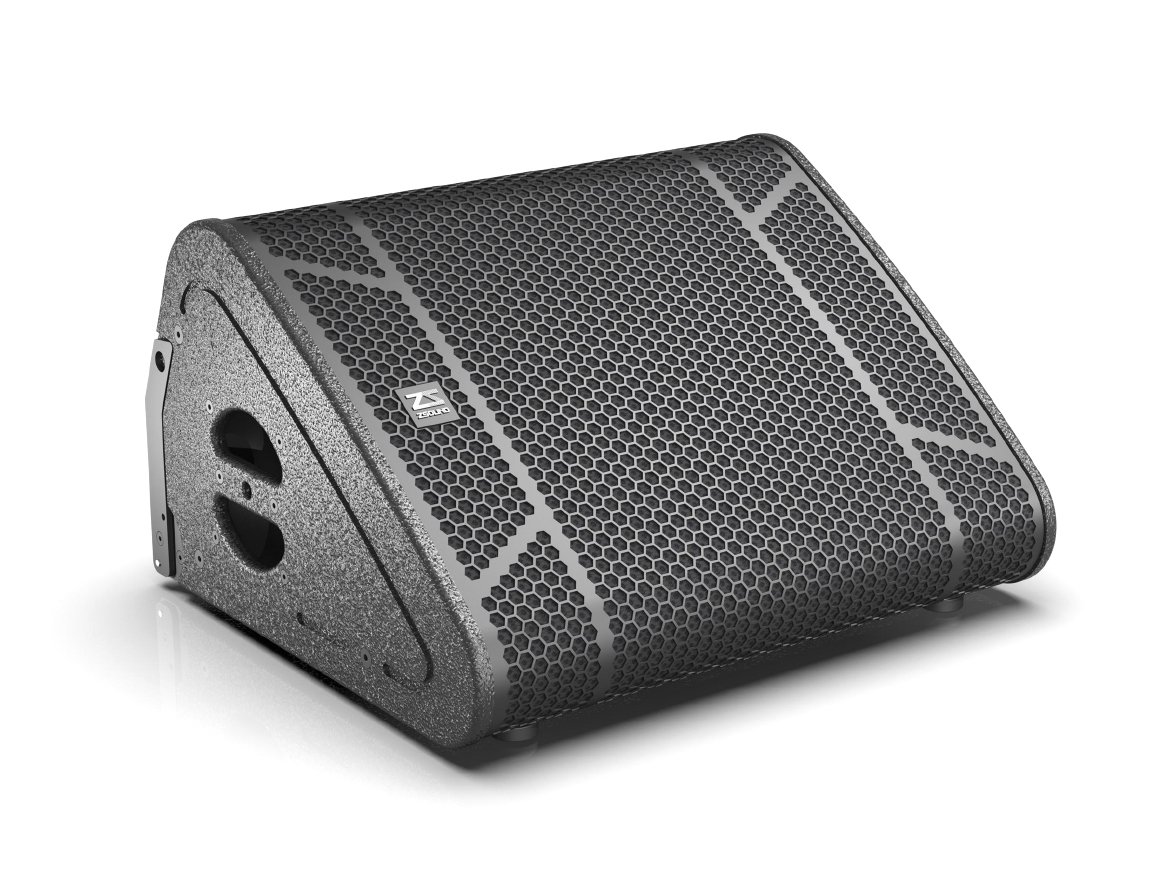

CP15M 15 inch stage monitor
Applications
- Church
- Stage monitor
- Theatre, Music hall
Feature
- Multi-functional enclosure structure
- HF & LF coaxial structure
- Rotatable tweeter horn, change directivity angle
Especificaciones Técnicas
| Parameter Name | Parameter Value |
|---|---|
| FREQUENCY RESPONSE | 70 Hz~16 kHz (±3 dB), 50 Hz~18 kHz (-10 dB) |
| NOMINAL COVERAGE (-6dB) | 60°(H), 40°(V) |
| MONITOR ANGLE | Normal mode 34.5° / Built-in angle risers 52° |
| SENSITIVITY (@1W/1m) | 98 dB |
| POWER RATING (AES) | 1600w LF, 400w HF |
| NOMINAL IMPEDANCE | 8 ohm |
| MAXIMUM SPL | 140 dB |
| DRIVERS | LF: 1×15″ (75mm voice coil) neodymium woofer; HF: 1×3″ compression driver |
Physical Data
| Parameter Name | Parameter Value |
|---|---|
| DIMENSIONS (HxWxD) | 350 x 600 x 514 mm |
| WEIGHT | 22 kg |
| CONNECTORS | NEUTRIK NL4 |
| SPEAKER CABLES | 1+1- |
| MATERIALS | 15mm multi-plywood |
| FINISH | Black polyurea paintings |
| GRILLE | Black epoxy mesh grille with acoustically reticulated foam |
| RIGGING / SUPPORTING | M8 rigging, 35mm support base, monitor angle adjustment rod |
| DIAGRAMS | Front, Top, Side views; Built-in angle risers illustration; Frequency response, Impedance charts provided |
