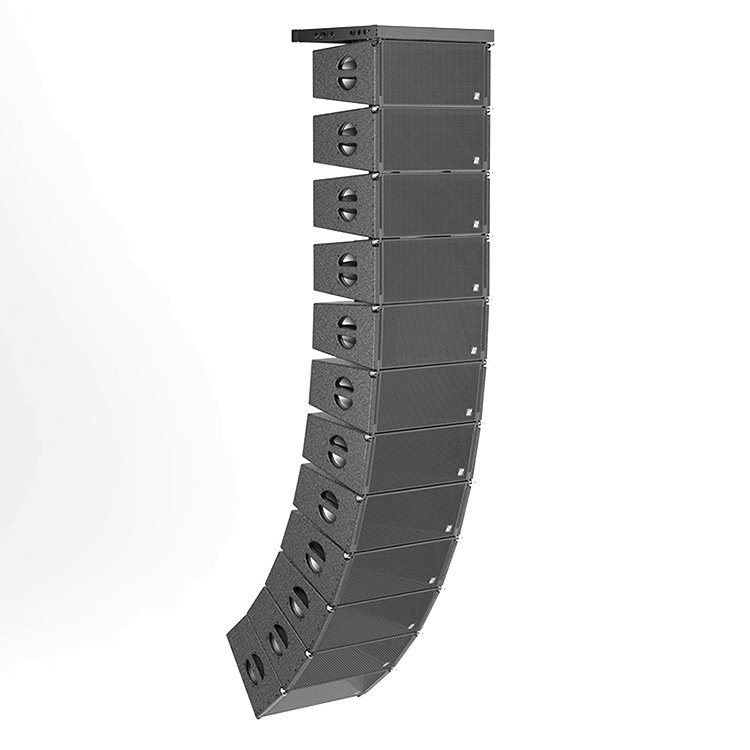

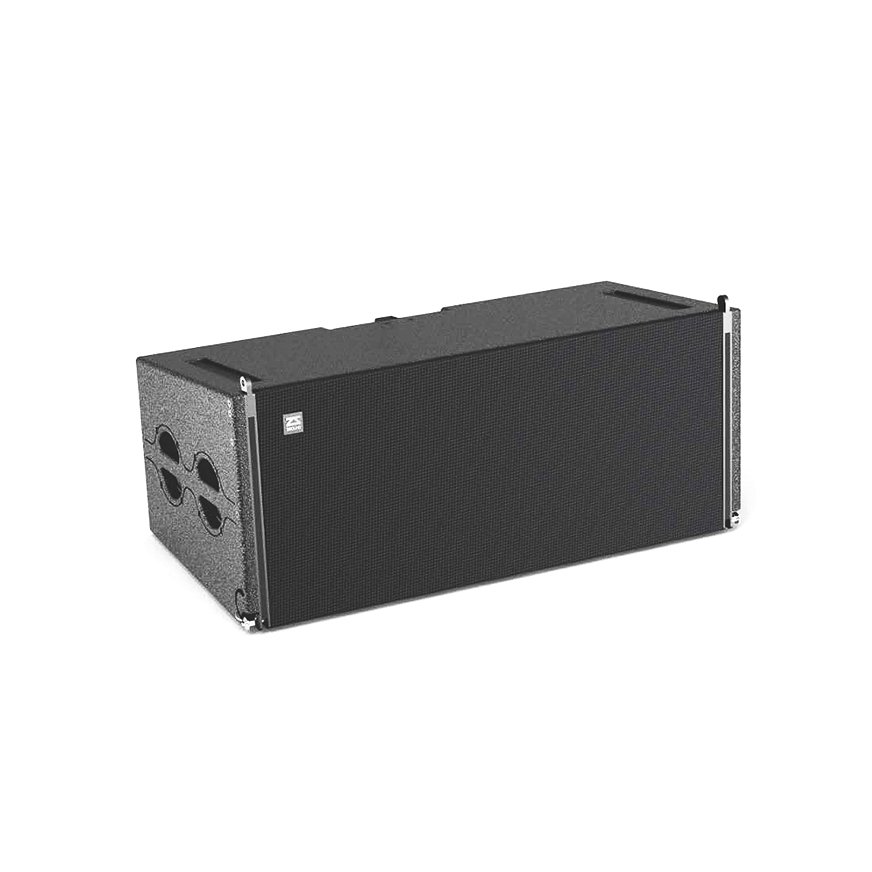

LC215
Dual 15 inch line array speaker
- Flexible Rigging & Precise Coverage
- 1000W Power Handling
- High SPL& Clear Projection
Applications
- Touring performance
- Stadium
- Theatre
- more dual 15 inch line array speaker cases
Feature
- Presettable angle on the ground, adjustable angle with manual hoister in the air
- Neodymium high-sensitivity driver, maximum headroom
- Rubber edge LF driver, extend low frequency
Technical Specification
| Parameter | Value |
|---|---|
| Frequency response | 40 Hz–18 kHz (±3 dB) 30 Hz–20 kHz (-10 dB) |
| Nominal coverage (-6dB) | 100° (H) × 10° (V) |
| Sensitivity (@1w/1m) | HF: 112 dB SPL MF: 103 dB SPL LF: 101 dB SPL |
| Power rating (AES) | HF: 160W MF: 400W LF: 1000W |
| Nominal impedance | 16Ω |
| Maximum SPL | 141 dB SPL |
| Drivers | LF: 2×15″ neodymium woofer (75mm voice coil) MF: 2×8″ neodymium mid-range driver HF: 2×3″ neodymium tweeter (75mm voice coil) |
Physical Data
| Parameter | Value |
|---|---|
| Dimensions (H×W×D) | 492 × 1100 × 530 mm |
| Weight | 61.85 kg (136 lbs) |
| Connectors | 2×NL4 |
| Speaker cables | LF: 1+/1- MF/HF: 2+/2- |
| Materials | 15mm/18mm/24mm Baltic birch plywood |
| Finish | Black Polyurea paintings |
| Grille | Black epoxy mesh with acoustically reticulated cloth |
| Rigging angles | 0°–10° adjustable (1° increments) |
