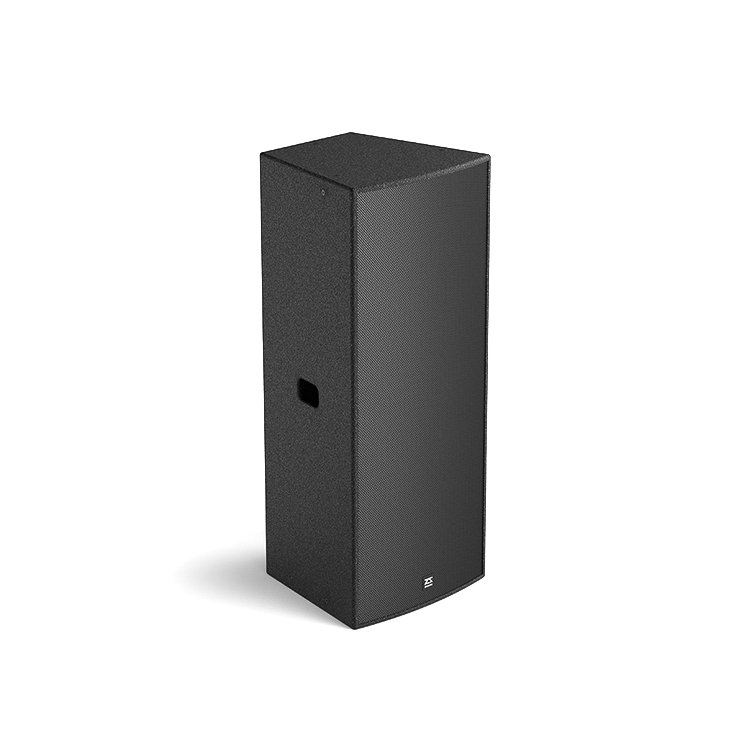

V215
dual 15 inch full range speaker
- coxial design
- water proof
- light weight
Applications
- Theatre
- Outdoor
- Small show
Feature
- 75mm Large-size HF driver
- High power and short loss crossover
- Powerful low-frequency
Technical Specification
| Parameter | Value |
|---|---|
| Frequency response | 45 Hz–16 kHz (±3 dB) 35 Hz–18 kHz (-10 dB) |
| Nominal coverage | 90° (H) × 60° (V) |
| Sensitivity (@1w/1m) | 98 dB |
| Power rating (AES) | 900W |
| Nominal impedance | 8Ω |
| Maximum SPL | 133 dB SPL (peak) |
| Drivers | HF: 1×3″ compression driver (75mm voice coil) LF: 2×15″ subwoofer (75mm voice coil) |
Physical Data
| Parameter | Value |
|---|---|
| Dimensions (H×W×D) | 1200 × 506 × 470 mm (47″ × 20″ × 19″) |
| Weight | 46 kg (101 lbs) |
| Connectors | 2× Neutrik NL4MP |
| Speaker cables | 1+ / 1- |
| Materials | 15mm / 18mm oaken plywood |
| Finish | Black polyurea paintings |
| Grille | Black epoxy mesh grille |
