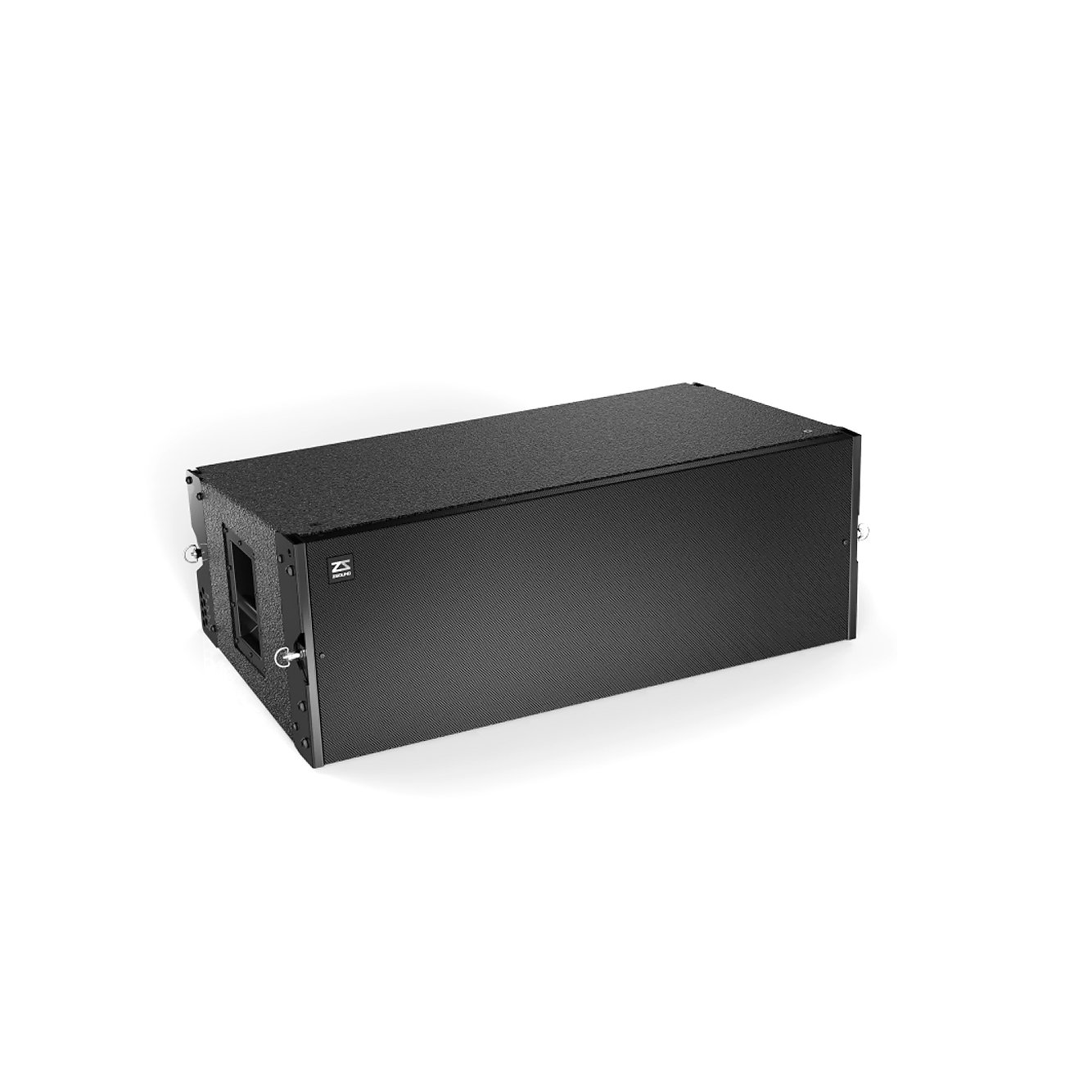

LA212
Dual 12 line array speaker
- Tri-amp three-way design for full-range clarity
- Coaxial MF/HF drivers for precise imaging
- High-power neodymium drivers with 141dB peak SPL2
Applications:

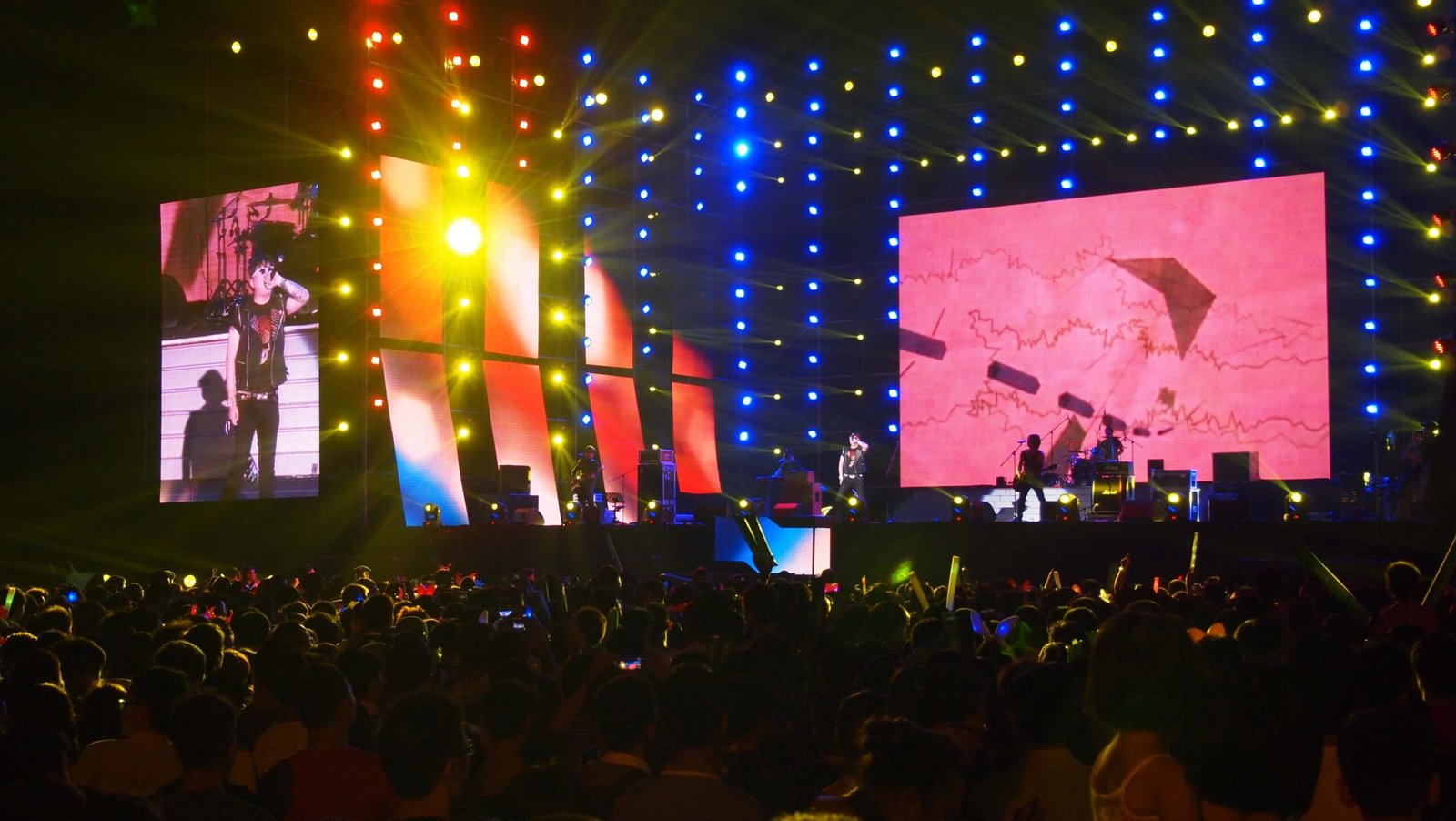

- Touring performance
- Stadium
- Theatre
- more dual 12 line array cases
Features:
- Large-scale, tri-amp, three-way line array system
- Coaxial MF & HF structure for optimized acoustic imaging
- Neodymium high-sensitivity drivers for maximum headroom
Technical Specifications
| Parameter | Details |
|---|---|
| Frequency Response | 50 Hz ~ 16 kHz (±3dB) 40 Hz ~ 18 kHz (-10dB) |
| Nominal Coverage (-6dB) | 100° (H) adjustable |
| Sensitivity (@1W/1m) | HF: 113 dB SPL MF: 105 dB SPL LF: 100 dB SPL |
| Power Rating (AES) | HF: 160W MF: 350W LF: 800W |
| Nominal Impedance | HF: 16Ω MF: 16Ω LF: 12Ω |
| Maximum SPL | HF: 141 dB peak MF: 136 dB peak LF: 135 dB peak |
| Drivers | LF: 2×12″ (75mm voice coil) woofer MF: 1×10″ (65mm voice coil) mid-range HF: 2×3″ compression driver |
Physical Data
| Parameter | Details |
|---|---|
| Dimensions (H×W×D) | 367 × 1000 × 550 mm 14″ × 39″ × 22″ |
| Weight | 63 kg / 139 lbs |
| Connectors | 2×NL8 connectors |
| Speaker Cables | LF: 1+ / 1- MF: 2+ / 2- HF: 3+ / 3- N/C: 4+ / 4- |
| Materials | 18mm / 24mm Baltic birch plywood |
| Finish | Black Polyurea coating |
| Grille | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging | 0°, 1°, 2°, 3°, 4°, 5°, 6°, 7.5° adjustable |
