VCL
dual 12 inch line array speaker
- coxial design
- water proof
- light weight
Applications
- Touring performance

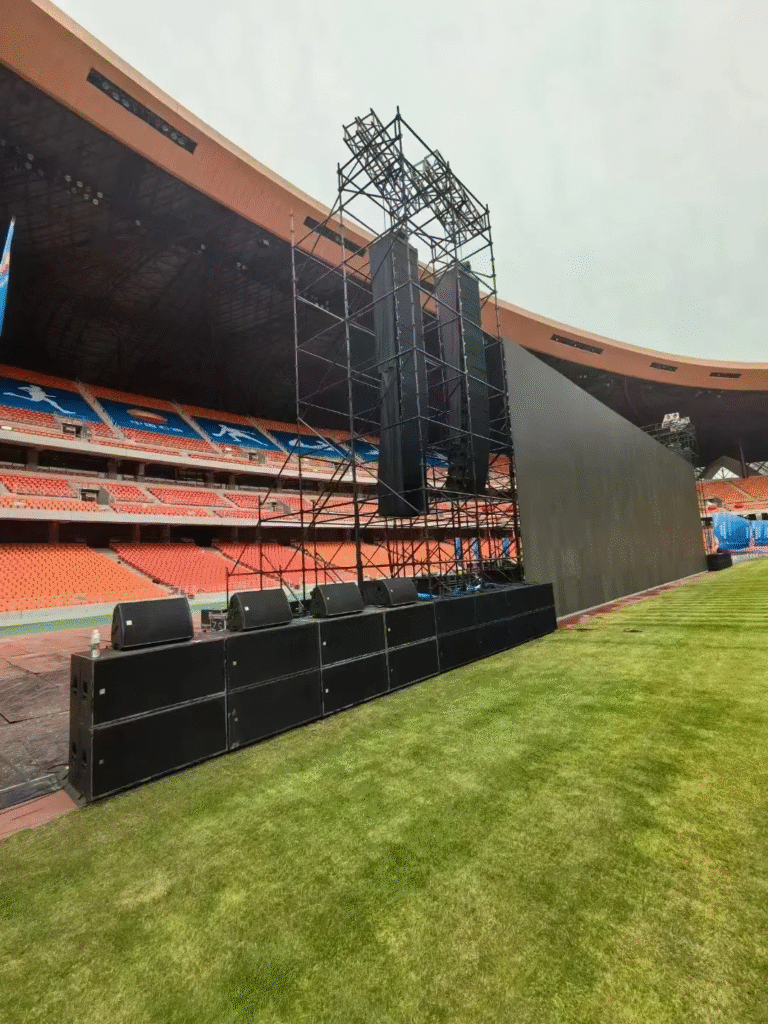

- Stadium
- Theatre
Feature
- Large-scale, tri-amp, three-way line array
- Presettable angle on the ground, adjustable angle with manual hoister in the air
- Neodymium high-sensitivity driver, maximum headroom
- Rubber edge LF driver, extend low frequency
Technical Specification
| Parameter | Value |
|---|---|
| Frequency response | 50 Hz ~ 16 kHz (±3 dB) 40 Hz ~ 18 kHz (-10 dB) |
| Nominal Coverage | 100° (H) adjustable |
| Sensitivity (@1w/1m) | HF: 113 dB SPL MF: 105 dB SPL LF: 99 dB SPL |
| Power Rating (AES) | HF: 160W MF: 350W LF: 900W |
| Nominal Impedance | HF/MF/LF: 16Ω each |
| Maximum SPL | HF: 141 dB SPL peak MF: 136 dB SPL peak LF: 134 dB SPL peak |
| Drivers | LF: 2×12″ (75mm VC) MF: 1×10″ (65mm VC) HF: 2×2.5″ (65mm VC) |
Physical Data
| Parameter | Value |
|---|---|
| Dimensions (H×W×D) | 374×1030×565 mm (15″×41″×22″) |
| Weight | 60 kg (132 lbs) |
| Connectors | 2×NL8 |
| Speaker Cables | LF: 2+/2- MF: 3+/3- HF: 4+/4- N/C |
| Materials | 18mm/24mm Baltic birch plywood |
| Finish | Black Polyurea paintings |
| Grille | Black epoxy mesh with acoustically reticulated cloth |
| Rigging Angles | 0°, 1°, 2°, 3°, 4°, 5°, 6°, 7.5° |
