VCM
dual 10 inch line array speaker
- Coaxial Structure
- Versatile Angle Adjustment
- HIFI-Class LF Elasticity
Applications
- Middle and large touring performance
- Stadium
Applications
- MF and HF coaxial structure
- HIFI class, low frequency elasticity, soft and slim high frequency
- Presettable angle on the ground adjustable angle with manual hoister in the air



Technical Specifications
Parameter | Specification |
---|---|
FREQUENCY RESPONSE | 50Hz-16kHz(±3dB) 40Hz-18kHz(-10dB) |
NOMINAL COVERAGE | 100°(H) adjustable |
SENSITIVITY(@1w/1m) | HF:112dB SPL / MF:106dB SPL / LF:96dB SPL |
POWER RATING(AES) | HF/MF/LF:120W/130W/800W(AES) |
NOMINAL IMPEDANCE | HF/MF/LF:16/16/16 ohm |
MAXIMUM SPL | HF:138dB SPL peak / MF:133dB SPL peak / LF:131dB SPL peak |
DRIVERS | LF:2×10″ woofer(75mm voice coil) MF:1×8″ mid bass(50mm voice coil) HF:2×1.75″ neodymium compression driver(44mm voice coil) |
Physical Data
Parameter | Specification |
---|---|

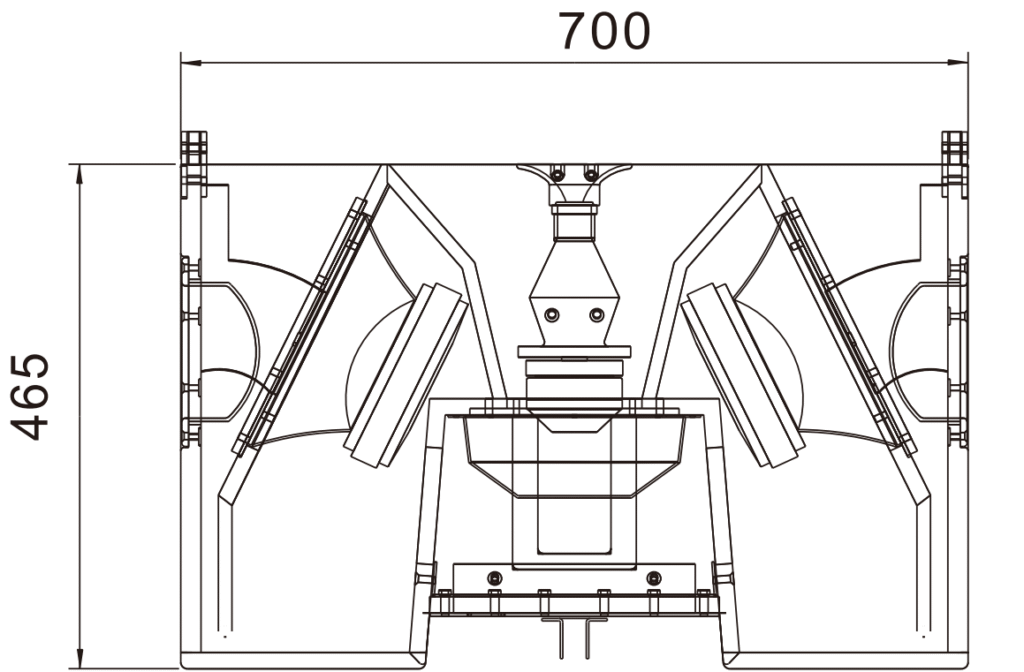

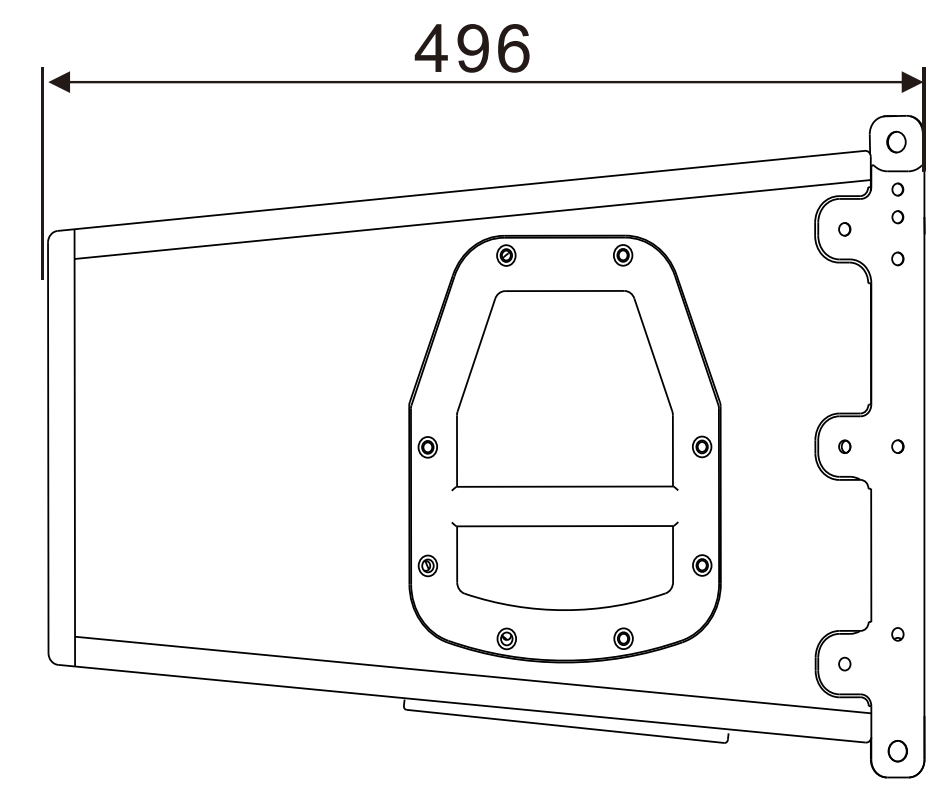

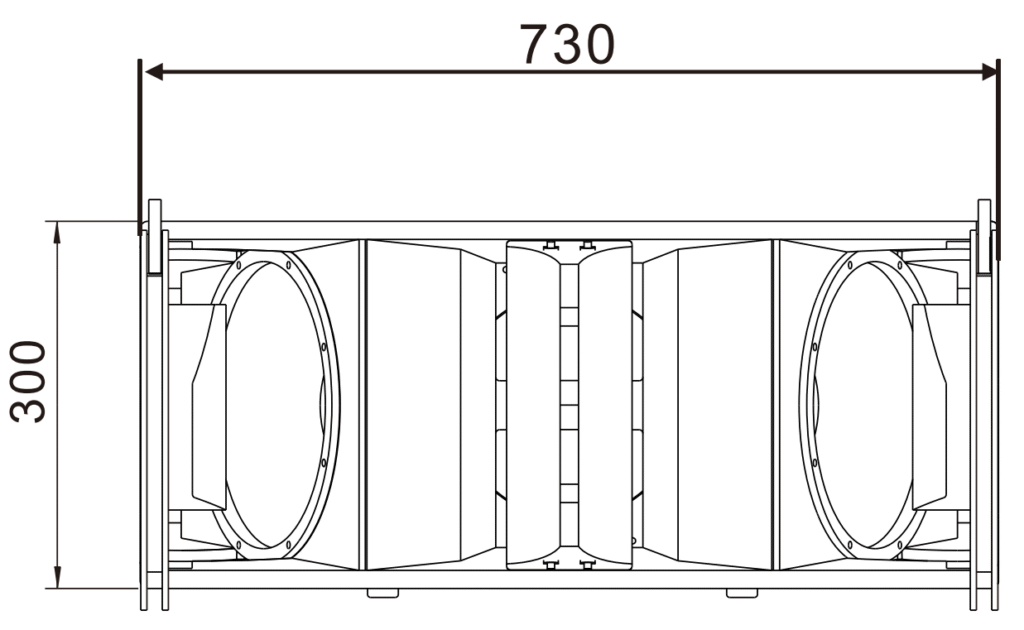

DIMENSIONS(H×W×D) | 303×700×496mm / 12″×28″×20″ |
WEIGHT | 35kg / 77lbs |
CONNECTORS | 2×NL8 connectors |
SPEAKER CABLES | 1+1…LF, 2+2…MF, 3+3…HF, 4+4…N/C |
MATERIALS | 15mm/18mm Baltic birch plywood |
FINISH | Black Polyurea paintings |
GRILLE | Black epoxy mesh grille with acoustically reticulated cloth |
RIGGING | 0-10 degree adjustable |
