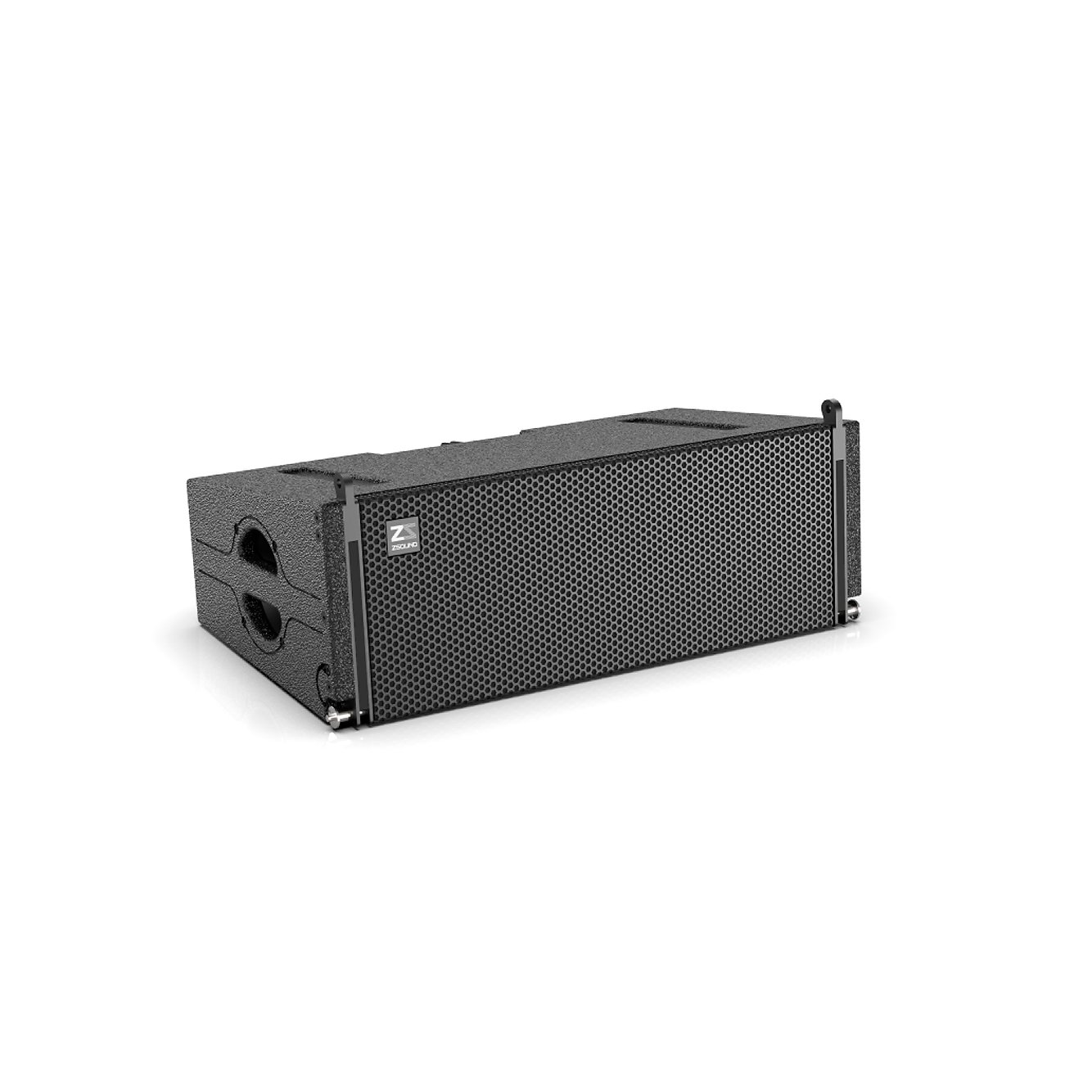

LA208P
Active dual 8 inch line array speaker
- Perfect for touring, theatre, and church use.
- 38mm voice coil woofer for high-transient response.
- Robust build with 135dB peak SPL.
Applications
- Touring performance
- Theatre and multi-function hall
- Church
Feature
- Ideal for touring applications
- 38mm voice coil high-transient response woofer
- High-quality audio performance
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Response | 60Hz–16kHz (±3 dB), 50Hz–18kHz (-10 dB) |
| Nominal Coverage (-6dB) | H 100° × V 10° |
| Channel Gain | CH1 (LOW): 26dB, CH2 (HI): 20dB |
| Power Rating (AES) | 2×500W @ 4Ω + DSP |
| Input Impedance | 18kΩ (balanced) / 9kΩ (unbalanced) |
| THD+N (0.1W to ½ power) | <0.05% |
| Signal-to-Noise Ratio | >98dB |
| CMRR | >50dB |
| Voltage Requirement | 200–240V AC, 50Hz |
| Maximum SPL | 135dB (peak) |
| Drivers | LF: 8″ (50mm voice coil) ferrite woofer HF: 3″ ferrite compression driver |
Physical Data
| Parameter | Value |
|---|---|
| Dimensions (H×W×D) | 287.5 × 730 × 450 mm |
| Weight | 27 kg |
| Connectors | XLR, Neutrik PowerCON |
| Materials | 15mm/18mm Baltic birch plywood |
| Finish | Black polyurea paint |
| Grille | Black epoxy mesh + acoustic cloth |
| Rigging | Three-point rigging system |
