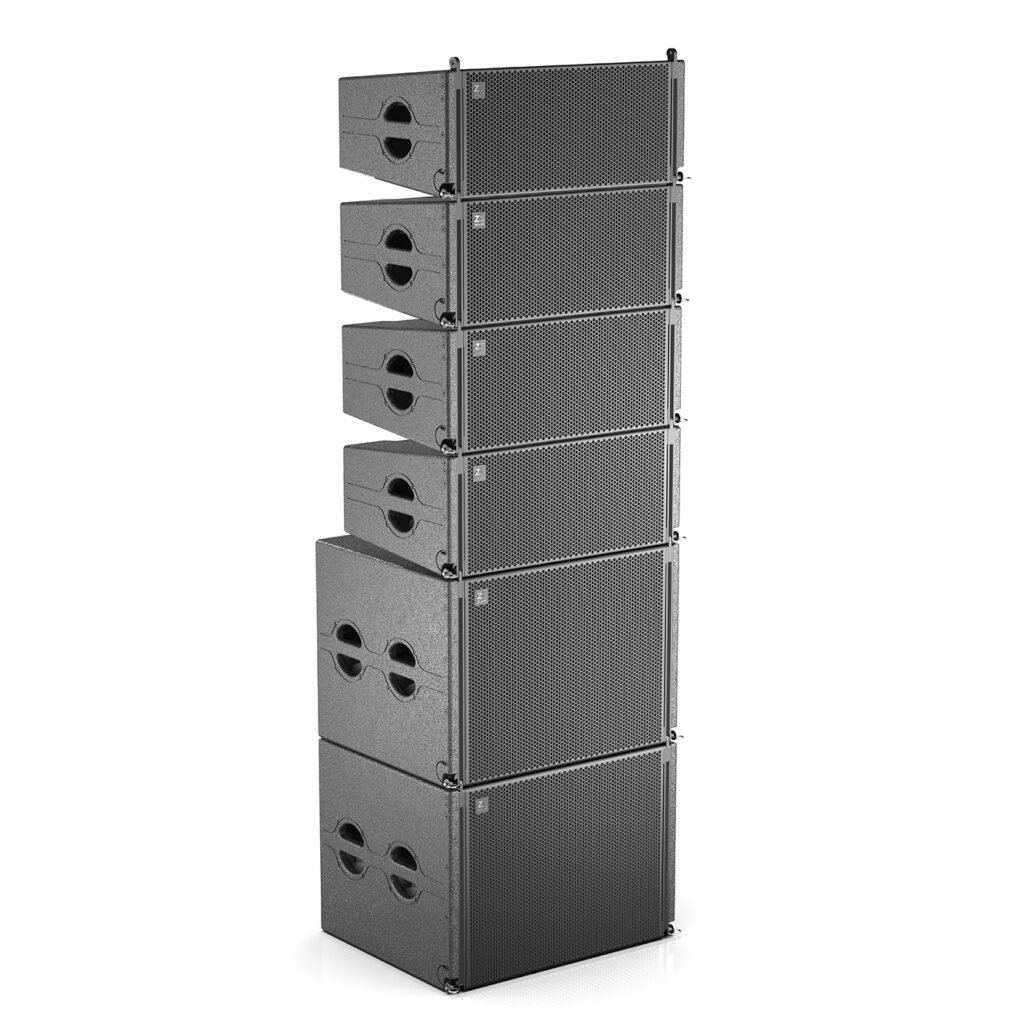

LA210P
Active dual 10 inch line array speaker
- Premium Build & Components
- Versatile Rigging & Coverage
- High SPL & Compact Design
Applications
- Touring performance
- Theatre and multi-function hall
- Church
Feature
- Small and medium sized full range line array speaker
- Presettable angle on the ground, adjustable angle with manual hoister in the air
- Small enclosure, High SPL and volume ratio
Technical Specification
| Parameter | Value |
|---|---|
| FREQUENCY RESPONSE | 50 Hz–16 kHz (±3 dB), 40 Hz–18 kHz (–10 dB) |
| NOMINAL COVERAGE (–6dB) | 100° (H) |
| CHANNEL GAIN | CH1 (LOW): 26dB, CH2 (HI): 20dB |
| POWER RATING (AES) | 2×500W @4Ω + DSP |
| INPUT IMPEDANCE | 18KΩ balanced / 9KΩ unbalanced |
| THD+N (0.1w to 1/2 power) | <0.05% |
| SIGNAL TO NOISE RATIO | >98dB |
| COMMON MODE REJECTION RATIO | >50dB |
| VOLTAGE REQUIREMENT | 200–240VAC 50Hz |
| MAXIMUM SPL | HF: 138 dB SPL peak, LF: 131 dB SPL peak |
| DRIVERS | LF: 2×10″ woofer (75mm voice coil), HF: 1×3″ compression driver |
Physical Data
| Parameter | Value |
|---|---|
| DIMENSIONS (H×W×D) | 303.4 × 730 × 464.5 mm |
| WEIGHT | 37 kg / 82 lbs |
| CONNECTORS | 2×NL4 connectors |
| SPEAKER CABLES | 1+1-…Fullrange, 2+2-…N/C |
| MATERIALS | 15mm / 18mm Baltic birch plywood |
| FINISH | Black Polyurea paintings |
| GRILLE | Black epoxy mesh grille with acoustically reticulated cloth |
| RIGGING | 0–10 degree adjustable |
