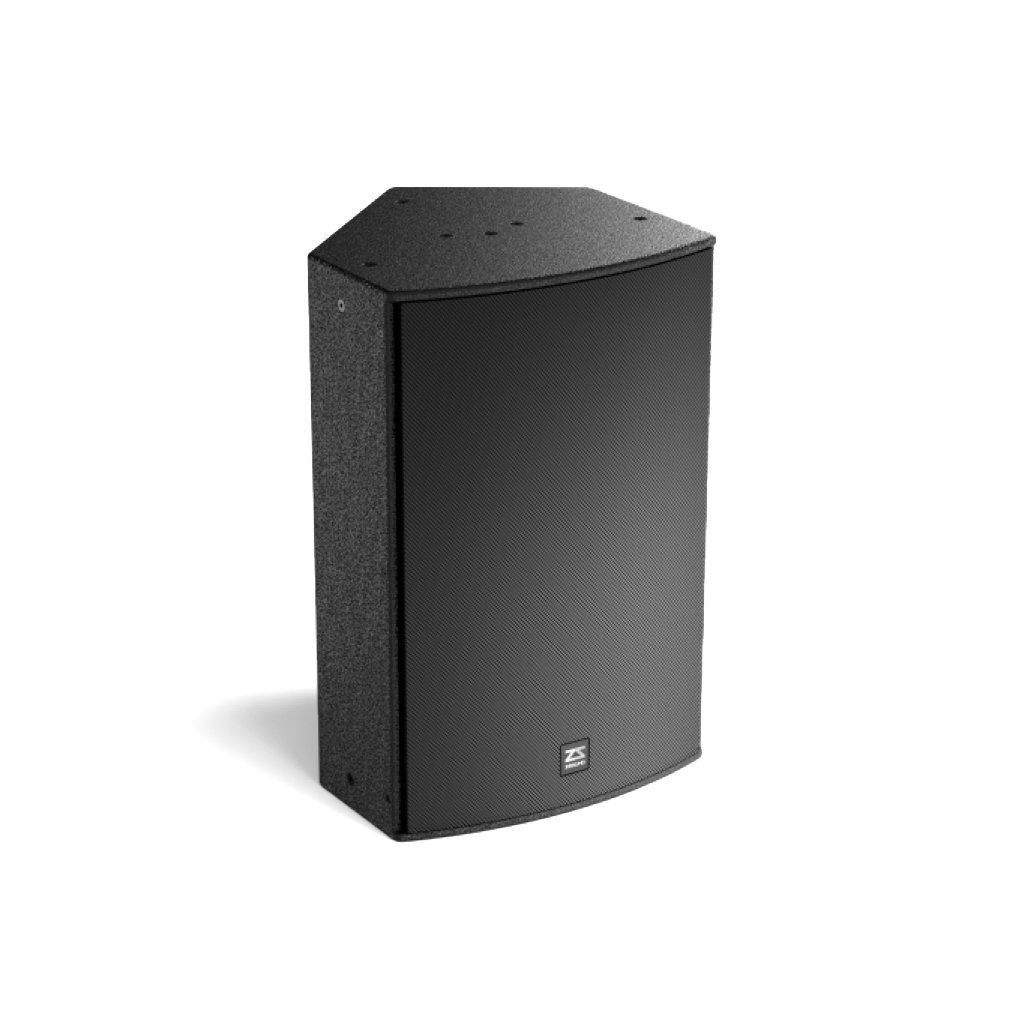

R15P-III
active 15 inch full range speaker
- Self-powered full-range speaker with elastic bass.
- Rotatable 80°×50° horn for versatile sound direction.
- Built-in amplifier and DSP for superior audio control.
Applications
- Small FOH
- Stage Monitor
- Near-Field Sound
Features
- Self-powered full-range speaker
- Elastic bass with long-throw rubber edge LF driver
- Rotatable 80°×50° directivity horn
- Built-in amplifier and DSP
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Response | 50 Hz~18 kHz (±3 dB), 30 Hz~20 kHz (-10dB) |
| Nominal Coverage | 80°×50° |
| Maximum SPL | 123 dB SPL, 129 dB SPL peak |
| Channel Gain | CH1 (LOW): 26 dB, CH2 (HI): 20 dB |
| Power Rating (AES) | 2×500W @ 4Ω + DSP |
| Input Impedance | 18 kΩ (balanced), 9 kΩ (unbalanced) |
| THD+N (0.1W to 1/2 power) | <0.05% |
| Signal-to-Noise Ratio | >98 dB |
| CMRR | >50 dB |
| Voltage Requirement | 200–240V AC, 50 Hz |
| Drivers | 1×15″ woofer (75mm voice coil), 1×3″ compression driver (75mm voice coil) |
Physical Data
| Parameter | Value |
|---|---|
| Dimensions (H×W×D) | 686×456×445 mm (27×18×18 inches) |
| Weight | 31 kg (68 lbs) |
| Rigging | M8 top + 35mm bottom |
| Materials | 15mm/18mm Baltic birch plywood |
| Finish | Black polyurea paint |
| Grille | Black epoxy mesh (acoustically transparent) |
