LC8
8 inch line array speaker
- Ultra-lightweight (6.6kg) for easy portability.
- High SPL and dynamic range for powerful sound.
- Flexible mounting with adjustable angles.
Applications:
- Touring performance
- Club
- Multi-function hall
- Church
Features:
- Smaller than LC10, weighs only 6.6kg
- High SPL with great dynamic headroom

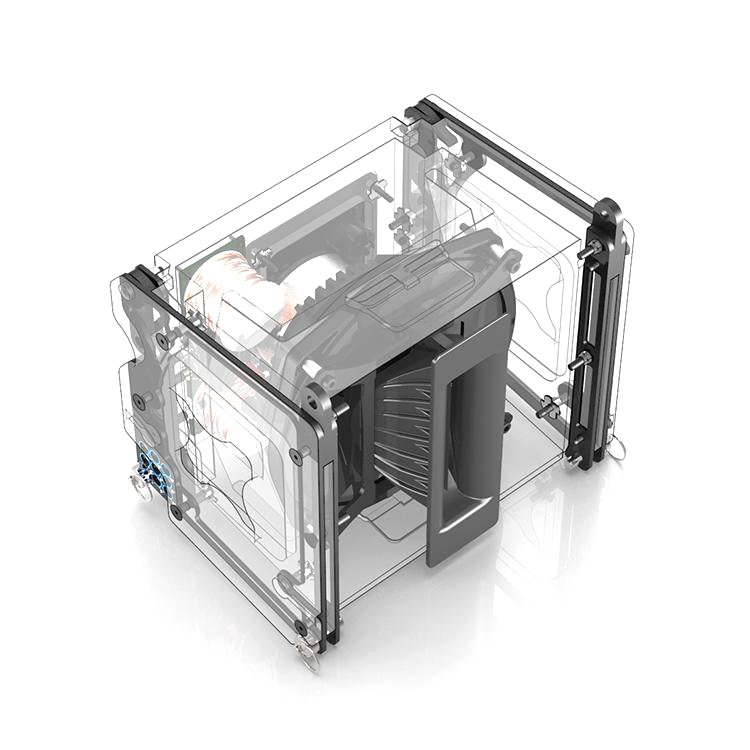

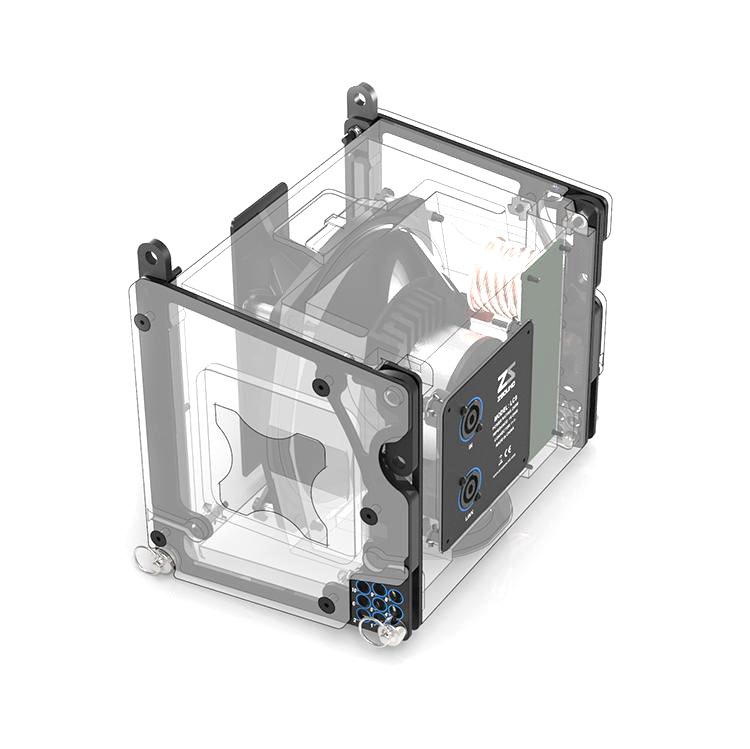

- Compact coaxial design
- Multi-angle adjustable mounting
Technical Specifications:
| Parameter | Details |
|---|---|
| Frequency Response | 100Hz~18kHz (±3dB), 80Hz~20kHz (-10dB) |
| Nominal Coverage | 100° (H) |
| Sensitivity (@1w/1m) | HF: 110 dB SPL, LF: 96 dB SPL |
| Power Rating (AES) | HF: 60W, LF: 250W |
| Nominal Impedance | HF/LF: 16Ω |
| Maximum SPL | HF: 134 dB SPL (peak), LF: 127 dB SPL (peak) |
| Drivers | LF: 1×8″ woofer (51mm voice coil), HF: 1×1.75″ compression driver |
Physical Data:
| Parameter | Details |
|---|---|
| Dimensions (HxWxD) | 215.7 x 264 x 188mm |
| Weight | 6.6kg / 14.5lbs |
| Connectors | 2x NL4 connectors |
| Materials | 9mm/12mm Baltic birch plywood |
| Finish | Black Polyurea paint |
| Grille | Black epoxy mesh with acoustically reticulated cloth |
