PO45K
5 inch line array speaker
- 180° rotatable horn for flexible coverage
- 520W AES power with 130dB peak output
- Subwoofer-ready (PO-SUBK compatible)
Applications
✔ Conference systems – Clear vocal reproduction
✔ Medium-size performances – 130dB peak SPL for live events
Key Features
🔹 Dual-mode subwoofer integration
- Compatible with PO-SUBK (independent/combined modes)
- Bass switching without signal interruption
🔹 Rotatable horn design
- 180° adjustable top column
- 100° horizontal coverage (±50°)
- 60° vertical throw for long-distance projection

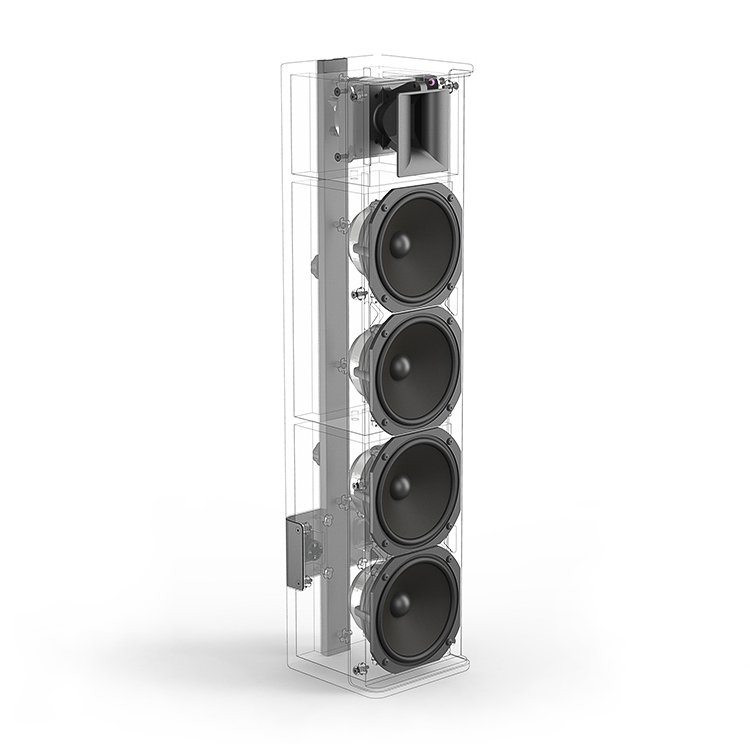

🔹 Pro-grade components
- 4×5″ woofers (45mm voice coils) + 1×1.75″ neodymium driver
- 520W AES power (8Ω)
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Response | 200Hz~18kHz (±3dB) 150Hz~20kHz (-10dB) |
| Coverage (-6dB) | 100°(H) × 45°(V) (Up 15° / Down 30°) |
| Max SPL | 130dB peak |
| Sensitivity | 97dB @1W/1m |
| Power Handling | 520W AES |
| Impedance | 8Ω nominal |
Physical Data
| Attribute | Details |
|---|---|
| Dimensions | 694×156×160mm (H×W×D) |
| Weight | 11kg (24.2lbs) |
| Connectors | 2× NEUTRIK NL4 |
| Cabling | 1+1 wiring configuration |
| Enclosure | 9mm/12mm Baltic birch plywood |
| Finish | Black polyurea coating |
| Grille | Epoxy mesh + acoustic cloth |
| Mounting | 0°~5° adjustable tilt |
