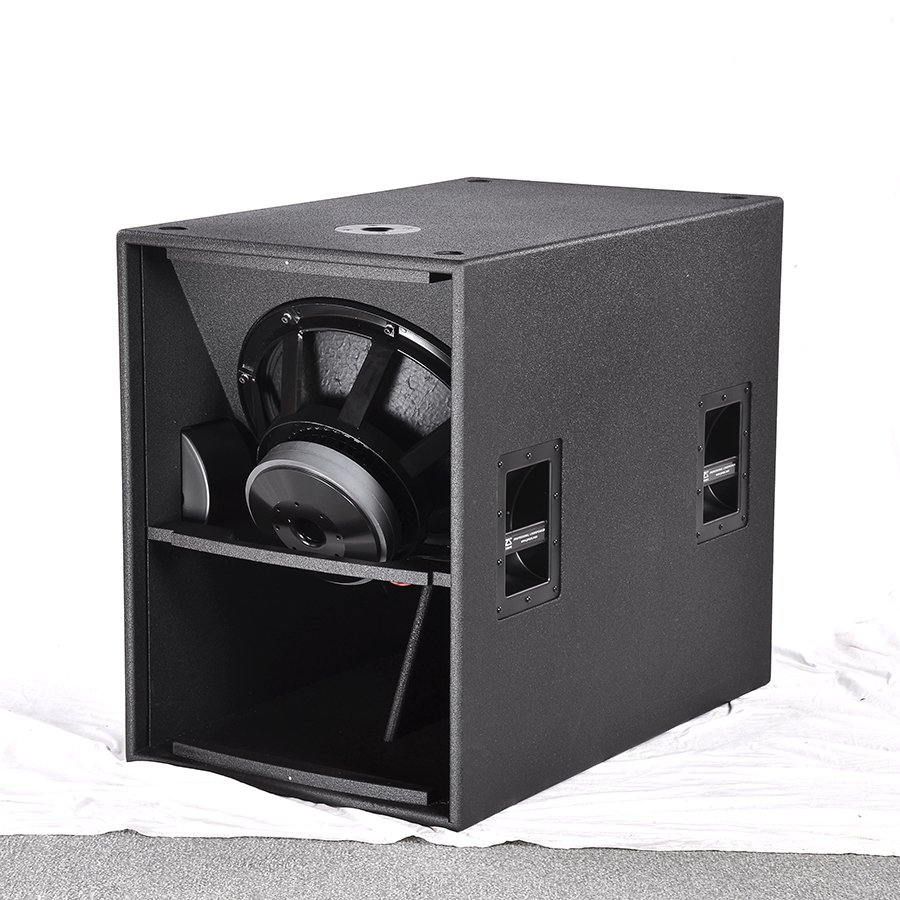

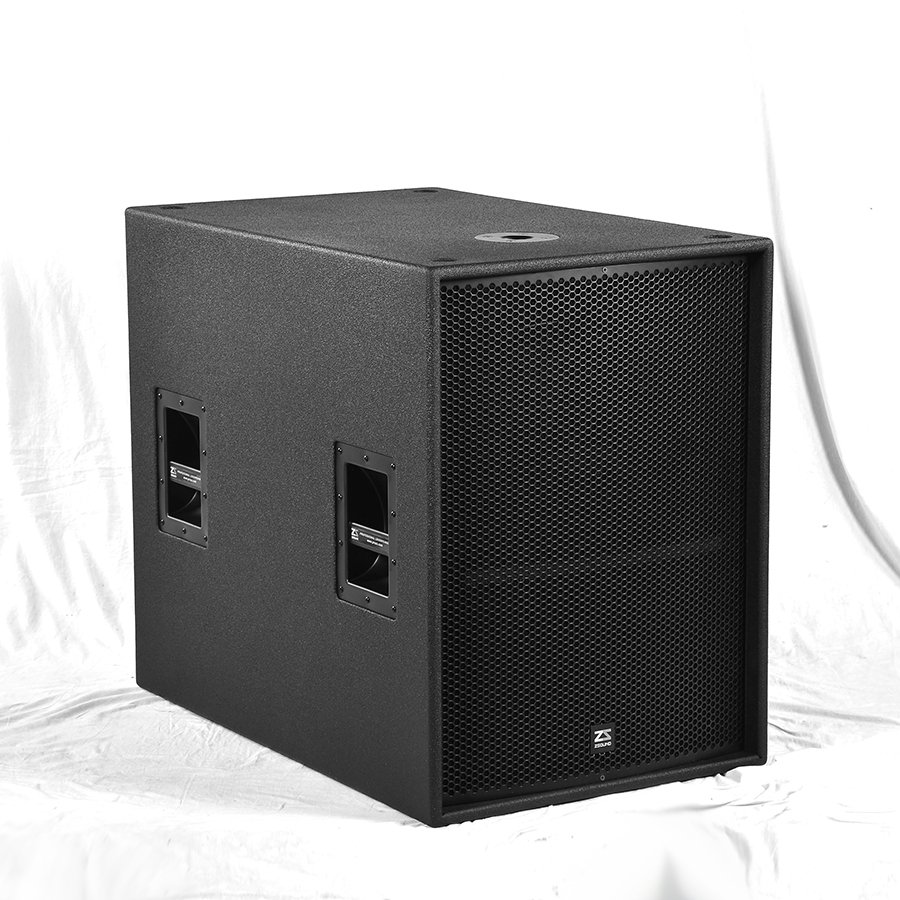

S118H-II
18 subwoofer speaker
- Powerful 1200W AES rating for deep bass.
- 100mm voice coil ensures fast transient response.
- Ideal for touring, stadiums, and theatres.
Applications
- Touring performance
- Stadium
- Theatre
- more 18 subwoofer speaker cases
Features
- 100mm voice coil, high transient response woofer
- Thick and elastic hearing
- Vented, horn preposition design
- more details
Technical Specifications
| Specification | Details |
|---|---|
| Frequency Response | 30 Hz-180 Hz (±3 dB), 25 Hz-250 Hz (-10 dB) |
| Nominal Coverage (±6 dB) | Omnidirectional |
| Sensitivity (@1w/1m) | 100 dB SPL |
| Power Rating (AES) | 1200W |
| Nominal Impedance | 8 ohm |
| Maximum SPL | 130 dB (continuous), 136 dB (peak) |
| Drivers | 1×18” (100mm voice coil) subwoofer |
Physical Data
| Parameter | Details |
|---|---|
| Dimensions (HxWxD) | 750 x 561 x 880mm / 30″x22″x35″ |
| Weight | 48 kg / 106 lbs |
| Connectors | 2 x NL4 connectors |
| Speaker Cables | 1×1- |
| Materials | 18mm, 24mm, and 30mm Baltic birch plywood |
| Finish | Black Polyurea paintings |
| Grille | Black epoxy mesh grille with acoustically reticulated cloth |
| Assembly | 4 handle cups, 4 rigging, M20 jacking |
