LA206S
15 inch subwoofer speaker
- Versatile for touring, theatre, and church use.
- 75mm voice coil woofer for powerful bass.
- High sensitivity (96dB) and 500W power rating.
Applications
- Touring performance
- Theatre and multi-function hall
- Church
- more 15 inch subwoofer speaker cases
Features
- Designed for touring

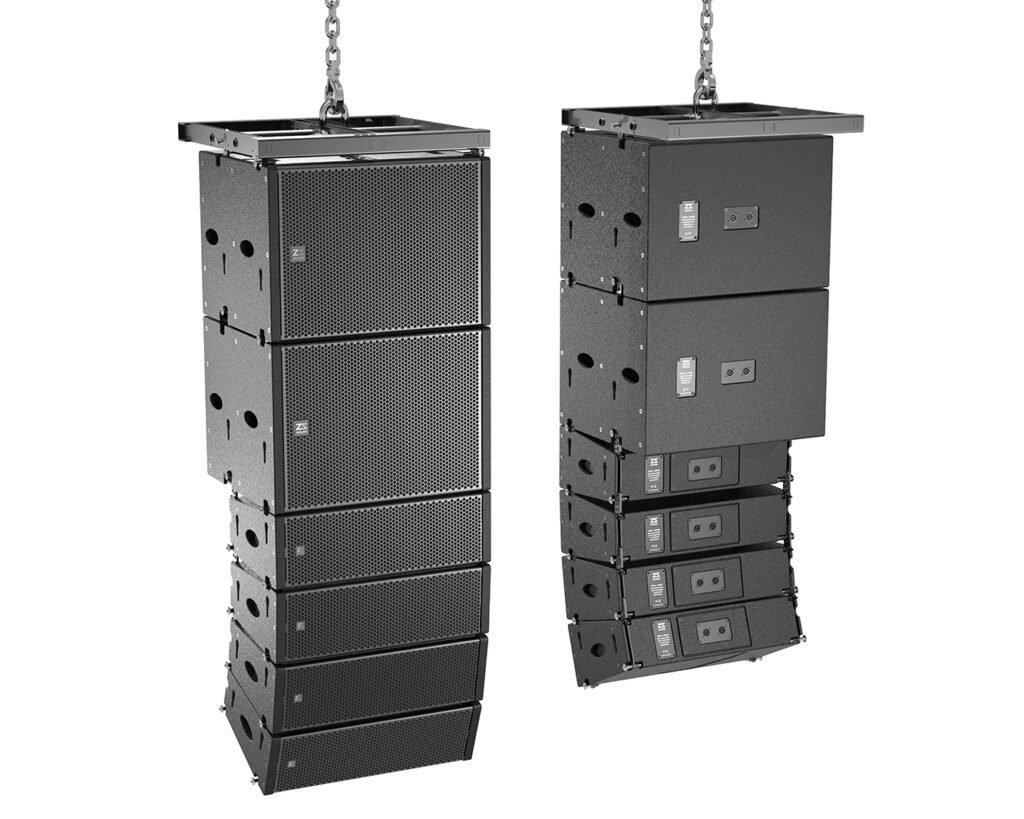

- Pairs with LA206 subwoofer
- 75mm voice coil high-transient response woofer
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Response | 35Hz–150Hz (±3dB), 30Hz–200Hz (-10dB) |
| Nominal Coverage | 150-350 |
| Sensitivity (@1w/1m) | 96 dB SPL |
| Power Rating | 500W |
| Nominal Impedance | 8 ohm |
| Maximum SPL | 123dB SPL, 129dB SPL peak |
| Drivers | 1×15″ (75mm voice coil) neodymium woofer |
Physical Data
| Parameter | Value |
|---|---|
| Dimensions (H×W×D) | 430×598×510mm |
| Weight | 43 kg |
| Connectors | 2× NEUTRIK NL4MP |
| Speaker Cables | 1+1- |
| Materials | 15mm/18mm Baltic birch plywood |
| Finish | Black Polyurea paintings |
| Grille | Black epoxy mesh with acoustic cloth |
| Rigging | Four o’clock degree adjustable |
