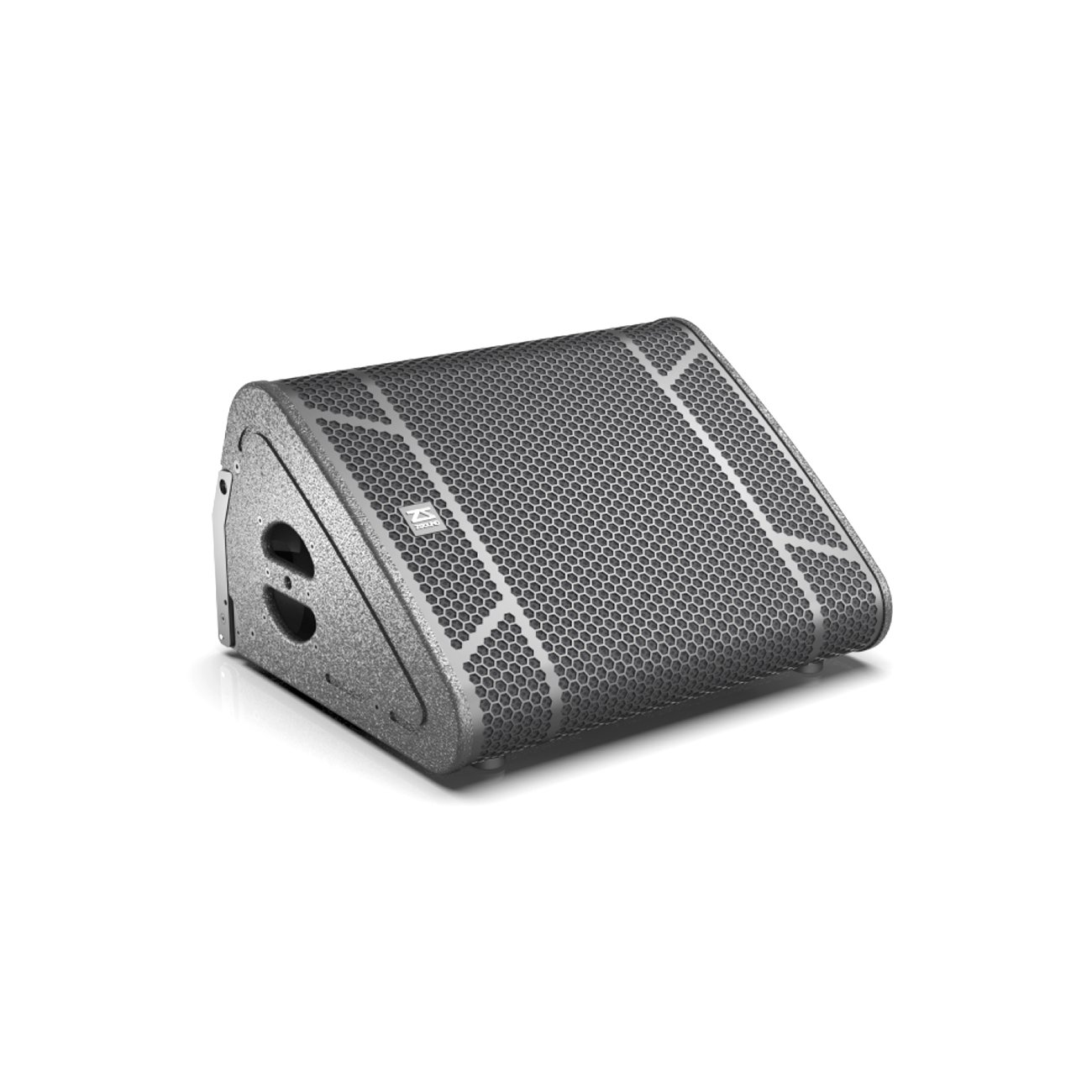

P15M 15 inch Monitor​

​Applications​

• Church
• Stage monitor
• Theatre, Music hall

​Features​

• Multi-functional enclosure structure
• HF & LF coaxial structure
• Rotatable tweeter horn (adjustable directivity angle)

​Technical Specifications​

Parameter	Value
Frequency Response	70 Hz–16 kHz (±3 dB), 50 Hz–18 kHz (-10 dB)
Nominal Coverage (-6dB)	60° (V) × 40° (H)
Monitor Angle	Normal: 34.5° / Built-in risers: 52°
Sensitivity (@1W/1m)	98 dB
Power Rating (AES)	500W
Nominal Impedance	8 ohm
Maximum SPL	140 dB (AES75)
Drivers	LF: 1×15″ neodymium (75mm voice coil) HF: 1×3″ compression driver

​Physical Data​

Parameter	Value
Dimensions (H×W×D)	350 × 600 × 514 mm
Net Weight	22 kg
Connectors	NEUTRIK NL4
Speaker Cables	1+1-
Materials	15mm multi-plywood
Finish	Black polyurea paint
Grille	Black epoxy mesh + foam
Rigging/Support	M8 rigging + 35mm base + angle rod

---
