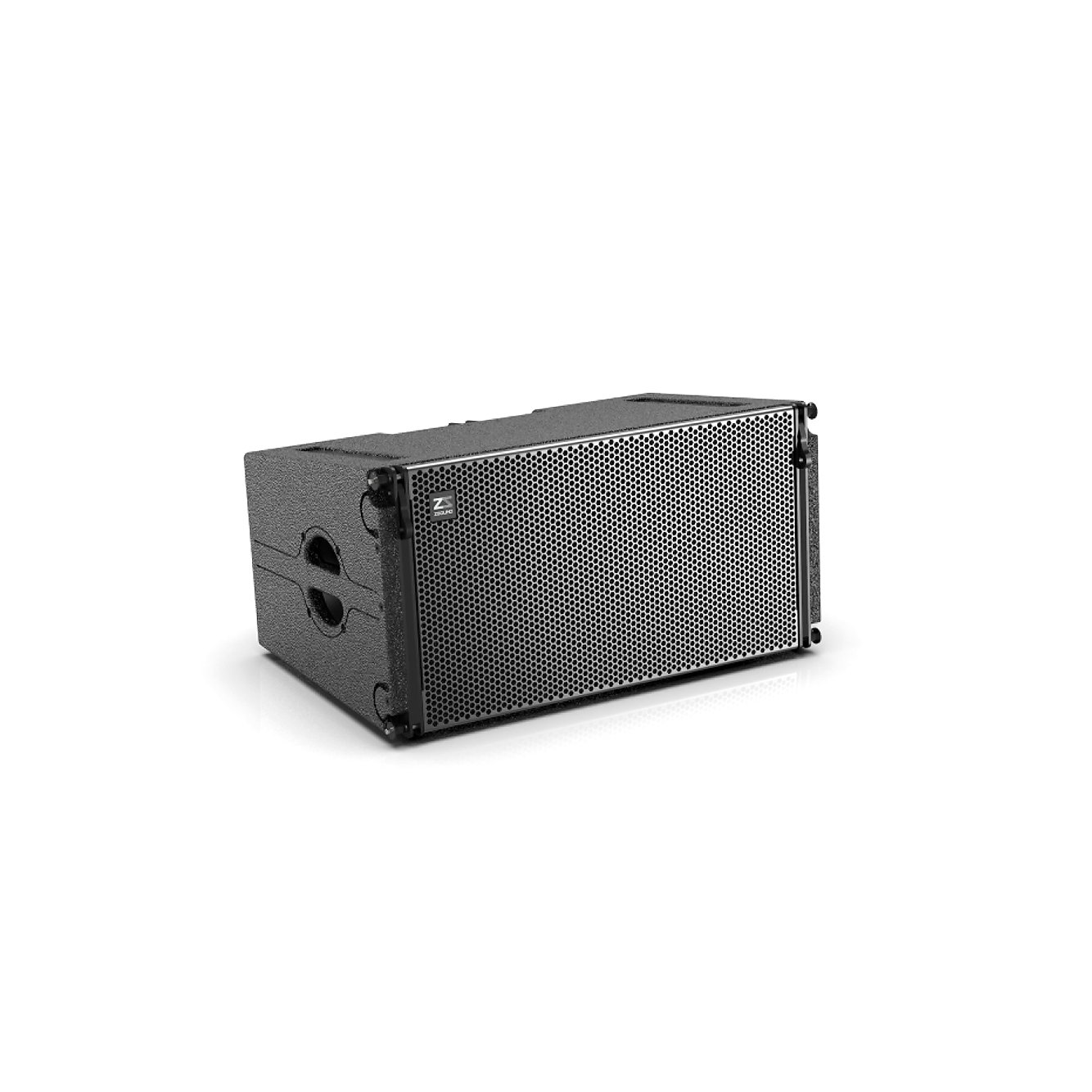

X112
12 inch line array system
- Versatile for touring, stadiums, and theaters.
- Adjustable angles for precise sound coverage.
- High-sensitivity neodymium drivers for powerful output.
Applications
- Touring performance
- Stadium
- Theatre
- more 12 inch line array system cases
Features
- Large-scale, bi-amp, two-way line array
- Presettable angle (ground) / adjustable with manual hoist (air)
- Neodymium high-sensitivity drivers for maximum headroom
Technical Specifications
| Parameter | Details |
|---|---|
| Frequency Response | 60 Hz–16 kHz (±3 dB), 50 Hz–18 kHz (-10 dB) |
| Nominal Coverage | 10° (V), 100° (H) adjustable |
| Sensitivity (@1w/1m) | HF: 112 dB SPL / LF: 96 dB SPL |
| Power Rating (AES) | HF/LF: 80W / 450W |
| Nominal Impedance | HF/LF: 16 ohm |
| Maximum SPL | HF: 137 dB peak / LF: 128 dB peak |
| Drivers | LF: 1×12″ woofer / HF: 1×3″ compression driver |
Physical Data
| Parameter | Details |
|---|---|
| Dimensions (H×W×D) | 387 × 730 × 465 mm |
| Weight | 34 kg |
| Connectors | 2 × NL4 |
| Materials | 18mm/24mm Baltic birch plywood |
| Finish | Black polyurea paint |
| Grille | Black epoxy mesh + acoustically reticulated cloth |
| Rigging Angles | 0°–7.5° adjustable |
