LA110
10 inch line array speakers
- Flexible bi-amp design
for versatile setups. - High-sensitivity neodymium drivers
for powerful sound. - Lightweight & compact,
ideal for touring and installations.
Applications

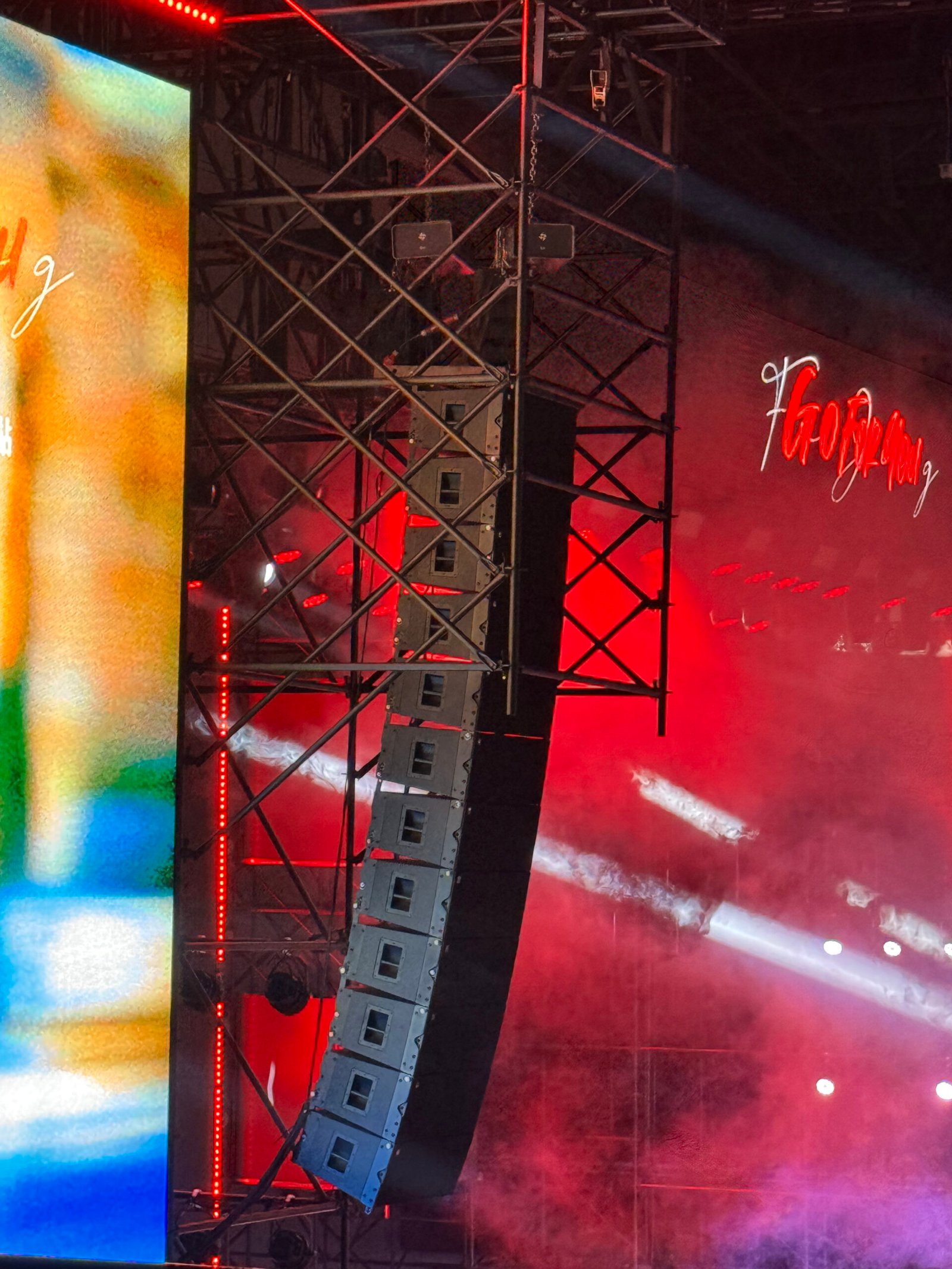

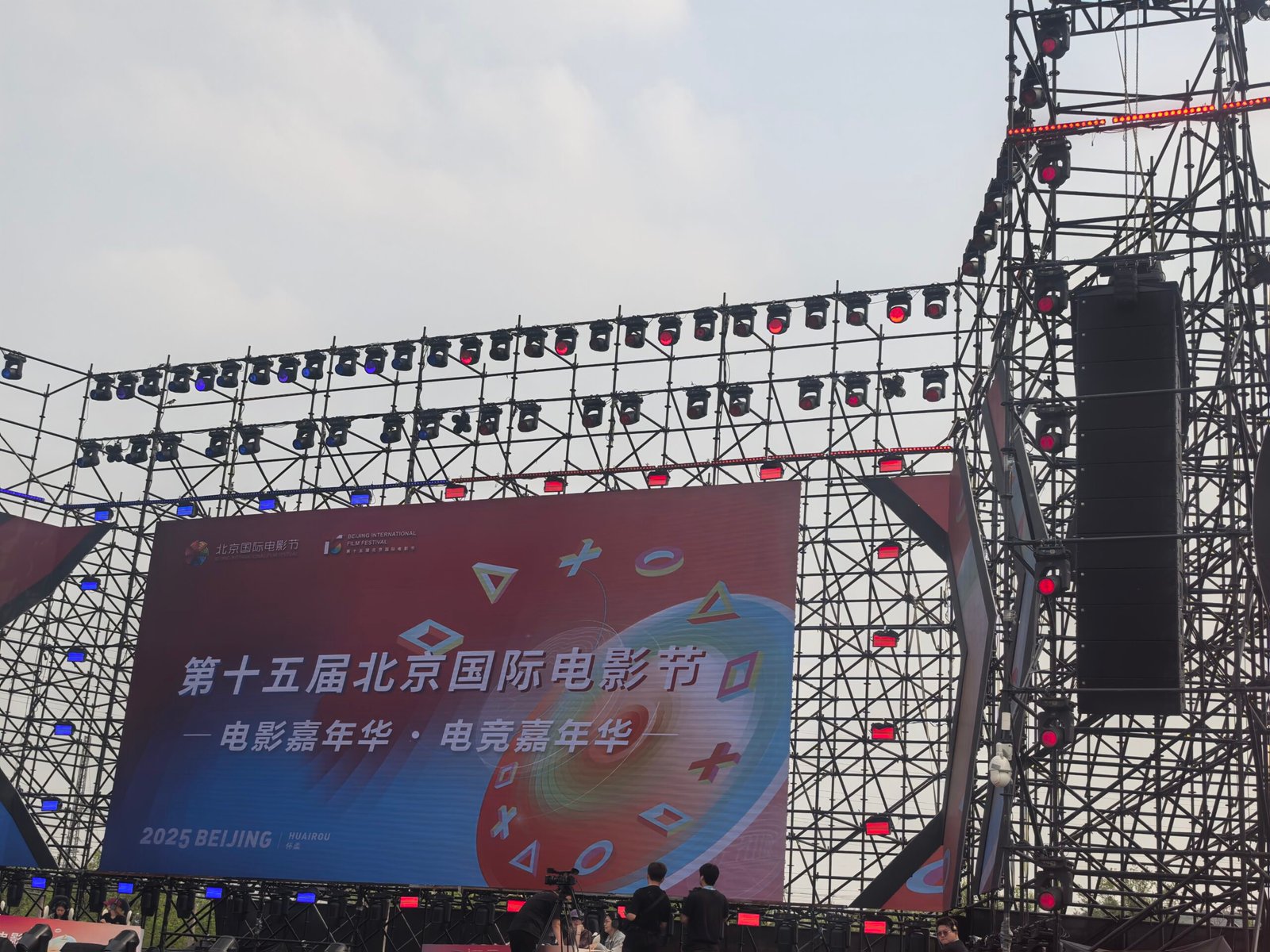

- Touring performance

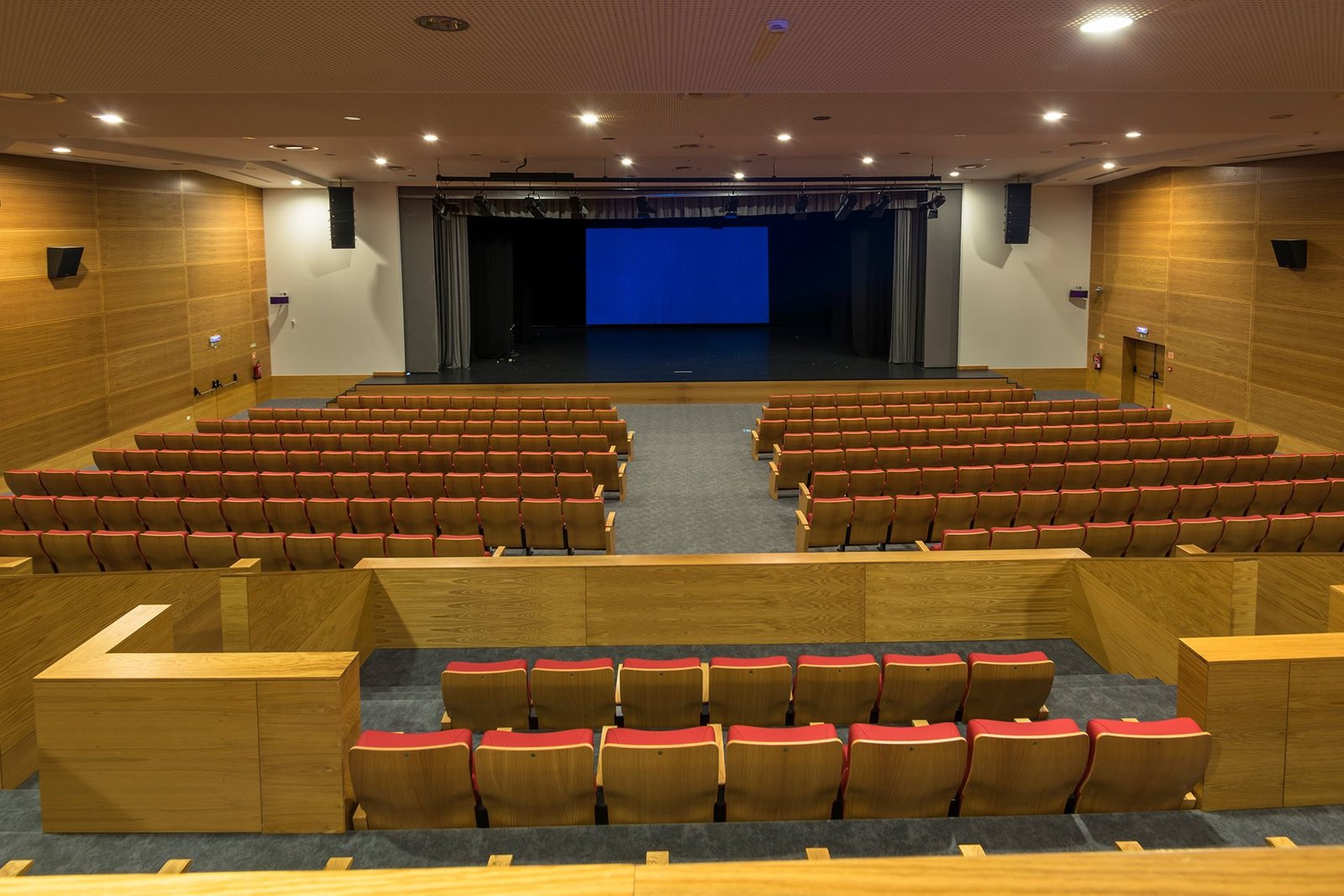

- Theatre and multi-function hall
- Church
- more 10 inch line array speakers cases
Features
- Compact bi-amp system
- Neodymium high-sensitivity driver, maximum headroom
- Small enclosure, lightweight, high SPL-to-Volume ratio
| Technical Specification | Details |
|---|---|
| Frequency Response | 60 Hz – 18 kHz (±3 dB), 50 Hz – 20 kHz (-10 dB) |
| Nominal Coverage (at 1W/1m) | 100° (H) × 10° (V) adjustable |
| Sensitivity (at 1W/1m) | HF: 112 dB (2 kHz – 16 kHz), LF: 103 dB (500 Hz – 2 kHz) |
| Power Rating (AES) | HF: 80W/350W, LF: 80W/350W |
| Nominal Impedance | HF/LF: 16/16 ohm |
| Maximum SPL | HF: 137 dB, LF: 134 dB |
| Drivers | LF: 1×10″ woofer, HF: 1×3″ compression driver |
| Physical Data | Details |
|---|---|
| Dimensions (H×W×D) | 308 × 580 × 390 mm / 12″ × 23″ × 15″ |
| Weight | 22.5 kg / 50 lbs |
| Connectors | 2× NL4 connectors |
| Speaker Cables | 1+1… LF, 2+2… HF |
| Materials | 15 mm, 18 mm Baltic birch plywood |
| Finish | Black polyurea paint |
| Grille | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging | 0°, 1°, 2°, 3°, 4°, 5°, 7.5°, 10° adjustable |
