LC10
10 inch line array speaker
- Ultra-lightweight (13 kg) for easy transport.
- High SPL (137 dB peak) for powerful sound.
- Multi-angle rigging for flexible setups.
Applications
- Touring performance
- Club, multi-function hall
- Church
- more 10 inch line array speaker cases
Features
- The most cost-effective small/medium line array
- Extremely compact:
Small enclosure, only 13 kg - High SPL with great dynamic headroom
- Multi-angle adjustable mounting mode
Technical Specifications
| Parameter | Details |
|---|---|
| Frequency Response | 80 Hz–18 kHz (±3dB), 60 Hz–20 kHz (-10dB) |
| Nominal Coverage | 100° (H) × 10° (V) |
| Sensitivity (@1w/1m) | HF: 112 dB SPL / LF: 96 dB SPL |
| Power Rating (AES) | HF: 80W / LF: 350W |
| Nominal Impedance | HF: 16Ω / LF: 16Ω |
| Maximum SPL | HF: 137 dB peak / LF: 134 dB peak |
| Drivers | LF: 1×10″ woofer (75mm voice coil) / HF: 1×3″ compression driver |
Physical Data
| Parameter | Details |
|---|---|
| Dimensions (H×W×D) | 332 × 360 × 260 mm |
| Weight | 13 kg (28.6 lbs) |
| Connectors | 2×NL4 connectors |
| Materials | 15mm/18mm Baltic birch plywood |
| Finish | Black polyurea paint |
| Grille | Black epoxy mesh with acoustically reticulated cloth |
| Rigging | 0°–10° adjustable mounting |
ZSOUND LC10 Line Array System Powers Greece Cultural Event for 1500+ Attendees

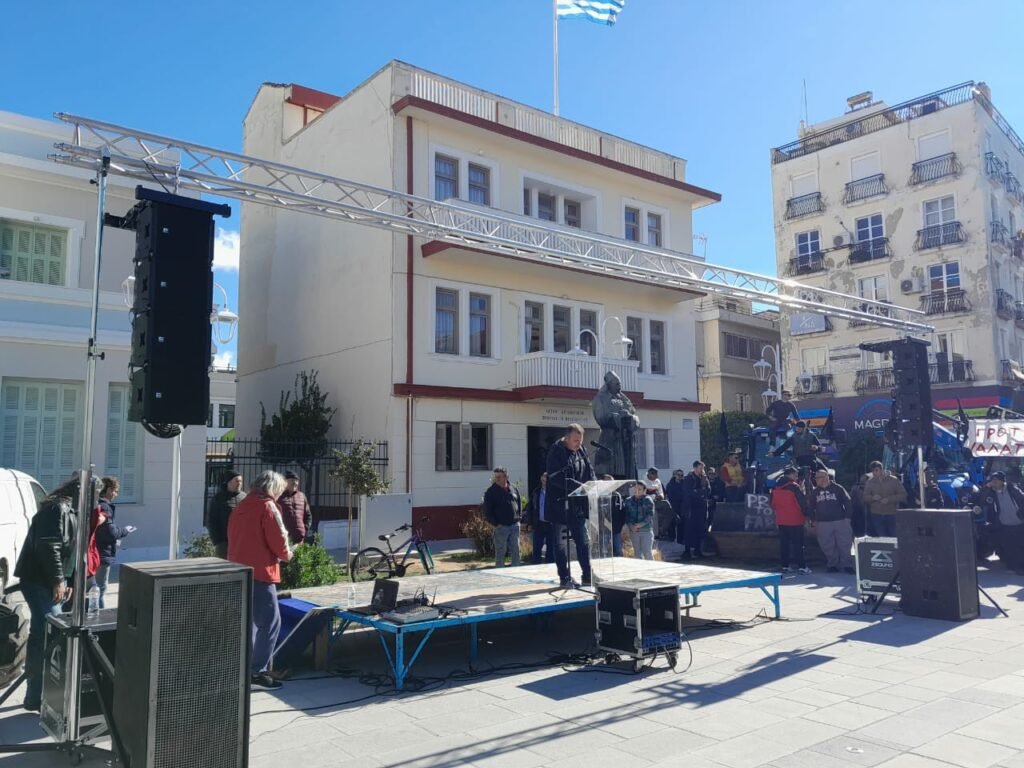

At a large-scale cultural event in Greece, ZSOUND’s LC10 single 10 inch line array speaker served as the core sound reinforcement system. The setup featured 4 LC10 units per side, suspended on both flanks of the stage, delivering precise coverage across a 2,000㎡ outdoor venue for an audience of 1,500–2,000 attendees. Marking its debut in Greece, the LC10 impressed with its compact design (13kg) and high SPL output, perfectly suiting mid-sized outdoor performances and earning high praise from organizers.
LC10 Line Array Speakers Power “OST in My Heart” Concert with ZSOUND Audio
LC10 10 inch line array speaker and PO-SUBK subwoofers by ZSOUND transformed the “OST in my heart” concert with compact design and professional sound quality for indoor events.
LC10 LC10S system in US
Showing far distance reach of the LC10 system, the music and voice were listened to throughout the whole area with clarity.
